MSI MPG Z690 Edge WIFI DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors
Original price was: ₹42,750.00.₹25,849.00Current price is: ₹25,849.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty

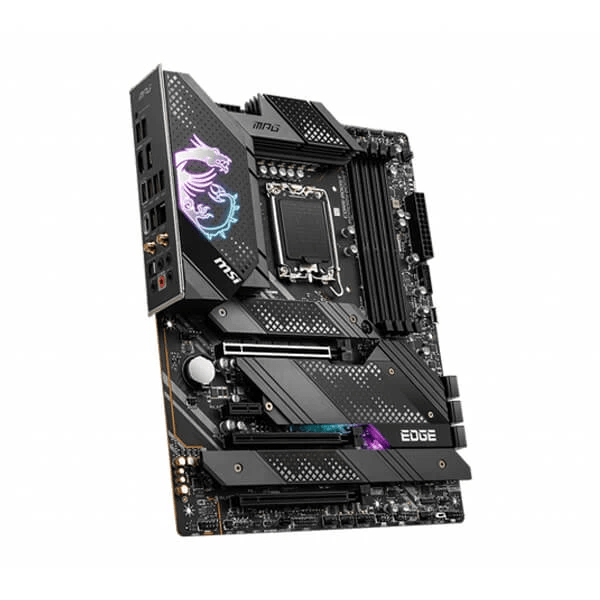

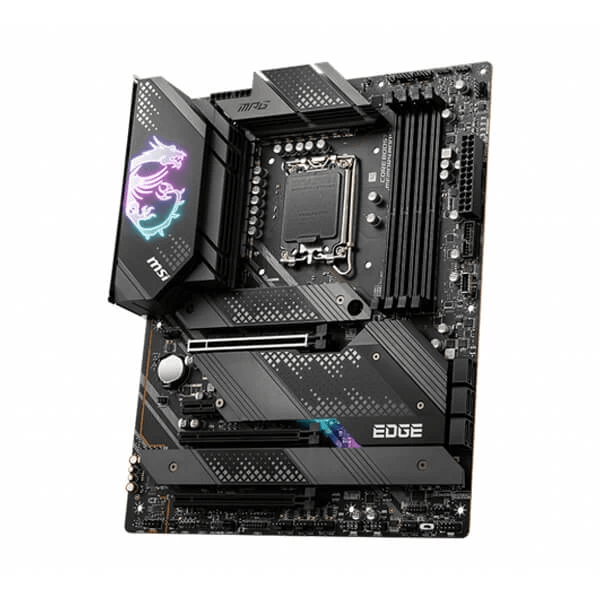

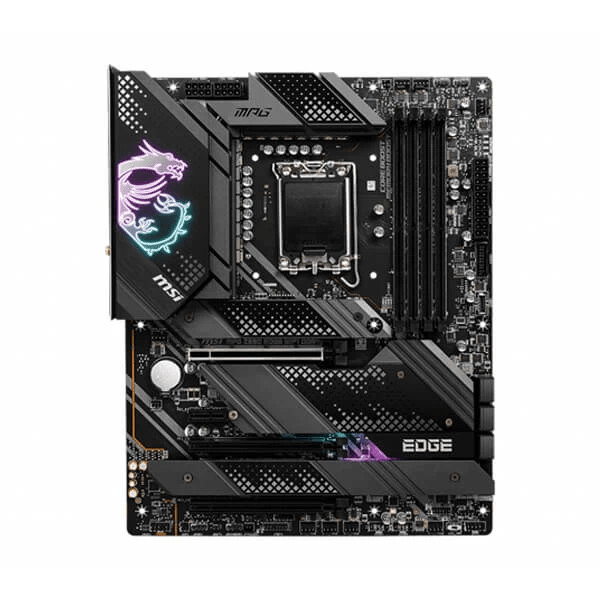

MSI MPG Z690 Edge WIFI DDR4 Intel Motherboard
Features:
MSI MPG Z690 Edge WIFI DDR4
- MPG Z690 Edge Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5200+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

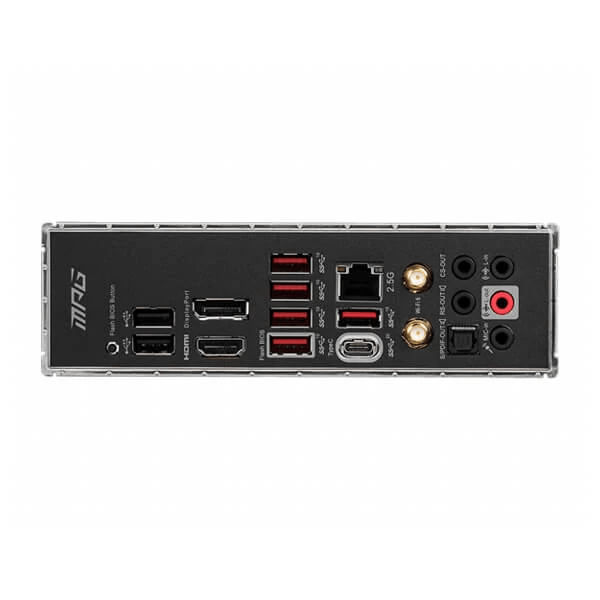

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.
MPG Z690 EDGE WIFI DDR4
Game in Style
For competitive gamers looking for premium 12th Gen Intel Core performance with PCI-e 5.0 x16 graphics card architecture, improved DDR4 memory, and a vast array of M.2 Gen4 storage options, the MSI MPG Z690 EDGE WIFI DDR4 gaming motherboard is perfect for gaming in style.
- Supports Intel Core 12th Gen Processors (LGA 1700)
- 4 x DDR4 DIMMs, Memory Boost (5200MHz+ OC)
- Direct 16+1+1 Phase Power Design with 75A SPS
- 4 x M.2 Gen4 Slots with Shield Frozr
- 1 x PCI-e 5.0 x16 (128GB/s), 2 x PCI-e 3.0 x16 Graphic Card Slots
- Intel I225-V 2.5G LAN
- Wi-Fi 6 with Bluetooth 5.2
- USB 3.2 Gen 2×2 Type-C (20Gbps)
Z690 Chipset, Direct 16+1+1 Phase VRM, Premium Cooling, DDR4 Memory Boost
|
|
|
|
|---|---|---|---|
Supports Intel Core 12th Gen ProcessorsThe MPG Z690 EDGE WIFI DDR4 motherboard supports 12th Gen Intel Core processors.
| Direct 16+1+1 Phase VRM with 75A SPSThe robust VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors:
A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability. | Complete Cooling SolutionVRM Cooling: Features heavy-plated heatsinks, connecting heat pipe, choke and 7W/mK thermal pads for improved thermal dissipation. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. Chipset Cooling: Includes an enlarged heatsink. | 4 x DDR4 Dual Channel (5200+ MHz Overclocked*)Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability. *1DPC 1R Max. overclocking frequency 5200+ MHz, supports Intel XMP. |
PCI-e 5.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6 Connectivity
|
|
|
|
|---|---|---|---|
Fortified PCI-e 5.0 x16MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:
*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity. | Gen4 M.2 ConnectorsThe MPG Z690 EDGE WIFI DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):
*M.2 specifications may vary depending on the CPU installed. | M.2 Shield FrozrEven the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance. | Wi-Fi 6 & Bluetooth 5.22.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output. Wi-Fi 6: Features an Intel Wi-Fi 6 module & Bluetooth 5.2 technology. |
| Brands | MSI |
|---|---|
| Chipset | Z690 |
| Motherboard Size | ATX |
| Socket | LGA 1700 |
| Platform | INTEL |
| Motherboard Series | MSI MPG |
| EAN / UPC Code | 4719072886561 |
| RAM type | DDR4 |
| Warranty | 3 Years |
