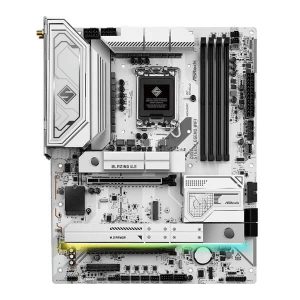

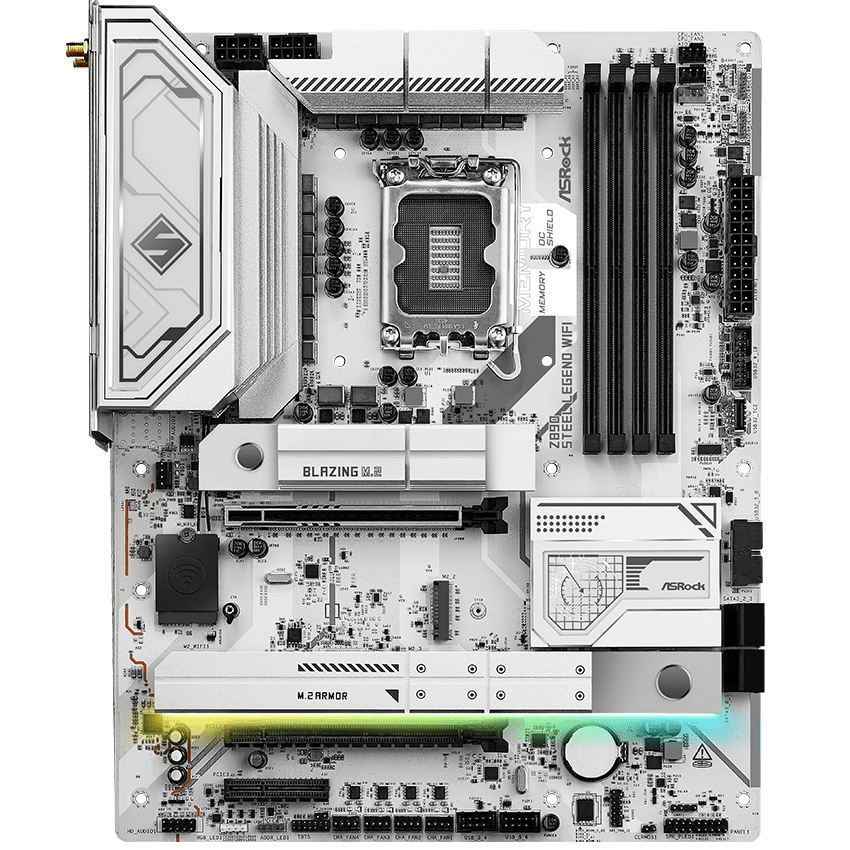

ASRock Z890 Steel Legend WiFi LGA 1851 Intel Z890 SATA 6Gb/s ATX Motherboard

Feature

• Supports Intel Core Ultra Processors (Series 2) (LGA1851)

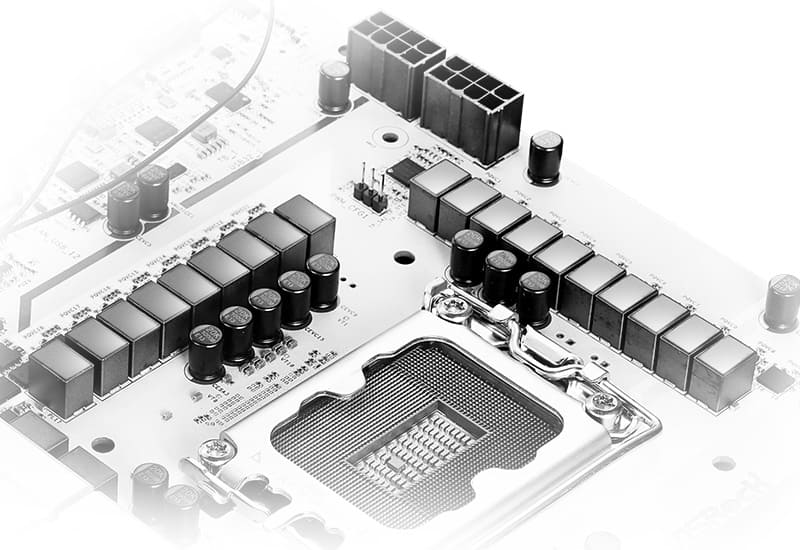

• 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA

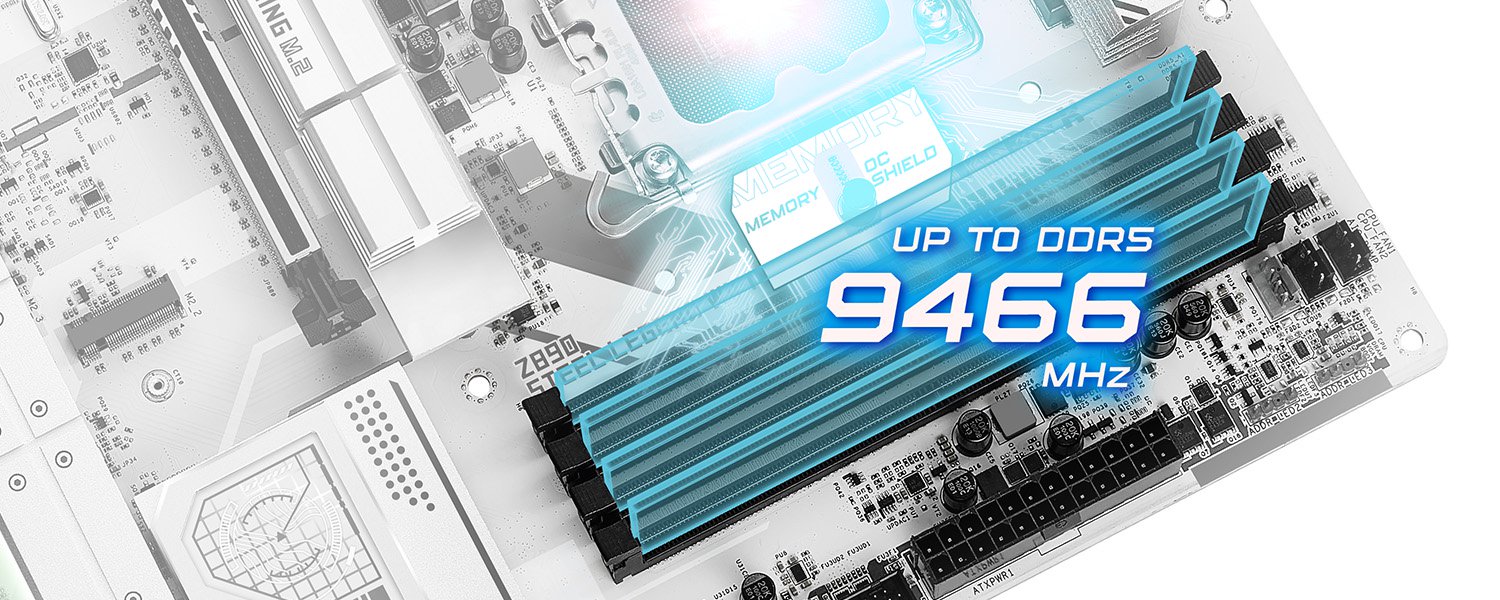

• 4 x DDR5 DIMMs
  Supports Dual Channel, up to 9466+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x4
• Graphics Output Options: 1 HDMI
  2 Thunderbolt 4 Type-C
• Realtek ALC1220 7.1 CH HD Audio Codec
  Nahimic Audio
• 4 SATA3
  1 Blazing M.2 (PCIe Gen5 x4)
  2 Hyper M.2 (PCIe Gen4 x4)
  1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

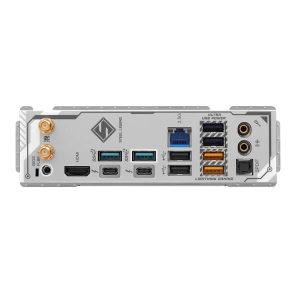

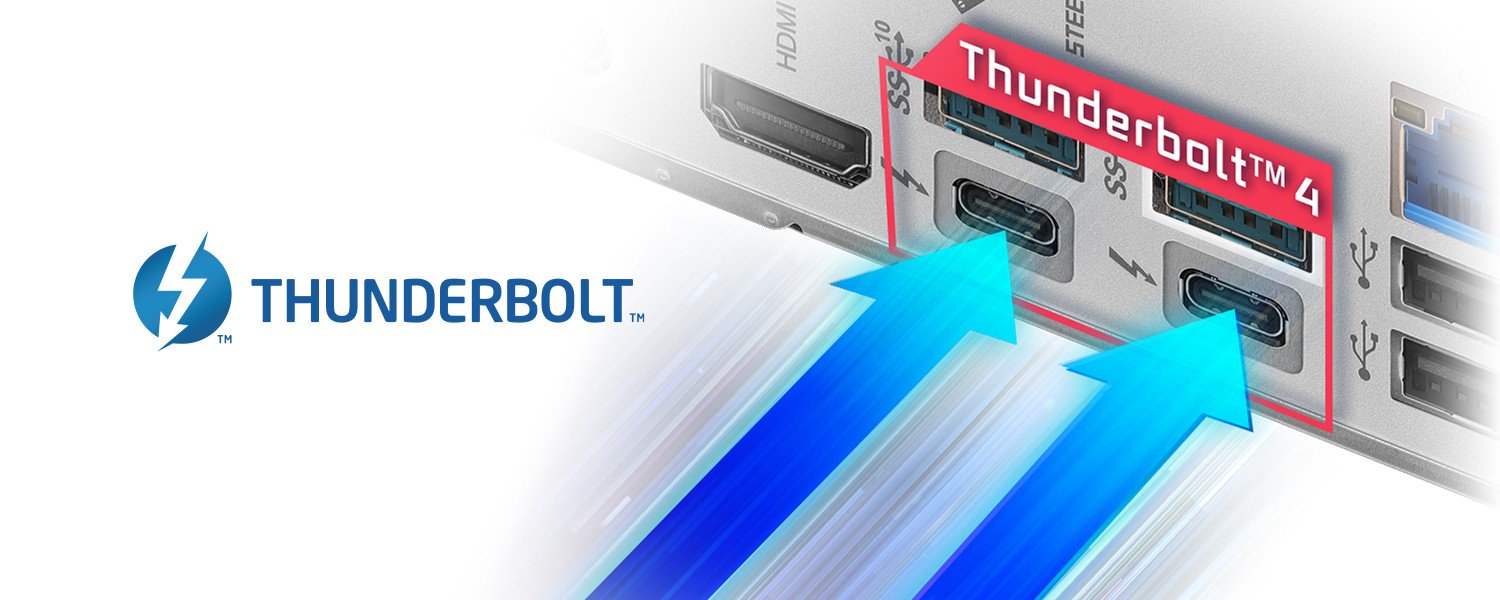

• 2 Thunderbolt 4 Type-C (Rear)
  1 USB 3.2 Gen2x2 Type-C (Front)
  2 USB 3.2 Gen2 Type-A (Rear)
  8 USB 3.2 Gen1 (4 Rear, 4 Front)
  6 USB 2.0 (2 Rear, 4 Front)
• Realtek 2.5G LAN
• Intel 802.11be Wi-Fi 7 + Bluetooth
• Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance

ASRock Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

• Higher Capacitance: Greater charge storage for better support under high loads.
• Lower Ripple: Reduced power output fluctuations, improving quality.
• More Stable Output Current: Stable power supply, minimizing voltage impacts.
• Better Performance & System Stability: Increased reliability and consistent performance.

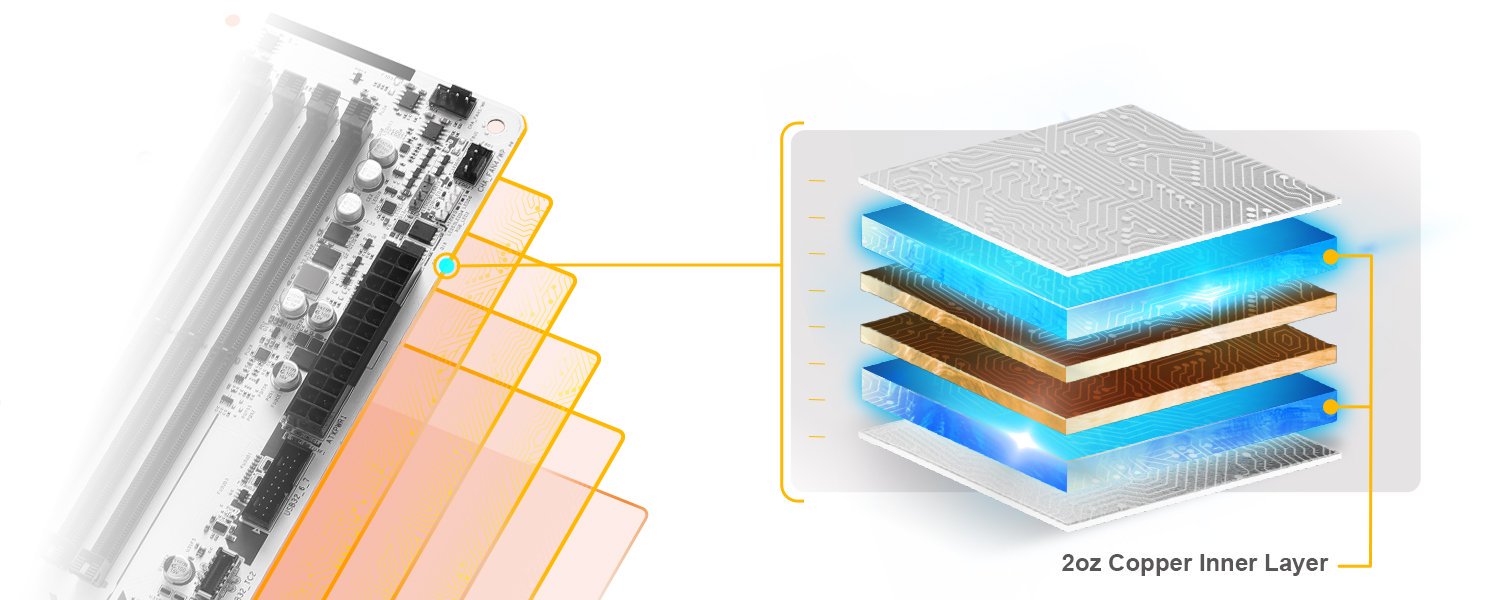

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

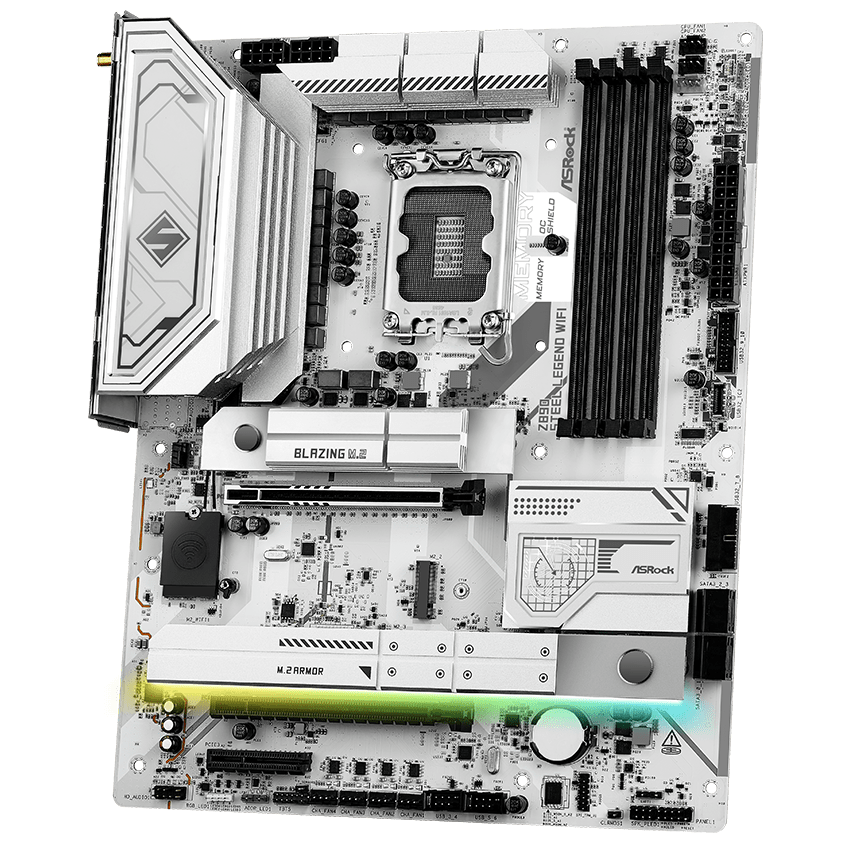

Aluminum Heatsink

The first thing that catches the eye in ASRock Z890 Steel Legend WiFi is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Wi-Fi 7

ASRock Z890 Steel Legend WiFi offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
