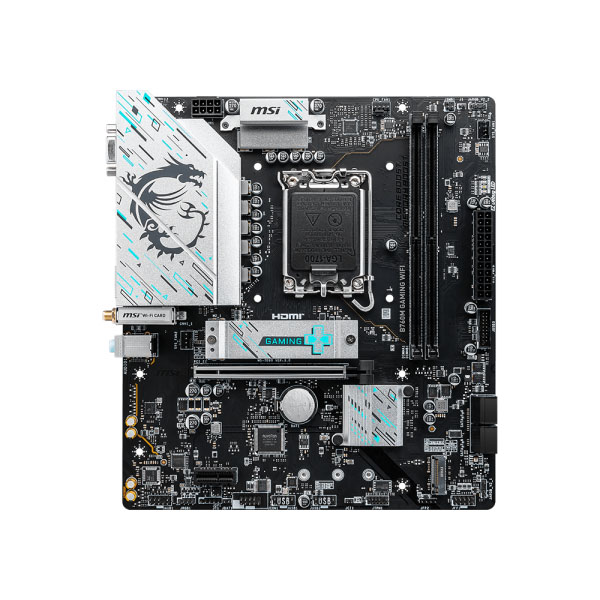

MSI B760M Gaming Wifi DDR5 Motherboard

MSI B760M Gaming Wifi DDR5 Motherboard

Feature

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5-8000+MHz (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 and M.2 Shield Frozr
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

MSI B760M GAMING WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Cooling Overview

1. VRM Heatsink

   The VRM heatsink covers the upper MOS and helps dissipate the heat.

2. M.2 Shield Frozr

   Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

3. 7W/mK Thermal Pad & Additional Choke Pad

   High-quality 7W/mK MOSFET thermal pads ensure stable performance when all cores are running at high speed.

4. Chipset Heatsink

   The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

Lightning Gen 4 PCI-e with Steel Armor

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

The Isolated Analogy Structure for Audio Connectors

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E
• Bluetooth 5.3
• 2.5G LAN
