Gigabyte Z790 AORUS ELITE X AX
Gigabyte Z790 AORUS ELITE X AX
Gigabyte Z790 AORUS ELITE X AX
Gigabyte Z790 AORUS ELITE X AX
Click to enlarge
Gigabyte Z790 AORUS ELITE X AX
Gigabyte Z790 AORUS ELITE X AX
Gigabyte Z790 AORUS ELITE X AX
Gigabyte Z790 AORUS ELITE X AX

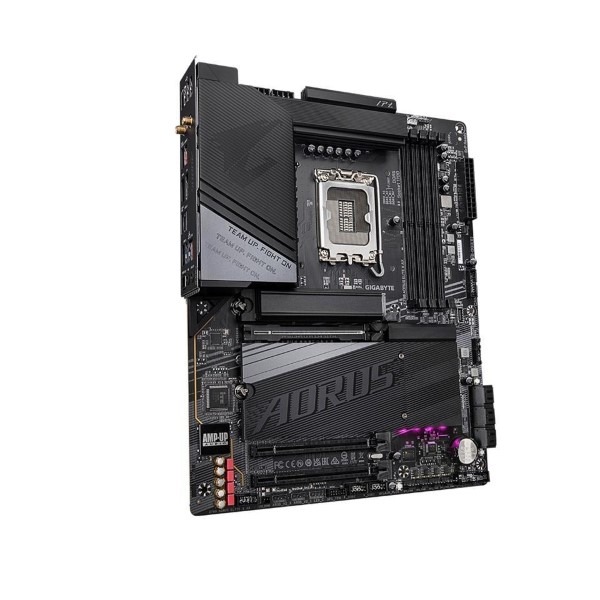

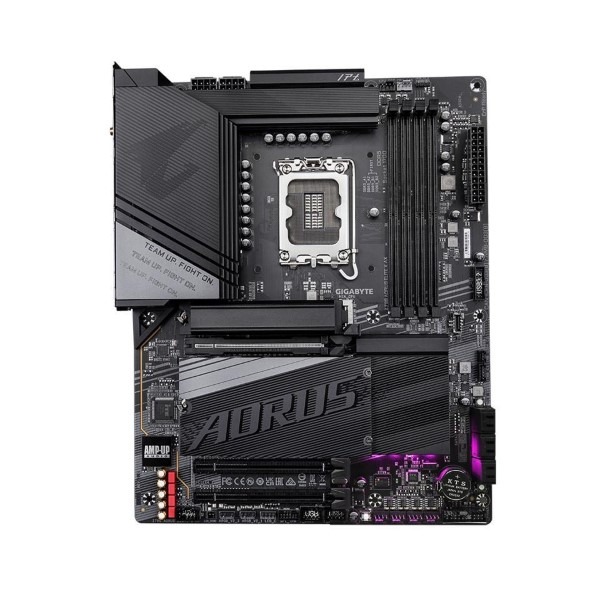

Gigabyte Z790 AORUS ELITE X AX Intel LGA 1700 ATX Motherboard Supports Intel 12th, 13th & 14th Gen Processors

Gigabyte

Original price was: ₹52,499.00.Current price is: ₹29,149.00. (Inclusive of GST)

Add to wishlist
Compare
SKU: Z790 AORUS ELITE X AX Categories: , Tags: , , , , , , ,

Fast Shipping

100% Genuine Product

Whatsapp Support

Brand Warranty

Description

GIGABYTE Z790 AORUS ELITE X AX LGA 1700(14th,13th,12th Gen) Intel Z790 X ATX Motherboard with DDR5, 4 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Features

  • Supports Intel® Core™ 14th and 13th processors
  • Digital twin 16+1+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
  • PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • EZ-Latch Plus：M.2 slots with quick release design
  • UC BIOS：User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage：4*PCIe 4.0 x4 M.2 slots
  • Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
  • Extended Connectivity：DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
  • Precision Audio：ALC1220 & Audiophile Grade Capacitors



Performance

Twin Digital VRM design leverages 16 VCORE phases and 70A Power Stage to ensure electrical throughput that can handle Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 8266 MHz for enhanced multitasking and rendering performance.

Power Delivery

The Z790 AORUS ELITE X AX features a twin 16+1+2 phases digital VRM solution with 70A Smart Power Stages. This means that the motherboard has 31 power phases in total, which is more than enough to power even the most demanding processors. The Smart Power Stages are also more efficient than traditional MOSFETs, which helps to reduce heat output and improve overall performance.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling, the AORUS ELITE X AX’s fully covered VRM Thermal Armor Advanced heat sink, M.2 Thermal Guard L, 8-layer copper PCB, 7 W/mK Thermal Pad, and 8mm heatpipe work together to ensure that onboard components are safe under heavy loads. Smart Fan6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Networking

The Z790 AORUS ELITE X AX features a 2.5GbE LAN port and Wi-Fi 7 with Ultra-high gain antenna. The 2.5GbE LAN port provides up to 2.5x faster speeds than standard Gigabit Ethernet ports, while the Wi-Fi 7 provides up to 3.2x faster speeds than Wi-Fi 6. The Ultra-high gain antenna helps to improve signal strength and range.

Front Panel USB-C Connector

The USB 3.2 Gen 2 port has a throughput up to 10 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

Personalization & Customization

With an array of RGB headers, you can use GIGABYTE’s RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.

Ultra Durable

Sporting an easy DIY design, the AORUS ELITE X AX provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch provides quick access to your M.2 storage drives and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor. You also get PCIe UD Slot X, M.2 UD Slot PG4, and UD Power Connector, adding more flexibility and utility to your system.
CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • L3 cache varies with CPU
ChipsetIntel® Z790 Express Chipset
Memory
  • Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:

  • 1 x HDMI port, supporting a maximum resolution

Support for HDMI 2.0 version and HDCP 2.3.

  • 1 x DisplayPort, supporting a maximum resolution

Support for DisplayPort 1.2 version and HDCP 2.3

Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntel® Wi-Fi 6E AX211

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion SlotsCPU:

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:

  • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage InterfaceCPU:

  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
  • 6 x SATA 6Gb/s connectors
USBChipset:

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper

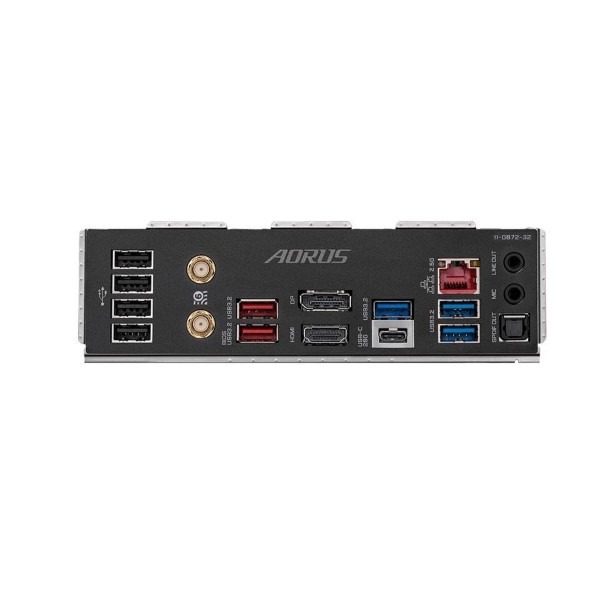

Back Panel Connectors1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorATX Form Factor; 30.5cm x 24.4cm
Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.
Additional information
Weight2.180 kg
Dimensions33.5 × 27 × 8 cm
BrandsGIGABYTE
colorBlack
ChipsetZ790
RAM typeDDR5
Motherboard SeriesGigabyte Aorus
Motherboard SizeATX
Product Typegaming
SocketLGA 1700
Warranty3 Years
Ean Code4719331849467
