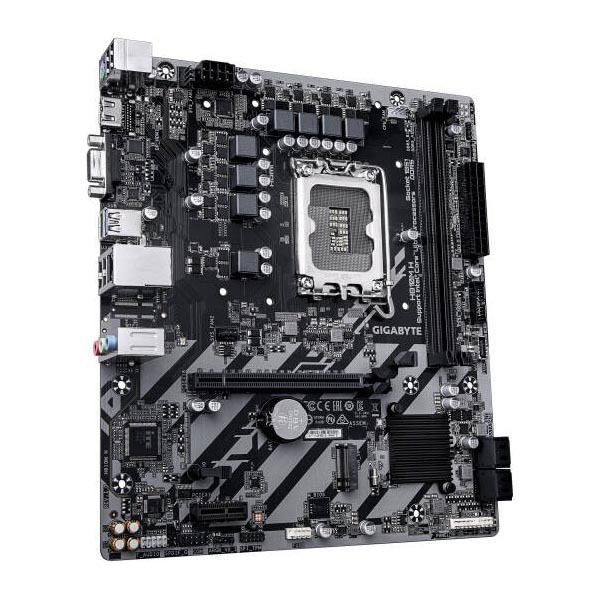

GIGABYTE H810M H LGA 1851 Micro ATX Motherboard
Original price was: ₹18,599.00.₹8,760.00Current price is: ₹8,760.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Description
GIGABYTE H810M H LGA 1851 Micro ATX Motherboard, Intel H810 Chipset, 2x DIMM DDR5 Slots, Up to 128GB Max Memory, 1x PCI Express x16 Slot, 1x M.2 Connector | H810M-H
Feature
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: HDMI
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
4+1+2 Phases Hybrid PWM
Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
Smart Fan 6
Cool. Quiet. Customized.
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
GbE LAN
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
| CPU | LGA1851, Intel® Core™ Ultra Processors |
| Chipset | Intel® H810 Express Chipset |
| Memory | DDR5 6400/5600 MT/s, 2x DIMM, 128GB max, XMP |
| Onboard Graphics | HDMI 2.1 (4096×2160@60Hz), D-Sub (1920×1200@60Hz) |
| Audio | Realtek® Audio CODEC, 7.1-channel, S/PDIF Out |
| LAN | Realtek® GbE LAN (1 Gbps) |
| Expansion Slots | 1x PCIe 4.0 x16 (GPU/NVMe), 1x PCIe 3.0 x1 |
| Storage | 1x M.2 PCIe 4.0, 4x SATA 6Gb/s, RAID 0/1/5/10 |
| USB Ports | 1x USB-C 3.2, 3x USB 3.2, 7x USB 2.0 |
| Internal I/O | 24-pin ATX, 8-pin CPU, 2x RGB Gen2, 2x fan headers |

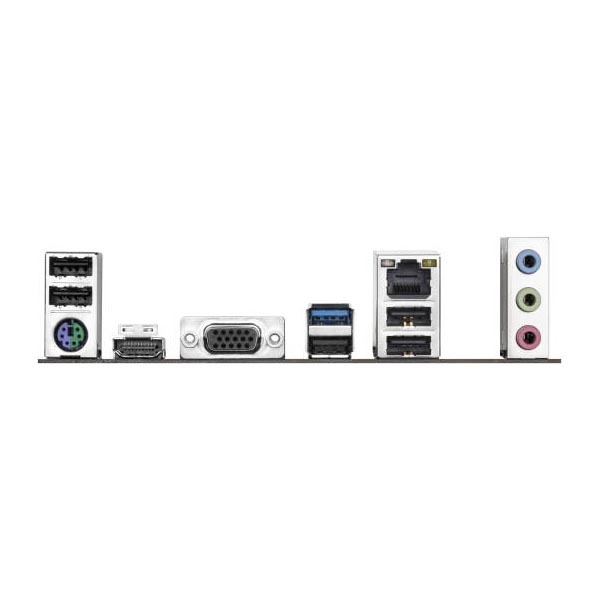

| Back Panel I/O | HDMI, D-Sub, 1x USB 3.2, 5x USB 2.0, LAN, audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temp, fan speed, water cooling detection |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Smart Backup |
| Bundled Software | Norton® Internet Security, LAN management |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 21.5cm |
Additional information
| Weight | 0.740 kg |
|---|---|
| Dimensions | 21.49 × 24.41 × 3.51 cm |
| Brands | GIGABYTE |
| color | Black |
| Product Type | Normal |
| Chipset | H810 |
| RAM type | DDR5 |
| Motherboard Size | mATX |
| Socket | LGA 1851 |
| Warranty | 3 Years |
| Ean Code | 4719331869540 |
