Description

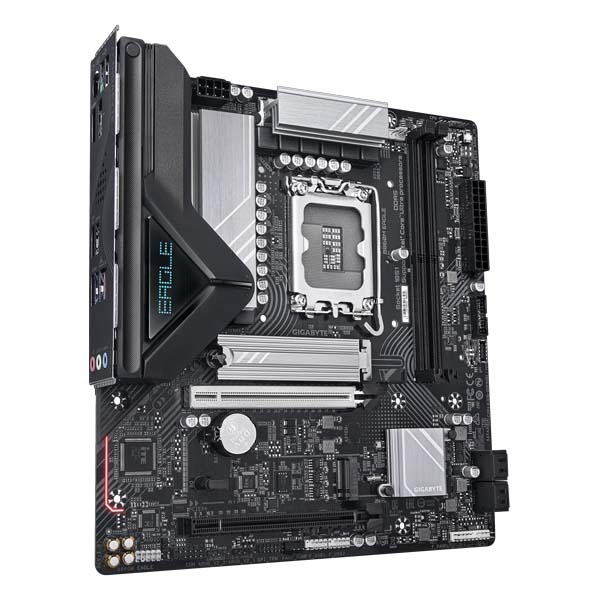

GIGABYTE B860M Eagle DDR5 Motherboard – Intel Core Ultra CPUs, 6+1+2+1 Phase VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1
Feature
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 6+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch Plus : M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : HDMI, DisplayPort
Effortlessly Boost Your DDR5 Memory Speed
DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.
Digital VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
| CPU Socket | LGA1851 (Supports Intel® Core™ Ultra Processors) |
| Chipset | Intel® B860 Express |
| Memory Support | DDR5 5600–9066 MT/s (OC), up to 128 GB (2× DDR5 DIMM) |
| ECC Support | ECC/Non-ECC Unbuffered DIMMs (non-ECC mode only) |
| Memory Architecture | Dual Channel, XMP Support |
| Integrated Graphics | Intel® HD Graphics<br>HDMI 2.1 (4096×2160@60Hz), DisplayPort 2.1 (3840×2160@144Hz) |
| Audio | Realtek® Audio CODEC, 2/4/5.1/7.1 channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE |
| Expansion Slots | 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (Chipset) |
| Storage Interface | CPU: 1× M.2 (PCIe 5.0 x4/x2)<br>Chipset: 1× M.2 (PCIe 4.0 x4/x2), 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (SATA Only) |
| USB Ports | 1× USB-C 3.2 Gen 1 (internal), 5× USB 3.2 Gen 1 (3 rear, 2 internal), 7× USB 2.0 (3 rear, 4 internal) |
| Internal Connectors | 24-pin + 8-pin power, CPU/system/pump fan headers, 3× ARGB headers, front panel, audio, S/PDIF, TPM, serial, Q-Flash Plus, Reset & Clear CMOS |

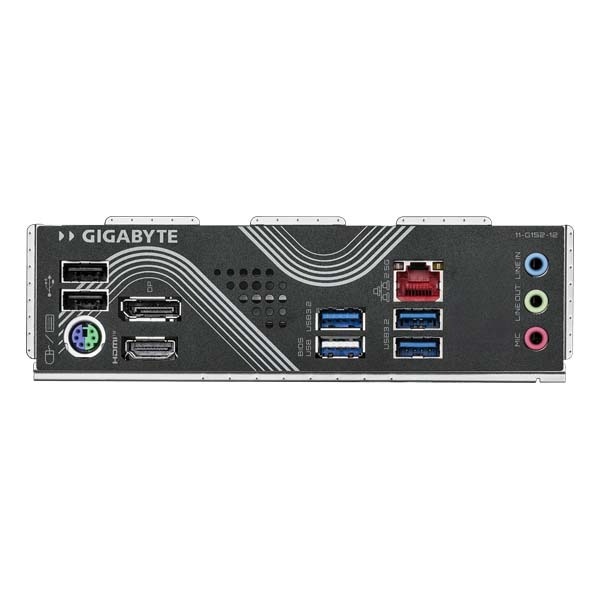

| Back Panel I/O | 1× PS/2, 1× HDMI, 1× DisplayPort, 3× USB 3.2, 3× USB 2.0, 1× RJ-45, 3× audio jacks |
| Monitoring | Voltage, Temperature, Fan speeds, Pump flow, Warnings |
| BIOS | 256 Mbit AMI UEFI BIOS |
| Special Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Norton® Internet Security (OEM), LAN management utility |
| OS Support | Windows 11/10 64-bit (Intel® NPU driver: Win11 only) |
| Form Factor | Micro ATX (24.4 × 22.5 cm) |
| Warranty | 3 Years |
| Note | Features, price, and specifications subject to change without notice. |
Additional information
| Weight | 0.800 kg |
|---|---|
| Dimensions | 24.4 × 22.6 × 26.5 cm |
| Brands |
GIGABYTE |
| color |
Black |
| Product Type |
gaming |
| Motherboard Size |
mATX |
| Socket |
LGA 1851 |
| Warranty |
3 Years |
| Ean Code |
4719331867041 |
