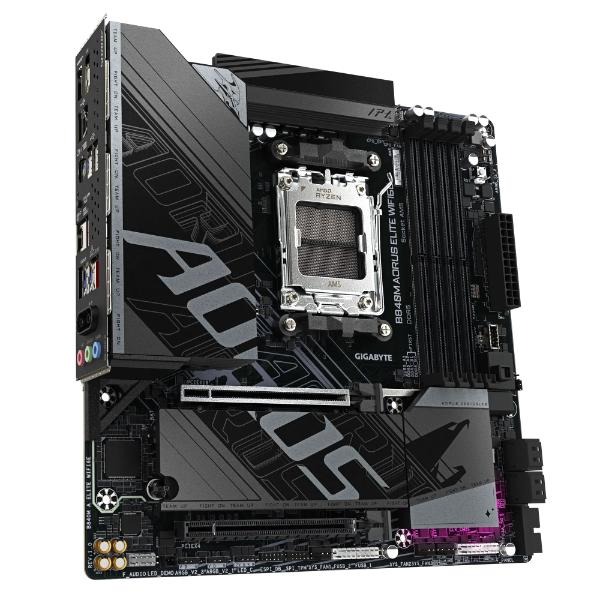

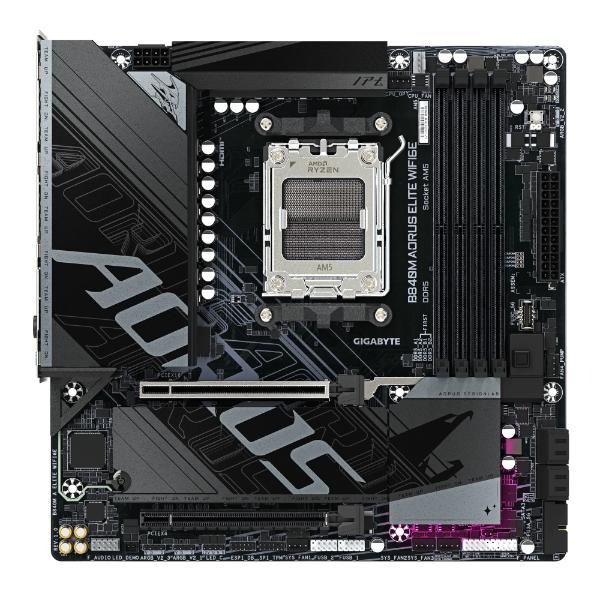

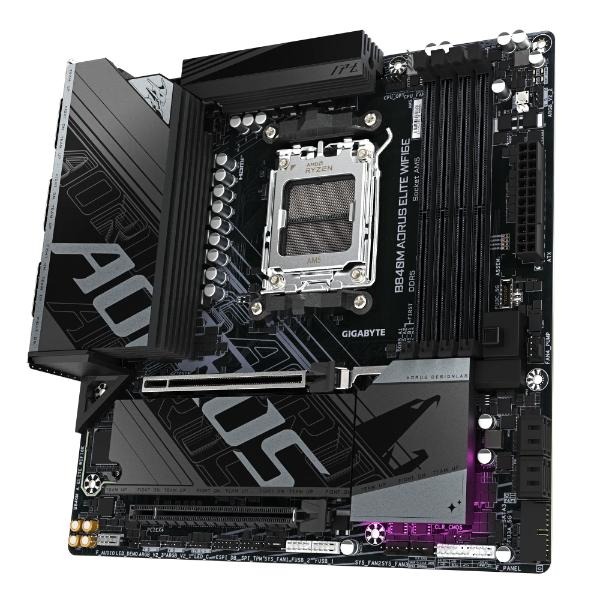

Gigabyte B840M Aorus Elite WiFi6E AM5 M-ATX AMD Motherboard
Original price was: ₹35,499.00.₹15,949.00Current price is: ₹15,949.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Description
Gigabyte B840M Aorus Elite WiFi6E AM5 M-ATX AMD Motherboard
Key Features
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 10+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

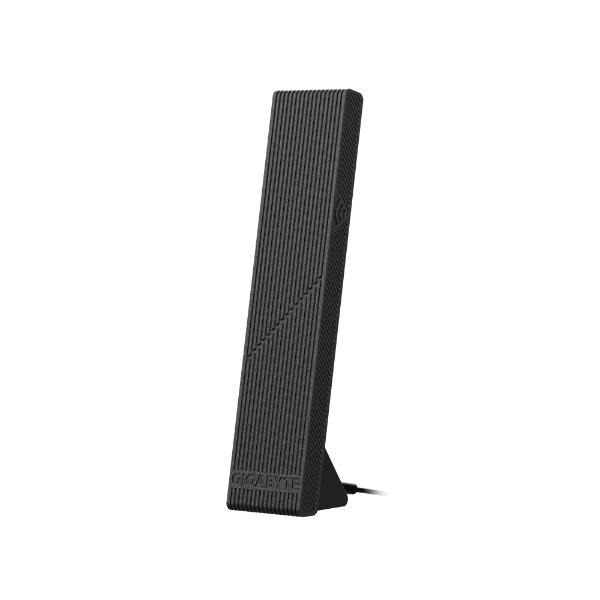

- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
- PCIe UD Slot : PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Infinite Memory Performance
Elite Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Future Connectivity
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. Elite series motherboards are engineered to endure and excel.
| Category | Specification |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors (Check GIGABYTE website for the latest CPU support list.) |
| Chipset | AMD B840 |
| Memory | Support for DDR5 8200(O.C) to 4800 MT/s memory modules. 4 x DDR5 DIMM sockets, up to 256 GB. Dual channel architecture. Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules. Supports AMD EXPO™ and XMP memory modules. |
| Onboard Graphics | Integrated AMD Radeon™ Graphics with DisplayPort (3840×2160@144Hz) and HDMI (4096×2160@60Hz) ports. Supports HDR, DisplayPort 1.4, HDMI 2.1 version, and HDCP 2.3. |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel audio. Configurable via audio software. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 6E RTL8852CE, Wi-Fi a, b, g, n, ac, ax. 2.4/5/6 GHz. Bluetooth 5.3. Supports 11ax 160MHz wireless standard. |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16) – PCIe 4.0 x16 (AMD Ryzen™ 9000/7000), PCIe 4.0 x8 (Phoenix 1), PCIe 4.0 x4 (Phoenix 2). 1 x PCI Express x16 slot (PCIEX4) running PCIe 3.0 x4. |
| Storage Interface | 1 x M.2 connector (M2A_CPU) and 1 x M.2 connector (M2B_CPU) with PCIe 4.0 x4/x2 SSDs support for AMD Ryzen™ 9000/7000. 4 x SATA 6Gb/s connectors. RAID 0, 1, 5, 10 support. |
| USB | 1 x USB Type-C® (back panel, USB 3.2 Gen 1), 2 x USB 3.2 Gen 1 (back panel), 4 x USB 2.0/1.1 (back panel). Internal connectors: 1 x USB Type-C®, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 headers. |
| Internal I/O Connectors | 24-pin ATX main power, 8-pin ATX 12V, CPU fan header, system fan headers, 3 x RGB Gen2 headers, M.2, SATA connectors, USB headers, front panel, TPM header, reset jumper, CMOS jumper. |

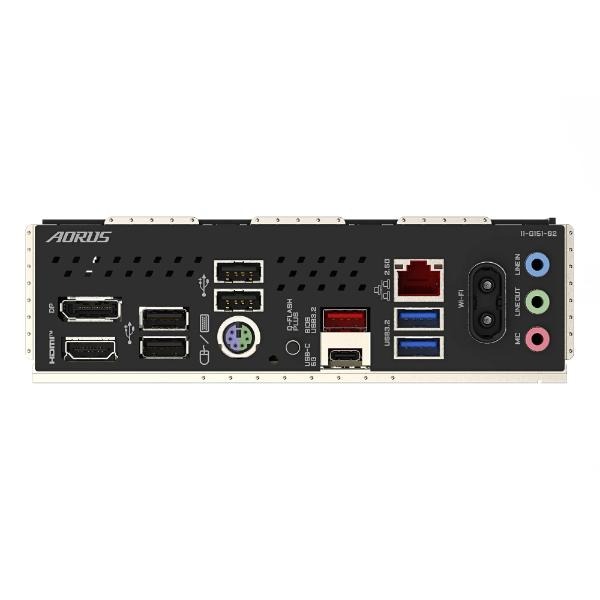

| Back Panel Connectors | 1 x DisplayPort, 1 x HDMI, 1 x PS/2 keyboard/mouse port, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1, 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A, 1 x USB Type-C®, 1 x RJ-45 port, 2 x antenna connectors, 3 x audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control. |
| BIOS | 256 Mbit flash, AMI UEFI BIOS, supports PnP, DMI, WfM, SM BIOS, ACPI. |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software. |
| Operating System | Windows 11 64-bit, Windows 10 64-bit support. |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Additional information
| Weight | 1.50 kg |
|---|---|
| Dimensions | 24 × 24 × 3.5 cm |
| Brands | GIGABYTE |
| color | Black |
| Product Type | Normal |
| Motherboard Size | mATX |
| Socket | AM5 |
| Warranty | 3 Years |
| Ean Code | 4719331866082 |
