ASUS ProArt X870E-CREATOR WiFi Motherboard

Feature

• Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
• Robust performance: 16+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
• Future-proofed connectivity: Dual USB4 ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+
• Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling and AI Networking II, Dynamic OC Switcher, and Core Flex
• DIY-Friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack, Q-Connector
• ProArt gives you more: ProArt Creator Hub with Color Management working in conjunction with Pantone’s proprietary utilities for one-stop system control and creation related settings
• Advanced security: USB p

X870E-CREATOR WIFI

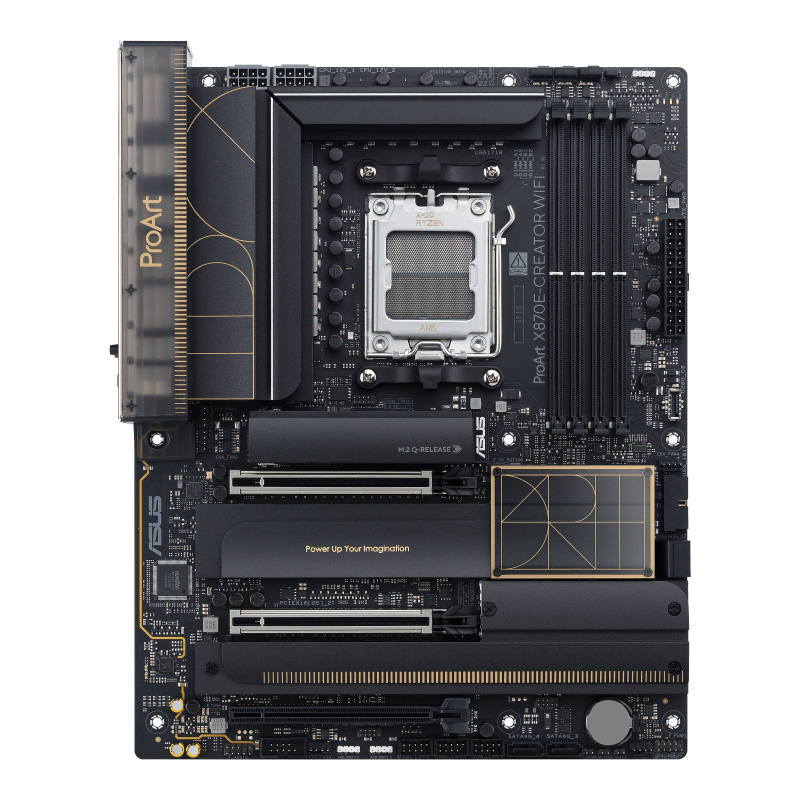

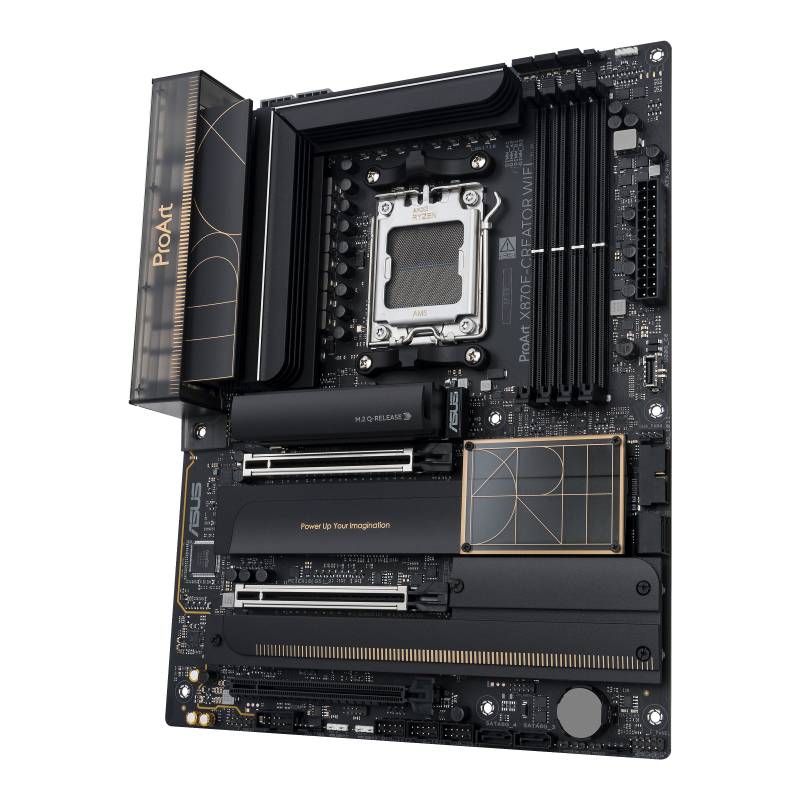

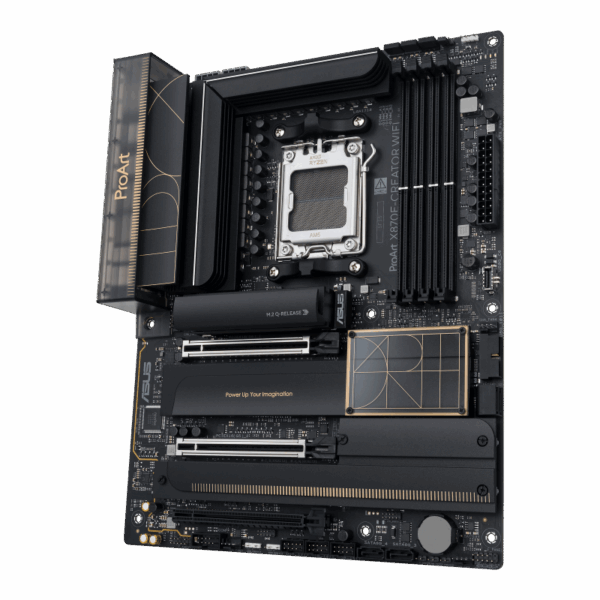

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe^® 5.0 and lightning-fast connectivity including dual USB4^®, 10G and 2.5G Ethernet, and WiFi 7.​

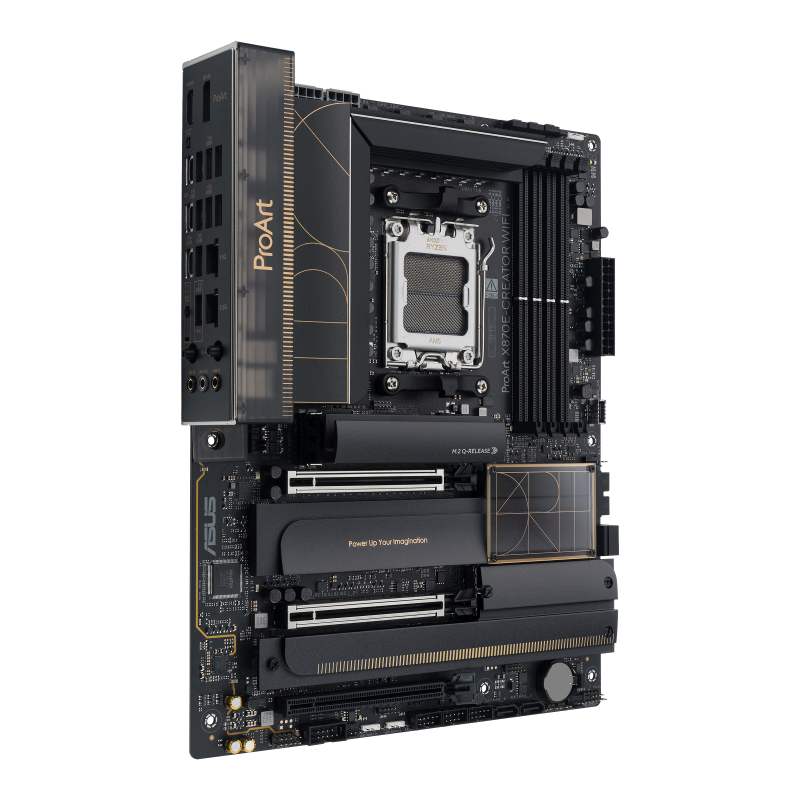

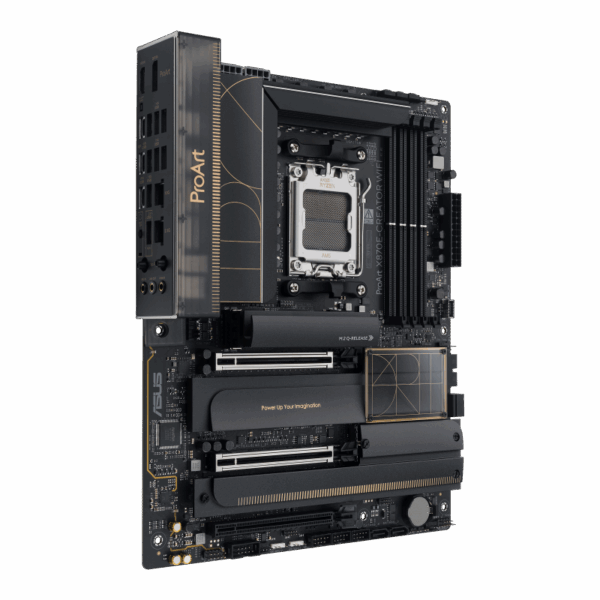

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​

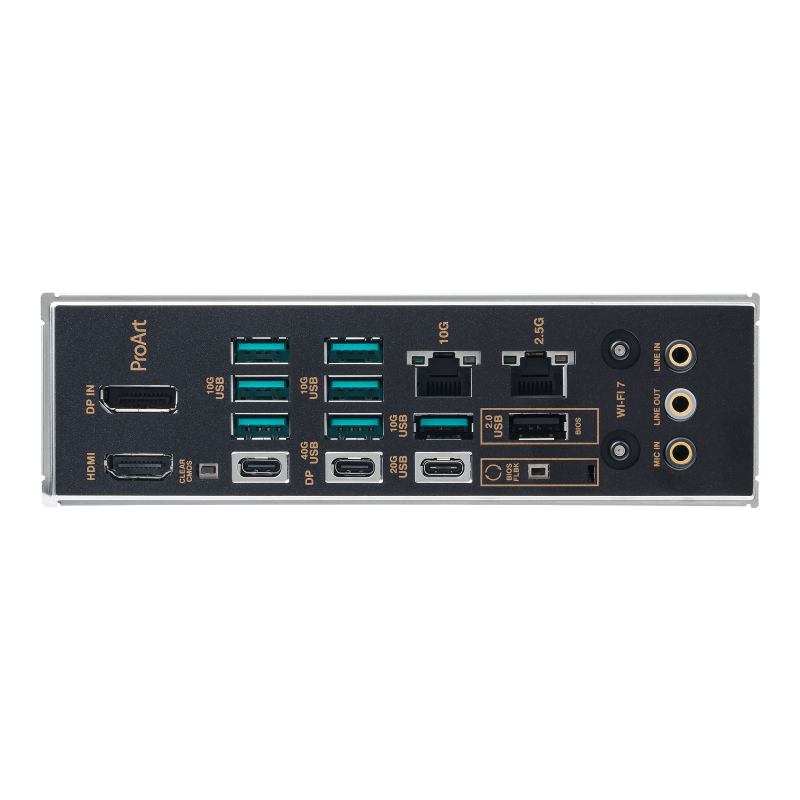

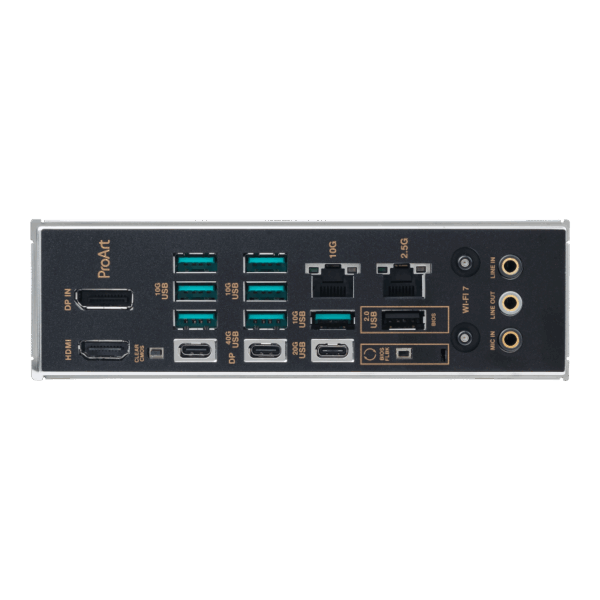

1. DisplayPort™ input port for USB4^®
2. HDMI^® 2.1 port (4K @ 60 Hz)​
3. 7 x USB 10Gbps ports
4. 2 x USB4^® ports with DisplayPort™ 1.4 (8K @ 60 Hz)​
5. 1 x USB 20Gbps Type-C^® port​
6. 10 Gb & 2.5 Gb Ethernet
7. BIOS FlashBack™
8. 1 x USB 2.0 port
9. WiFi 7
10. 3 x Audio jacks
11. 1 x USB 20Gbps Type-C^® front-panel connector with 30-watt PD, QC 4+​
12. 1 x USB 5Gbps front-panel header
13. 4 x SATA 6 Gb/s
14. 3 x USB 2.0 headers
15. 3 x Aura addressable Gen 2 RGB headers

Dual USB4^® Connectivity

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.​

Ultrafast Networking​

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

*WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.​
**Specifications vary by model.

Wireless Signal Reception Improvement

Versus previous-generation antenna

PCIe 5.0 Support

Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four Onboard M.2 Slots

ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

PCIe 5.0 Expansion Slots

Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

The Core of Your Powerful Workstation

Robust Power Design

ASUS ProArt X870E-CREATOR WiFi Motherboard Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

• 16V core Power (80A, SPS)

• 2 SOC Power (80A, SPS)

• 2 Misc Power​ (80A, DrMOS)​

• Eight-Layer PCB Design

  ASUS ProArt X870E-CREATOR WiFi Motherboard This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.



• ProCool II Connectors

  These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.



• Superior Chokes & Capacitors

  These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.



• Digi+ VRM Control

  The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.



Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The new Overclocking Load Guard also has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Memory

The ProArt X870E-Creator WiFi enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.

• DDR5 Strength

  ASUS ProArt X870E-CREATOR WiFi Motherboard For those who want to fly past stock DDR5 speeds*, the ProArt X870E-Creator WiFi is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

  * Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.



• ASUS Enhanced Memory Profile (AEMP)

  ASUS ProArt X870E-CREATOR WiFi Motherboard This exclusive firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.​



The Power of Minimalist Design

ASUS ProArt X870E-CREATOR WiFi Motherboard ASUS ProArt X870E-CREATOR WiFi Motherboard A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Everything You Need to Optimize Workflow​

Customize Your Personal Settings

ASUS ProArt X870E-CREATOR WiFi Motherboard ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, with quickly switchable fan profiles and performance modes.​

Color Management​

ASUS ProArt X870E-CREATOR WiFi Motherboard One of the most important things for creators is color. The top right corner allows easy access to the Color Management feature. This includes the Screen Color Picker and Image Color Extractor that make it simple to get a detailed color analysis and color information, and you can use the Color Palette to build your personal color preferences. You will also find color trends and color palettes created by the professionals at the ASUS Design Center.​

Security Control and Remote Management

ASUS ProArt X870E-CREATOR WiFi Motherboard Advanced security management functions from ASUS Control Center Express protect the PCs and confidential data in your creative studio.

USB Port Management

ASUS ProArt X870E-CREATOR WiFi Motherboard Enable or disable the USB port, or set it to Read Only to prevent data leaks.​

Software Blacklist

ASUS ProArt X870E-CREATOR WiFi Motherboard For added security, a software blacklist is available to help prevent the use of high-risk applications.

Registry Editor On/Off

ASUS ProArt X870E-CREATOR WiFi Motherboard Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.​

Upgraded UEFI BIOS

ASUS ProArt X870E-CREATOR WiFi Motherboard Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.​

ASUS DriverHub

ASUS ProArt X870E-CREATOR WiFi Motherboard DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and perform optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. Users are invited to install ASUS DriverHub after OS installation.

ASUS GlidEx

ASUS ProArt X870E-CREATOR WiFi Motherboard A cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. It is compatible with Windows, macOS, Android and iOS.

Trusted Stability

ASUS ProArt X870E-CREATOR WiFi Motherboard ProArt X870E-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
