Asus ProArt X670E Creator WiFi Motherboard

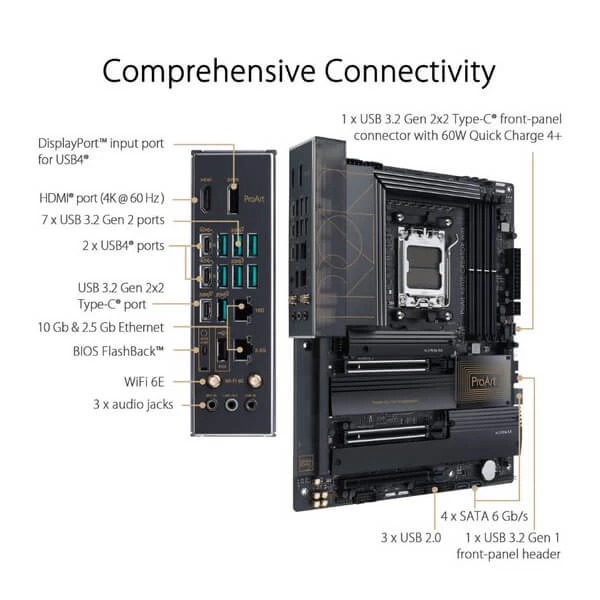

Dual USB4 connectivity

Asus ProArt X670E Creator WiFi Motherboard Get immersed in your creations with two USB4 ports which connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4 port.

Ultrafast networking

WiFi 6E

Asus ProArt X670E Creator WiFi Motherboard Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

PCIe 5.0 support

PCIe 5.0

Asus ProArt X670E Creator WiFi Motherboard Fully embracing the new standard, the ProArt X670E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four onboard M.2 slots

The ProArt X670E-Creator WiFi features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

PCIe 5.0 expansion slots

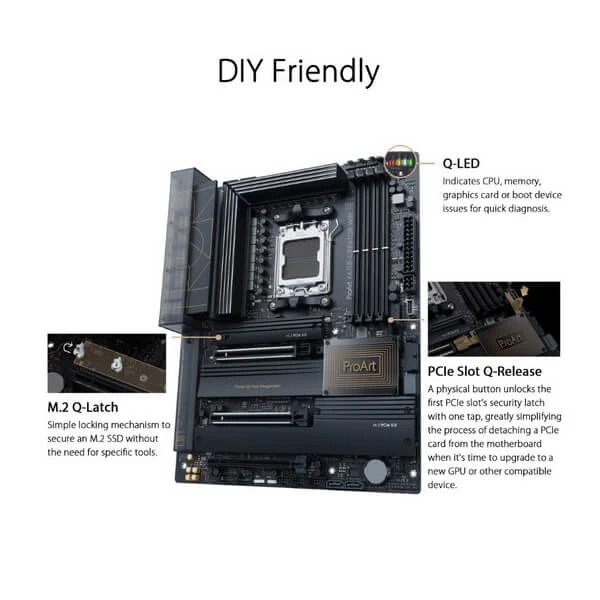

Asus ProArt X670E Creator WiFi Motherboard Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

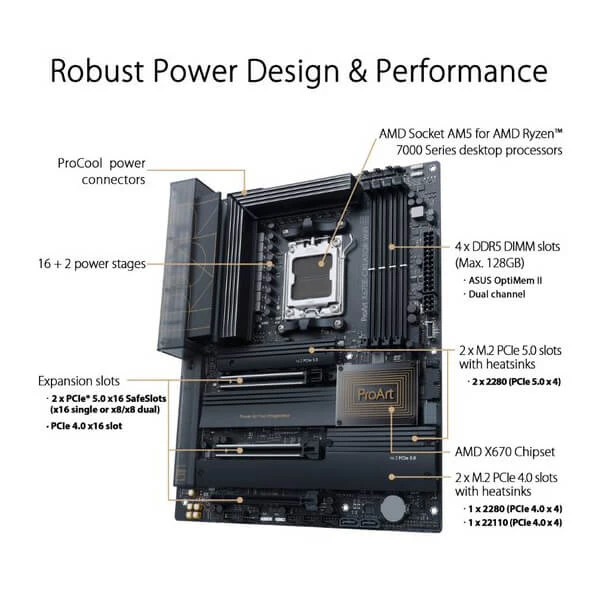

Robust Power Design

1.Asus ProArt X670E Creator WiFi Motherboard  16+2 teamed power stages: Rated for 70 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest AMD Ryzen 7000 series processors.

2. Digi+ power control: The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

3. ProCool power connectors: Built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

4. Chokes & capacitors: Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

AI Overclocking

Asus ProArt X670E Creator WiFi Motherboard X670E Creator Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
