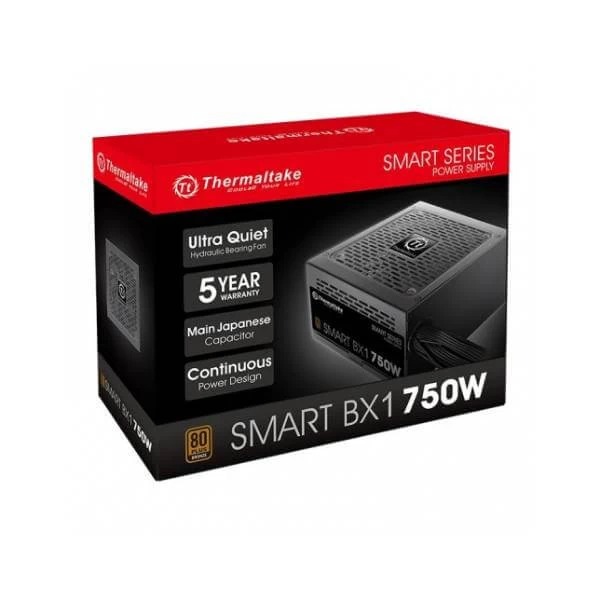

Thermaltake Smart BX1 750W 80 Plus Bronze SMPS
Original price was: ₹12,499.00.₹5,449.00Current price is: ₹5,449.00. (Inclusive of GST)
Thermaltake Smart BM3 Bronze 750W TT Premium Edition
Original price was: ₹15,990.00.₹6,949.00Current price is: ₹6,949.00. (Inclusive of GST)
-40%
Thermaltake Smart BX3 750W 80 Plus Bronze ATX 3.1 Power Supply
Original price was: ₹9,499.00.₹5,699.00Current price is: ₹5,699.00. (Inclusive of GST)
In stock
200
People watching this product now!
12
Items sold in last 12 hours
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
Unmatched Reliability ATX 3.1 Power Supply
The Thermaltake Smart BX3 750W series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It’s perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.
ATX 3.1 Ready
Thermaltake Smart BX3 750W series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
Be Smart, Stay Quiet
Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.
High Quality 105°C/221°F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT |
Input Voltage: 100 – 240V~ |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 18A | 18A | 62.5A | 0.3A | 3A |
| Max Output Power | 110W | 750W | 3.6W | 15W | |
| Total Power | 750W | ||||
Built-in Industrial Grade Protection
To protect the hardware, Smart BX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Non-Modular Flat Cable Design
Thermaltake Smart BX3 750W series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |  |
X 1 | 600mm |
| ATX 12V (4+4Pin) |
X 2 |  |
X 1 | 650mm+150mm |
| PCIe (6+2Pin) |
X 2 |  |
X 1 | 500mm+150mm |
| SATA (5Pin) |
X 4 |  |
X 1 | 500mm+150mm +150mm+150mm |
| Peripheral | X 4 |  |
X 1 | 500mm+150mm +150mm+150mm |
80 PLUS Bronze-Certified and Intel C6/C7 States Ready
Thermaltake Smart BX3 750W Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Additional information
| Brands |
Thermaltake |
|---|---|
| Product Type |
Normal |
| color |
Black |
| Modular |
Non-Modular |
| PSU Certification |
Bronze |
| Wattage |
750W |
| Warranty |
5 YEARS |
Specifications
Specifications
| P/N | PS-SPD-0750NNFABx-3 |
|---|---|
| watts | 750W |
| Model | SPD-0750AH2NLB-3 |
| Max. Output Capacity | 750W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 15A-6A |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100-240V～ |
| OPERATING TEMPERATURE | 5°C to + 45°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| PCI-E 6+2pin | 2 |
| Smart Zero Fan | Fan will not spin until the load exceeds 20% No physical fan switch |
| PROTECTION | OCP/OVP/UVP/OPP/OTP/SCP |
