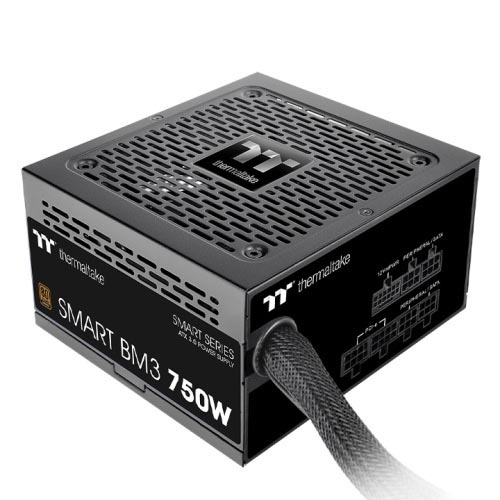

Thermaltake Smart BM3 Bronze 750W TT Premium Edition

Feature

nze (550W/650W/750W/850W) certified semi modular PSU is designed to meet ATX 3.0 standards, it also comes with one PCIe Gen 5.0 (12VHPWR) connector to support modern graphics cards. With an ample 5-year warranty, the Smart BM3 series is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

Fully Compatible with Intel ATX 3.0 Standards

Smart BM3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

<img class="entered exited" src="data:;base64,” data-lazy-src=”https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/SmartBM3/750w/pic03.png” />

PCIe Gen 5.0 Ready

Smart BM3 Bronze series comes with a 16-pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage.
The native 16-pin (12VHPWR) PCIe connector of the Smart BM3 750W can deliver up to 300W for PCIe 5.0 graphics cards.

<img class="entered exited" src="data:;base64,” alt=”SmartBM3″ data-lazy-src=”https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/SmartBM3/750w/pic04.png” />

Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The TT Smart BM3 series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin PCIe cables for AMD graphics cards & entry RTX 40 series graphics cards, it also comes with a 1 x 16-pin connector for RTX 40 series cards that need a PCIe Gen 5.0 connector, ready to supply the graphics cards according to their different ways of connections.

<img class="entered exited" src="data:;base64,” data-lazy-src=”https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/SmartBM3/750w/pic06.png” />

Be Smart, Stay Quiet

Featuring a 120mm FDB fan to deliver excellent airflow. Furthermore, with the Smart Zero Fan function the fan will not spin until the load exceeds 20% of the power supply, minimizing undesired noise.

<img class="entered exited" src="data:;base64,” data-lazy-src=”https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/SmartBM3/750w/pic07.png” />

High Quality Japanese 105°C/221°F Main Electrolytic Capacitor

High quality Japanese main electrolytic capacitor greatly improves the power supplies durability and ensures the Smart BM3 series is stable and reliable.

<img class="entered exited" src="data:;base64,” data-lazy-src=”https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/SmartBM3/750w/pic08.png” />

High Amperage Single +12V Rail & DC to DC Design

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

Built-in Industrial Grade Protection

To protect the hardware, Smart BM3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

<img class="entered exited" src="data:;base64,” data-lazy-src=”https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/SmartBM3/750w/pic10.png” />

Semi Modular Flat Cable Design

Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.

<img class="entered exited" src="data:;base64,” data-lazy-src=”https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/SmartBM3/750w/logo_80plusgold.jpg” />

80 PLUS Bronze-Certified and Intel C6/C7 States Ready

Smart BM3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
