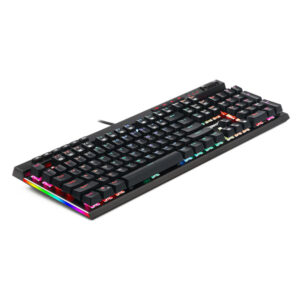

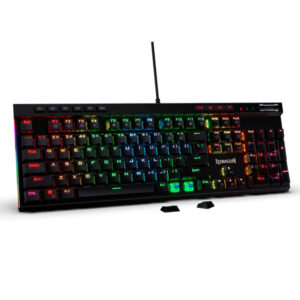

Redragon K580 VATA RGB LED Backlit Mechanical Gaming Keyboard Blue Switch

Keyboard Setting:
 Marco Recording Function

The default setting of the five G keys (ESC+G1~G5) are the same as F1~F5 correspondingly.

Marco recording function:
Step 1: Press [Rec] to start record (The four LEDs flash simultaneously)
Step 2: Press one of the five G keys and it lights up (G1~G5)
Step 3: Press keys to be recorded
Step 4: Press [Rec] once again to save the recording. The [Rec] also lights up.
For example, record 123 on G1: [Rec]→G1→123→ [Rec]

✩ How to clear the recording:
To clear a single recorded macro key: Press [Rec]+desired G key (G1-G5) you need to delete, then press [Rec] again. To delete all recorded macro keys(G1-G5): Press and hold [REC] for 5 seconds, the light of [REC] and G key goes off.

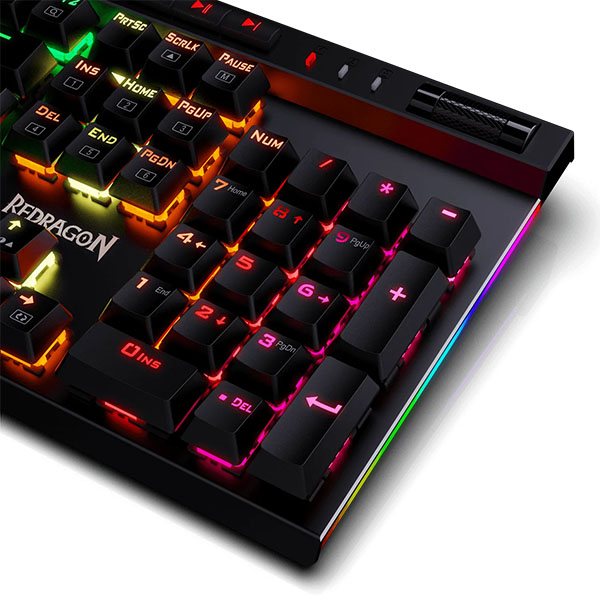

 Two Sides Lighting Setting
Press FN + [PAUSE] to switch 5 lighting modes on two sides.
Press FN + [SCRLK] to adjust the lighting speed on two sides.

Specifications:
Connector: Gold-plated USB
LED backlit color: RGB
Keyboard Size: 17.6 x 7.6 x 1.5 inches
Keyboard Weight: 2.64 pounds
Multimedia keys: 12
Programmable macro keys: 5
Material: Aluminum alloy +ABS

Package List:
1x Redragon K580 Mechanical gaming keyboard
1x User Manual
1x Keycap Puller
8x Spared Switches
