This Prolab Design AI848 mid-tower case measures 235 x 518 x 473 mm and is built with a robust combination of SPCC steel, ABS plastic, and tempered glass, offering a modern, durable design that showcases your components. It supports a wide range of motherboard types including ATX, Micro-ATX, and ITX, making it versatile for various system builds.
Prolab Design AI848 storage configuration is streamlined for modern setups, with dedicated drive bays for one 2.5″ HDD and two 2.5″ SSDs (note that there are no 3.5″ bays provided). Cooling is a top priority: the front panel accommodates either three 120mm or three 140mm fans (with 3x pre-installed 140mm ARGB fans), while the top supports up to three 120mm or three 140mm fans along with radiator options of 240mm, 280mm, or 360mm. The bottom is designed for a 120mm fan (or a radiator with a maximum supported thickness of 125 mm), and the rear offers a slot for either a 120mm or a 140mm fan.
Additional features include an I/O panel equipped with 2 x USB 3.0 ports, 1 x Type-C port, Audio In/Out, a Mic jack, and dedicated Power & Reset buttons. With 8 expansion slots available, the case provides ample room for additional PCIe cards. Internally, Prolab Design AI848 supports graphics cards up to 190 mm in length and CPU coolers up to 180 mm in height, ensuring compatibility with many high-performance components. The net weight of the case is 10.15 kg (gross weight 12.1 kg), emphasizing its sturdy build quality.
Designed for Professionals and Gamers alike!

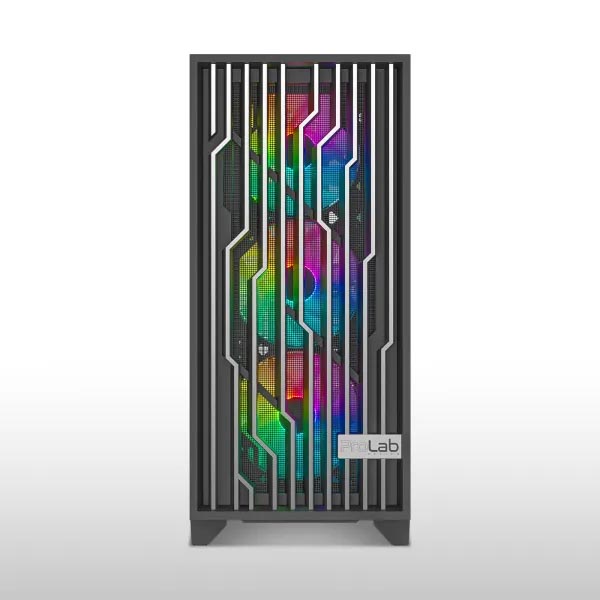

Sharp front grill and mesh front make a bold design statement, making this suited for most use cases.
Large Front Air Intake and Air Ventilation all around
Prolab Design AI848 large front mesh takes in a lot of fresh air, and more ventilation and FAN mounts in the side, top, and passive airflow vent in the bottom move hot air away from your components.
Fast Data Transfer with Modern I/O Ports
Get Lightning Fast Transfer Speeds with 1*USB-C Port and 2*USB 3.0 Type-A Ports in the Front.
Best in Class Compatibility!
Install up to 39cm length GPUs and 18cm height of CPU Coolers. Make this compatible with the tallest air coolers and biggest GPUs like the RTX 5090 or 4090!
Additional information
Brands
Prolab
Product Type
Normal
color
Black
Case Form Factor
Mid Tower
Radiator Size
360 MM
Motherboard Size
ATX
EAN / UPC Code
8906136076822
Specifications
Specifications
Product Dimensions (LxWxH)
235 x 518 x 473 mm
Box Dimensions (LxWxH)
565 x 328 x 612 mm
Case Form Factor
Mid Tower
Supported Motherboard Type
ATX, Micro-ATX, ITX
Materials
SPCC + ABS + Glass
Drive Bays
3.5″ / 2.5″ – x1 HDD + x2 SSD 5.25″ – None
Fan Support (Front)
120mm x 3 / 140mm x 3
Fan Support (Top)
120mm x 3 / 140mm x 3
Fan Support (Bottom)
120mm x 2
Fan Support (Rear)
120mm x 1 / 140mm x 1
Fan Support (Side)
None
Radiator Support (Front)
240mm / 280mm / 360mm
Radiator Support (Top)
240mm / 280mm / 360mm
Radiator Support (Bottom)
120mm (Max. Support 125.5mm)
Radiator Support (Rear)
120mm / 140mm
Radiator Support (Side)
None
Pre-Installed Fans
x3 ARGB Front Fans (140mm), x1 ARGB Rear Fan (140mm)
Clearance (VGA Length)
390mm
Clearance (CPU Cooler Height)
180mm
I/O Panel
x2 USB 3.0, x1 Type-C, Audio In, MIC, Power & Reset Button
