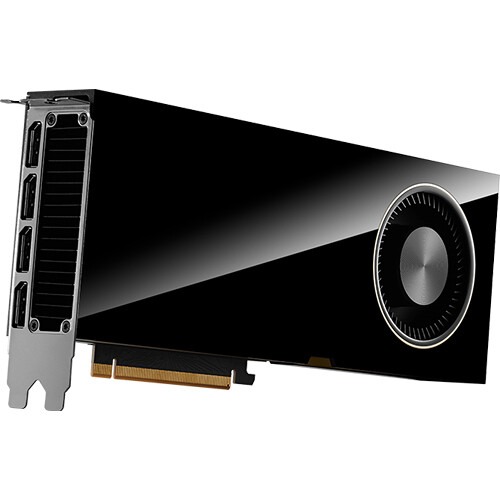

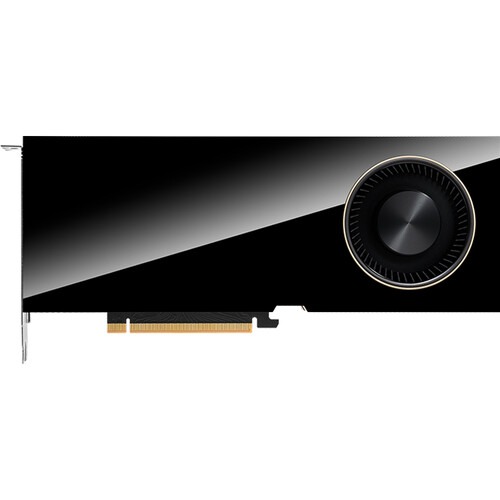

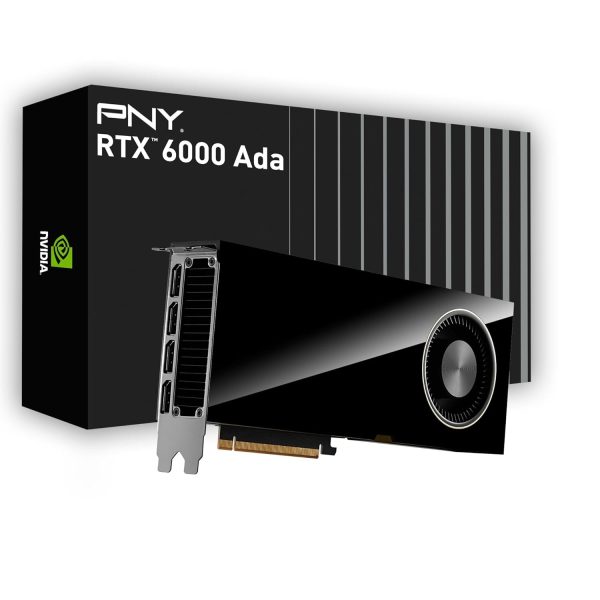

PNY NVIDIA RTX 6000 Ada Generation Graphics Card

PNY NVIDIA RTX 6000 Ada Generation Graphics Card

Feature

• Interface: PCIE 4.0 x16
• Generation: RTX 6000 Ada
• Memory: 48 GB, GDDR6
• Core Clock: 915 MHz
• Memory Clock: 2505 MHz
• Power Consumption: 300 W
• Length: 267 mm
• Cooling: 1 Fan
• Power Connector: 1 PCIe 16-pin
• Architecture: NVIDIA Ada Lovelace
• Process Size: 4nm NVIDIA Custom Process | TSMC
• Die Size: 608.4 mm
• Transistors: 76.3 Billion
• CUDA Cores: 181762
• Tensor Cores: 568 Gen-42
• RT Cores: 142 Gen-32

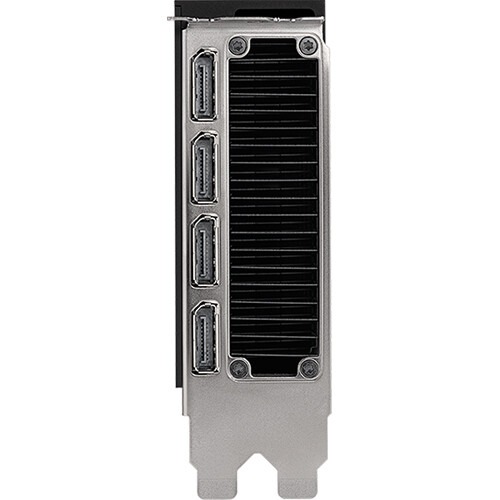

• Display Connectors: DP 1.4 (4)
• Form Factor: 4.4″ H x 10.5″ L, Dual-Slot
• Thermal Solution: Active Fansink
• AR/MR/VR/XR Capable: Yes
• NVIDIA 3D Vision and 3D Vision Pro Support: via Optional 3-pin mini-DIN
• Frame Lock Compatible: with NVIDIA Quadro Sync II
• NVENC | NVDEC: 3x | 3x + AV1 Encode and Decode

CUDA Cores

Double-speed processing for single-precision floating point (FP32) operations provides significant performance improvements for graphics and simulation workflows, such as complex 3D computer-aided design (CAD) and computer-aided engineering (CAE), on the desktop.

3rd Gen RT Cores

With up to 2x the throughput over the previous generation, third-generation RT Cores deliver massive speedups for workloads like photorealistic rendering of movie content, architectural design evaluations, and virtual prototyping of product designs. This technology also accelerates the rendering of ray-traced motion blur with greater visual accuracy.

4th Gen Tensor Cores

Fourth-generation Tensor Cores provide faster AI computer performance, delivering more than 2x the performance of the previous generation. These new Tensor Cores support acceleration of the FP8 precision data type and provide independent floating-point and integer data paths to speed up the execution of mixed floating-point and integer calculations.

48GB of VRAM

With 48GB of GDDR6 VRAM, the RTX 6000 gives data scientists, engineers, and creative professionals the large memory necessary to work with massive datasets and workloads like rendering, data science, and simulation.

Virtualization-Ready

Support for NVIDIA RTX Virtual Workstation (vWS) software allows a personal workstation to be repurposed into multiple high-performance virtual workstation instances, enabling remote users to share resources to drive high-end design, AI, and compute workload.

PCIe Gen 4 Interface

PCI Express Gen 4 support provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.
