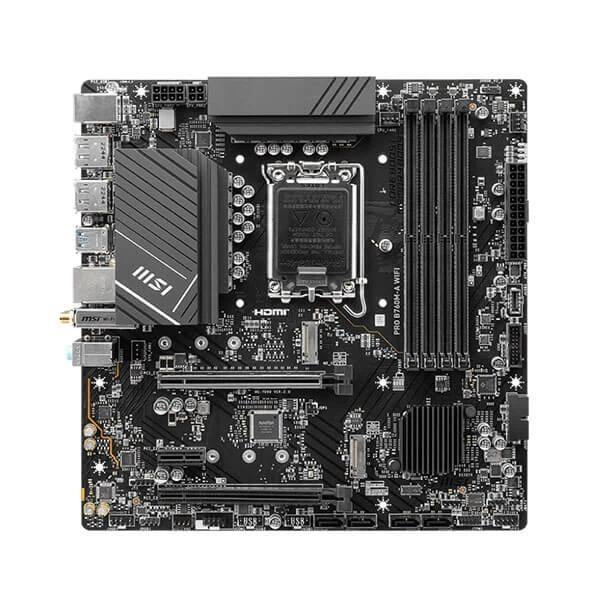

MSI Pro B760M-A WIFI DDR5 Motherboard Supports Intel 12th , 13th & 14th Gen Processors

Features:

• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
• Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

1. Extended Heatsink

   Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2. Heavy Plated VRM Heatsink

   The VRM heatsink covers the upper MOS and helps dissipate the heat.

3. 7W/mK Thermal Pad & Additional Choke Pad

   High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

4. Chipset Heatsink

   The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

USB FRONT TYPE-C

MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
