Feature

• MSI MAG B850M MORTAR Wi-Fi Motherboard Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• MSI MAG B850M MORTAR Wi-Fi Motherboard Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• MSI MAG B850M MORTAR Wi-Fi Motherboard Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
• MSI MAG B850M MORTAR Wi-Fi Motherboard Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• MSI MAG B850M MORTAR Wi-Fi Motherboard EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• MSI MAG B850M MORTAR Wi-Fi Motherboard Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
• MSI MAG B850M MORTAR Wi-Fi Motherboard 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

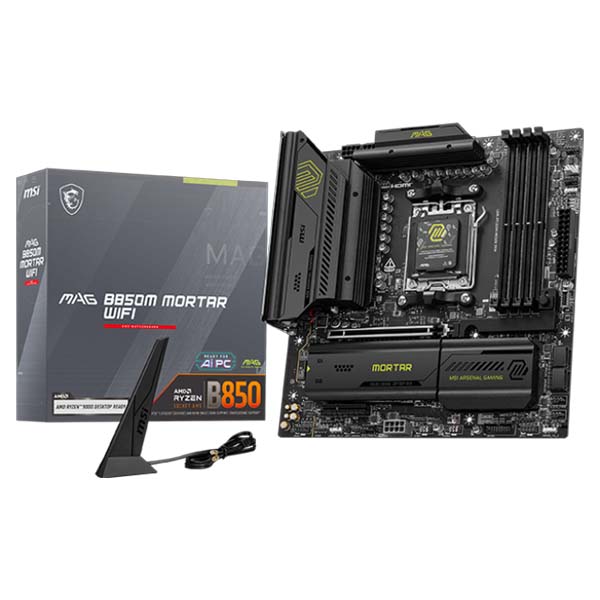

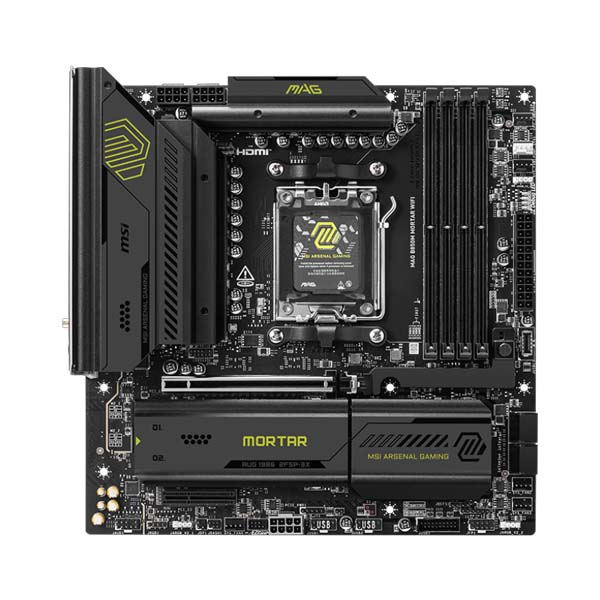

MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it’s ready for the battlefield of AMD Ryzen™ 9000 series processors.

EZ PCIe Release

An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

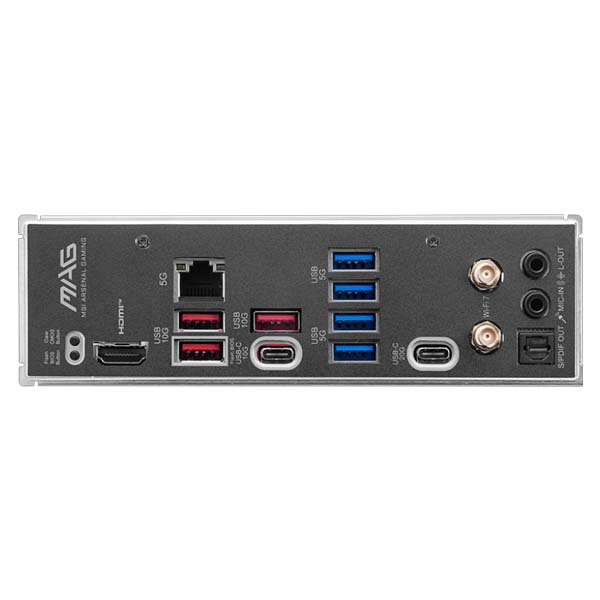

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

Avoid Collision Notification

Keep Out Zone

Double ESD Protection

EZ MOUNTING

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

12+2+1 Duet Rail Power System

Unleash and sustain maximum performance with a flagship VRM design built with a total of 12+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, MAG B850M MORTAR WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B850M MORTAR WIFI is ready to deliver the world-class memory performance.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

FOR CPU COOLER

FOR LIQUID COOLER

3A power deliver / Supports auto-detect

FOR SYSTEM FAN

Supports auto-detect

EXCLUSIVE EZ CONN. – JAF_1

2A power deliver(fan) / Supports dedicate MSI PC components.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.

FAST AND FUTURE-READY STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

The Isolated Analogy Structure for Audio Connectors

To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
