Lian Li LANCOOL 217 Genuine Walnut Wood Mid-Tower ATX PC Case (White)

Lian Li LANCOOL 217 Genuine Walnut Wood Computer Case, Mid-Tower ATX PC Case with 5 Pre-Installed PWM Fans 2x170mm, 2x120mm & 1x140mm, Flexible PSU & Cable Installation – White(LAN217W)

Feature

• 5 Pre-installed Fans – Lian Li LANCOOL 217 experience exceptional airflow with five pre-installed fans, including two large 170x30mm front fans, two 120mm reversed-blade fans and a 140mm fan at the rear, ensuring your CPU and GPU stay cool during intensive tasks.
• Versatile Fan Configuration – Customize your cooling setup with toolless fan mounting and flexible fan locations, 170mm front fans at default setup, provide balanced cooling for both the CPU and GPU, both fans can be raised (CPU mode), where they direct airflow specifically towards the CPU for improved cooling efficiency.
• Stylish Wood Accents – Elevate your build’s aesthetic with real wood accents. Choose between dark walnut or light beech finishes, seamlessly integrated for a modern and sophisticated look.
• Dual PSU Mounting Options – Enjoy flexibility with two PSU mounting configurations. Install your PSU facing front or rotate it for easier cable management, accommodating PSUs up to 220mm in length.
• Clean and Clutter-Free Design & Dual Power Buttons- Support for back-connect motherboards keeps cables hidden, resulting in a streamlined building experience. This design enhances airflow and maintains a clean, professional appearance. Equipped with two power buttons for easy access, accommodating various PC placements.

WHERE WOOD MEETS AIRFLOW

Lian Li LANCOOL 217 is thoughtfully engineered to blend natural wooden aesthetics with high-performance airflow. It features a front panel that pairs finely perforated mesh with a wooden frame to maintain an organic look while allowing for unrestricted airflow.

Lian Li LANCOOL 217 black version is accented with rich walnut wood, delivering a bold and contemporary feel. The white version incorporates light birch wood, offering a sleek, minimalist aesthetic ideal for modern tech setups.

READY-TO-GO COOLING WITH 5 PRE-INSTALLED FANS

Lian Li LANCOOL 217 chassis comes equipped with high-performance fans at the front, rear, and bottom, providing powerful airflow to keep internal components running smoothly and reliably.

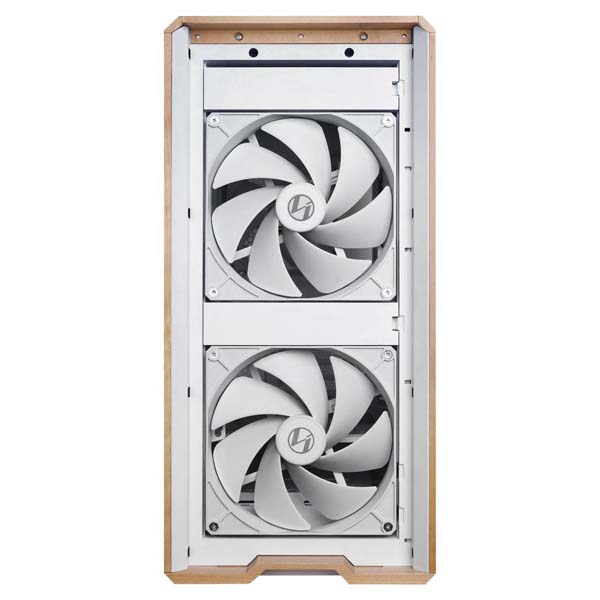

Lian Li LANCOOL 217 front fans utilize FDB bearing for quieter operation and extended lifespan. Designed for performance, they deliver powerful airflow and can be repositioned to better target the CPU or GPU.

• Size: 170 × 170 × 30 mm
• Speed: 1550 RPM
• Airflow: 142.56 CFM
• Static Pressure: 3.34 mmH₂O
• Noise Level: 34.3 dBA

Above the PSU shroud, the bottom fans are specifically positioned to direct cool air toward the GPU, helping to effectively manage its temperature.

• Size: 120 × 120 × 25 mm
• Speed: 1900 RPM
• Airflow: 66.9 CFM
• Static Pressure: 1.6 mmH₂O
• Noise Level: 33.2 dBA

At the rear, a 140mm fan effectively removes warm air, helping to maintain balanced airflow throughout the system.

• Size: 140 × 140 × 25 mm
• Speed: 1800 RPM
• Airflow: 81.3 CFM
• Static Pressure: 2.4 mmH₂O
• Noise Level: 34.2 dBA

Independent testing at the PPLP Lab confirmed that the Lian Li LANCOOL 217 delivers top-tier thermal performance, placing it among the highest-ranked cases in its class. Its efficient airflow design and strong out-of-the-box cooling earned it the prestigious S-Tier Case Performance Award, highlighting its exceptional capabilities in thermal management.

Thermal Test (Tested with Air Cooler):

Test Platform:
CPU: Intel i9-13900K (Power limit set to 230W)
GPU: ASUS ROG Strix RTX 3080 12G (Max load TGP: 390W)
Test Software: AIDA64 FPU (15 minutes)

CPU Mode / GPU Mode– Quick Test Guide

CPU Mode

• Best for CPU temperature
• Use tower air coolers for thermal test
• When using tower air coolers, you don’t need to install additional fans on top of the case
• Keep the hard-drive cage uninstalled to have best optimal cooling for GPU cooling

GPU Mode

• Balanced cooling between GPU and CPU
• Use tower air coolers for thermal test
• When using tower air coolers, you don’t need to install additional fans on top of the case
• Better for AIO tests
• Keep the hard-drive cage uninstalled to have best optimal cooling for GPU cooling

FLEXIBLE INSTALLATION, TOOL-LESS DESIGN

Lian Li LANCOOL 217 uses a tool-less fan mounting system with rubber pads on the front and bottom fans, allowing users to easily shift between CPU-focused and GPU-focused cooling modes.

GPU Priority Mode
(Balanced cooling for CPU and GPU)

CPU Priority Mode
(Front fans raised to enhance CPU cooling)

Note: The bottom fan can be installed in the lower area for a cleaner look, or users can remove the bracket screws to install different fans based on their setup needs.

Lian Li LANCOOL 217 PCIe slot bracket can be turned 90 degrees to support vertical GPU mounting. In this setup, the bottom fan can be moved under the PSU shroud for a hidden look, giving users more flexibility when building their system.

Note: The bottom fan can be installed in the lower area for a cleaner look, or users can remove the bracket screws to install different fans based on their setup needs.

FLEXIBLE AND EASY INSTALLATION

Lian Li LANCOOL 217 comes with screws and washers for installing 120mm fans. Users can take out the screws on the two bottom fans to swap them for different ones. The PSU shroud cover can also be removed, making room for up to three 120mm fans.

DUAL PSU MOUNTING, FLEXIBLE BUILDS

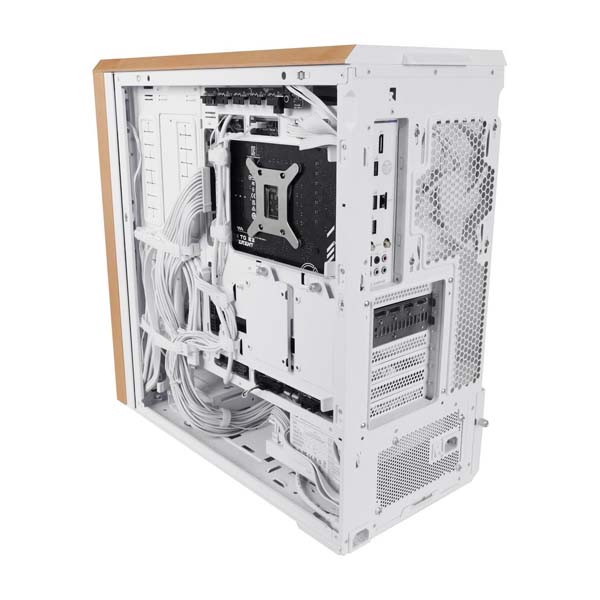

Lian Li LANCOOL 217 supports two PSU mounting ways, giving the users more options based on the PSU size, cable routing, and overall build layout. This flexible design makes it easier to set up the system, enhancing convenience and compatibility.

(Standard Mode)
When the PSU connectors face the front, it supports ATX PSU up to 220mm long, which is suitable for most standard installs.

Note: Standard mode only supports one HDD cage. If users want to install two HDD cages, please switch to rotated mode.

(Rotated Mode)
When the PSU is turned 90° with the connectors facing the right side, it supports compact PSU up to 180mm. This optimizes cable routing space and allows the fan to directly cool the PSU for improved cooling efficiency. Users can also move the two included bottom fans under the bracket for a hidden look, making the build cleaner and more organized.
