j5create JCD543 USB C Docking Station Supports up to 3 Display Simultaneously
Original price was: ₹15,090.00.₹8,844.00Current price is: ₹8,844.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
j5create JCD543 USB C Docking Station Supports up to 3 Display Simultaneously | HDMI, DisplayPort, VGA, 100W PD Fast Charging, Gigabit Ethernet | Comes with Type C Cable Compartment (JCD543)
Feature

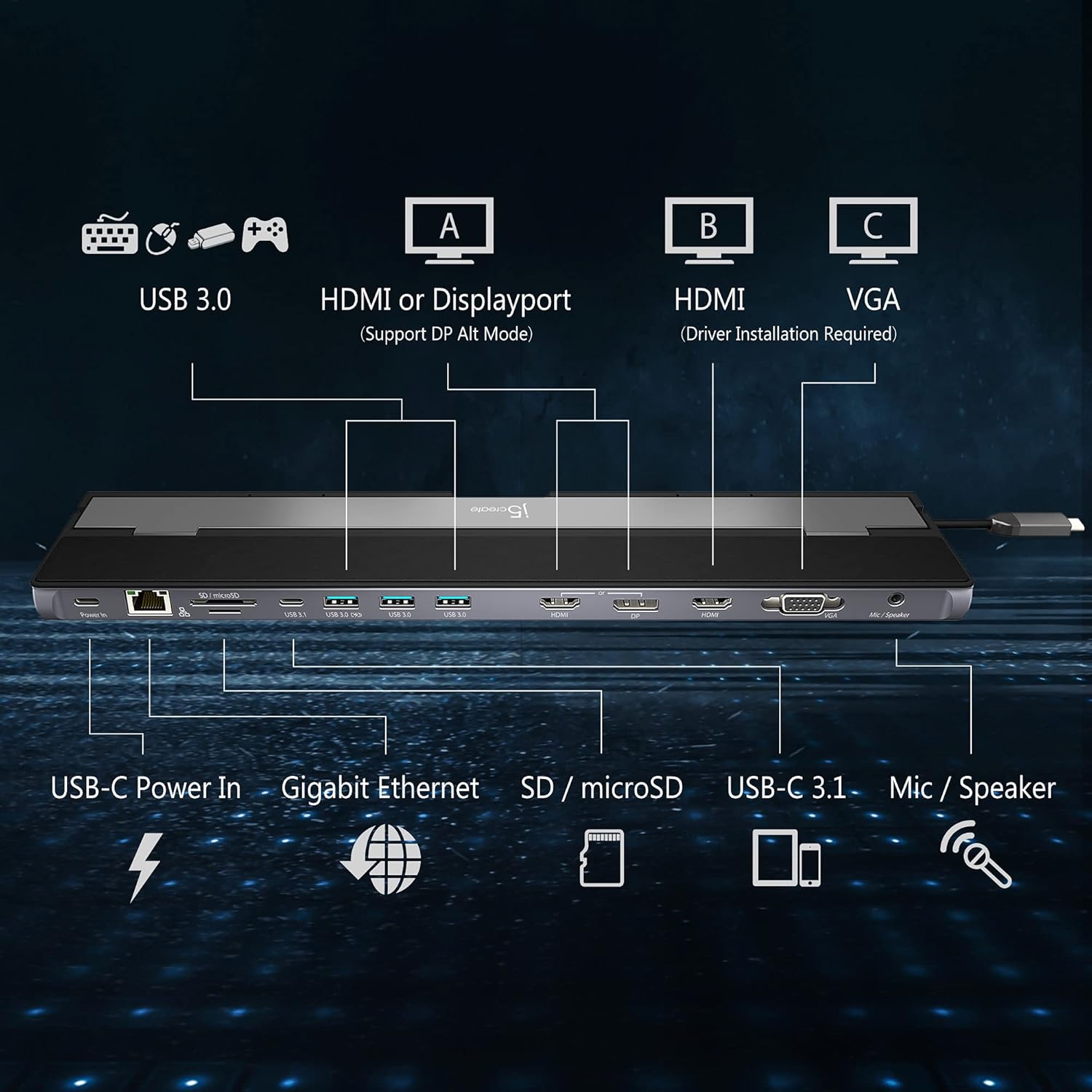

- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x1；Power delivery adapter in port x1
- USB™ Type-A downstream port Gen 1 5G x3
- DisplayPort™ Alt mode supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- Dual output through USB™ graphic HDMI™ with a resolution of 4K @ 30Hz and VGA with the resolution of 1920 x 1080 (download driver here)
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm
The USB-C™ Triple Monitor Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.
These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.
| Category | Specification |
|---|---|
| Host Interface | USB-C™ Male Connector (with cable) |
| Video Outputs | HDMI™ ×2 (Female)DisplayPort™ ×1 (Female)VGA ×1 (Female) |
| USB-C™ Ports | USB-C™ Downstream Port ×1USB-C™ Power In Port ×1 (PD 3.0) |
| USB™ Ports | USB Type-A 3.1 Gen1 (5 Gbps) ×3BC 1.2 Port ×1 |
| Ethernet Port | RJ45 Gigabit Ethernet ×1 |
| Card Slots | SD™ 3.0 ×1microSD™ 3.0 ×1 |
| Audio | Combo Audio Jack (Mic + Speaker) |
| Power Mode | Bus-Powered or Self-Powered |
| DisplayPort™ (Alt Mode) | Up to 4K @ 30 Hz |
| HDMI™ Resolution | Up to 4K @ 30 Hz |
| VGA Resolution | Up to 1920 × 1080 @ 60 Hz |
| Ethernet Speed | 1000 Mbps (Half/Full Duplex) |
| Ethernet Standards | IEEE 802.3az, 802.3, 802.3u, 802.3ab, 802.3x |
| Ethernet Features | Wake on LAN, Suspend Mode, Remote Wakeup (Magic Packet™ / Microsoft® Wakeup Frame)IEEE 802.1Q VLAN Tagging2 VLAN ID Filtering |
| Main Body Dimensions (W × H × D) | 82.5 × 23.4 × 350 mm (3.24 × 0.92 × 13.78 in) |
| USB-C™ Cable Length | 450 mm (1.5 ft) |
| Weight | Approx. 300 g (0.66 lbs.) |
| Storage Temperature | -10°C to 65°C |
| Storage Humidity | < 85% (Non-condensing) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | < 85% (Non-condensing) |
| Brands |
j5create |
|---|---|
| color |
Grey |
| Connection Type |
USB |
| Warranty |
2 Year |
