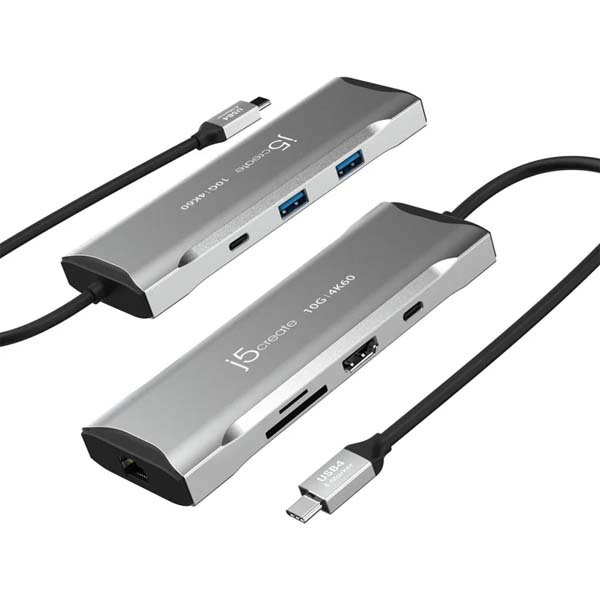

j5create JCD393 4K60 Elite USB-C 10Gbps Mini Dock
Original price was: ₹13,290.00.₹7,737.00Current price is: ₹7,737.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
j5create JCD393 4K60 Elite USB-C 10Gbps Mini Dock
Feature
Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.
This USB-C® 10Gbps mini dock with DisplayPort™ 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB™ SuperSpeed 10Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network.
The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
Features
- Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backward compatible with USB™ 3.2/3.1
- Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
- Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
- Extending one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS
- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- Charge and power connected laptop and peripherals with 100W Power Delivery
- SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required
All the connections you need for maximum productivity
Stunning 4K HDMI Output
Ensures a high quality visual experience whether you are working, watching movies, or playing games.
High-Refresh Gaming Experience
Supports 120 Hz at 1440p QHD resolution for a smooth gaming experience with sharp images
High-Speed PD Pass-Through Charging
Charging your laptop and powering up connected peripherals with up to 100W of PD pass-through charging.
| Category | Specification |
|---|---|
| Warranty | 2 Year Limited |
| Host Connector | 1 × USB-C® Male |
| Video Output | 1 × HDMI™ Female |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Support | Yes (2.1 via HDMI™) |
| Ports | 1 × USB-C® SuperSpeed 10Gbps2 × USB™ Type-A SuperSpeed 10Gbps1 × USB-C® Power Delivery 3.0 & USB™ 5Gbps1 × 4K HDMI™1 × SD™ & microSD™ 4.0 Card Reader1 × RJ45 Gigabit Ethernet |
| Maximum Display Resolution | 3840 × 2160 |
| Maximum Refresh Rate | 3840 × 2160 @ 60 Hz2560 × 1440 @ 120 Hz1920 × 1080 @ 144 Hz (Windows®) |
| Displays Supported | 1 |
| Maximum Data Transfer Rate | 10 Gbps |
| Compatible Networks | 10 / 100 / 1000 Mbps |
| Power Delivery | Up to 100 W via USB-C® |
| Power Consumption | ≤ 400 mA |
| Input Voltage / Current | Up to 20 V / 5 A |
| Output Voltage / Current | Up to 20 V / 4.25 A |
| Power Source | Bus-powered or Self-powered |
| Color | Space Grey |
| Enclosure Material | Aluminum |
| Cable Length | 200 mm (7.87 in.) |
| Product Dimensions (W × D × H) | 138 × 50 × 16 mm |
| Product Weight | 107 g (3.77 oz) |
| Storage Temperature | -17°C to 68°C (0°F to 155°F) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | -1°C to 41°C (30°F to 116°F) |
| Operating Humidity | < 85% non-condensing |
| Brands |
j5create |
|---|---|
| color |
Grey |
| Connection Type |
RJ45 ,USB C |
| Warranty |
2 Year |
