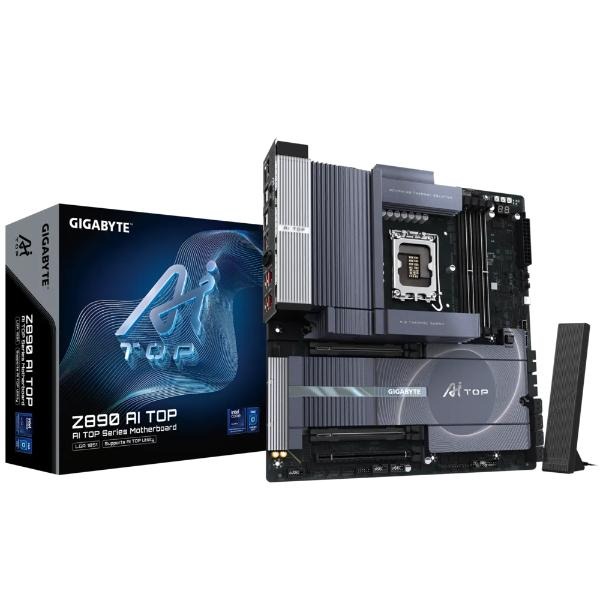

Gigabyte Z890 AI TOP LGA1851 E-ATX Motherboard
Original price was: ₹79,499.00.₹61,620.00Current price is: ₹61,620.00. (Inclusive of GST)
Out of stock
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Description
Gigabyte Z890 AI TOP LGA1851 E-ATX Motherboard
- Training your own AI on your desk
- Supports Intel® Core™ Ultra processors (Series 2)
- Twin Digital 16+1+2 phases VRM solution
- Ultimate Scalibility : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
- Next-gen Connectivity : Dual Thunderbolt™ 5 Type-C with DP-Alt, HDMI
- Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH : Auto-Overclocking Software by AI models
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- Reinforced Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- ESSential High-Fidelity Audio : ESS9260 DAC
- Gigabyte WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
| Specification | Details |
|---|---|
| CPU | LGA1851 socket, supports Intel® Core™ Ultra Processors; L3 cache varies with CPU (refer to CPU Support List). |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Supports DDR5 up to 9500(O.C) MT/s; 4 x DDR5 DIMM sockets (max 256GB, 64GB per DIMM); dual-channel architecture; supports ECC and non-ECC un-buffered memory; XMP support. |
| Onboard Graphics | Integrated Intel® HD Graphics and Thunderbolt™ 5 Controller; 2 x Thunderbolt™ 5 (USB4® Type-C®) ports up to 7680×4320@60Hz; 1 x Thunderbolt™ 4 (USB4® Type-C®) up to 5120×2880@60Hz; 1 x HDMI port up to 4096×2160@60Hz. |
| Audio | ESS ES9260 CODEC (rear), Realtek® ALC897 CODEC (front), HD Audio, 2-channel. |
| LAN | Dual Marvell® AQtion AQC113C 10GbE LAN chips (supports 10/5/2.5/1 Gbps and 100 Mbps). |
| Wireless Communication | Intel® Wi-Fi 7 BE200; supports 802.11a/b/g/n/ac/ax/be; Bluetooth 5.4; supports 2.4/5/6 GHz bands and 11be 320MHz (requires Windows 11 SV3). |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 5.0 x8 (CPU, shared with x16 slot), 1 x PCIe 4.0 x4 (Chipset); supports GPUs or NVMe SSDs in specific slots. |
| Storage Interface | CPU: 1 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2; Chipset: 2 x M.2 PCIe 4.0 x4/x2; 8 x SATA 6Gb/s (4 via Chipset + ASMedia® ASM1164); RAID support for NVMe and SATA. |
| USB Ports | Thunderbolt™ 5 Controller: 2 x Thunderbolt™ 5 (USB Type-C®) on back; Chipset: 1 x USB4® Type-C®, 1 x USB 3.2 Gen 2×2 Type-C®, 2 x USB 3.2 Gen 2 Type-A (red), 2 x USB 3.2 Gen 1, plus internal headers for USB 3.2 Gen 1, Gen 2, and USB 2.0. |
| Internal I/O Connectors | 24-pin ATX, 2 x 8-pin ATX 12V, CPU & system fan headers, RGB & addressable LED headers, USB 3.2 & USB 2.0 headers, power/reset buttons, TPM header, noise detection header, M.2 slots, SATA connectors, Thunderbolt™ 4 (USB4® Type-C®) port. |
| Back Panel Connectors | 1 x DisplayPort In, 1 x HDMI, 2 x audio jacks, 2 x Thunderbolt™ 5 (USB Type-C®), 2 x USB 3.2 Gen 1, 6 x USB 3.2 Gen 2 Type-A (red), 2 x antenna connectors, 2 x RJ-45 ports. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Monitors voltage, temperature, fan speed, water cooling flow rate; includes fan fail warning, fan speed control, and noise detection. |
| BIOS | AMI UEFI BIOS, 256 Mbit flash, supports PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0. |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software. |
| Operating System | Windows 11 64-bit supported. |
| Form Factor | E-ATX, 30.5 cm x 28.5 cm |
Additional information
| Weight | 3.51 kg |
|---|---|
| Dimensions | 37.49 × 33.4 × 9.8 cm |
| Brands | GIGABYTE |
| RAM type | DDR5 |
| Motherboard Size | E-ATX |
| Socket | LGA 1851 |
| Chipset | Z890 |
| Warranty | 3 Years |
| Ean Code | 7679587330940 |
