Gigabyte Z790M AORUS ELITE AX
Gigabyte Z790M AORUS ELITE AX
Gigabyte Z790M AORUS ELITE AX
Click to enlarge
Gigabyte Z790M AORUS ELITE AX
Gigabyte Z790M AORUS ELITE AX
Gigabyte Z790M AORUS ELITE AX

Gigabyte Z790M AORUS ELITE AX (WiFi) Motherboard Supports Intel 12th, 13th & 14th Gen Processors

Gigabyte

Original price was: ₹44,000.00.Current price is: ₹20,120.00. (Inclusive of GST)

Add to wishlist
Compare
SKU: Z790M-AORUS-ELITE-AX Categories: , Tags: , , , , , , ,

Fast Shipping

100% Genuine Product

Whatsapp Support

Brand Warranty

Description

Gigabyte Z790M AORUS ELITE AX (WiFi) Motherboard

Feature

Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Features:

  • Intel® Socket LGA 1700：Z790M AORUS ELITE AX Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
  • LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  • L3 cache varies with CPU
ChipsetIntel® Z790 Express Chipset
Memory
  • Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
  • 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:

  • 1 x HDMI port, supporting a maximum resolution

Support for HDMI 2.0 version and HDCP 2.3.

  • 1 x DisplayPort, supporting a maximum resolution

Support for DisplayPort 1.2 version and HDCP 2.3

Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
LANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntel® Wi-Fi 6E AX211

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion SlotsCPU:

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:

  • 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage InterfaceCPU:

  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  • 1 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
  • 6 x SATA 6Gb/s connectors
USBChipset:

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 2.0 Hubs:

  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper

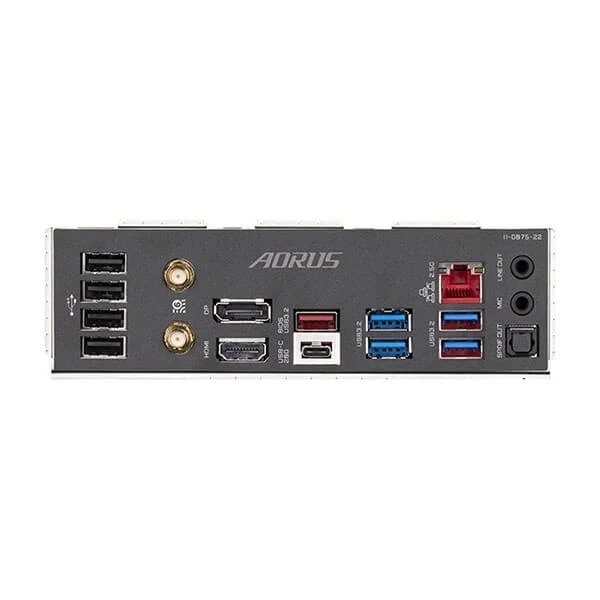

Back Panel Connectors1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O ControlleriTE® I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for GIGABYTE Control Center (GCC)
  • Support for Q-Flash
  • Support for Q-Flash Plus
  • Support for Smart Backup
Bundled Software
  • Norton® Internet Security (OEM version)
  • LAN bandwidth management software
Operating SystemSupport for Windows 11 64-bit Support for Windows 10 64-bit
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.
Additional information
Weight1.5 kg
Dimensions20 × 10 × 20 cm
BrandsGIGABYTE
Product Typegaming
Motherboard SeriesGigabyte Aorus
SocketLGA 1700
ChipsetZ790
RAM typeDDR5
PlatformINTEL
Warranty3 Years
Ean Code4719331849467
