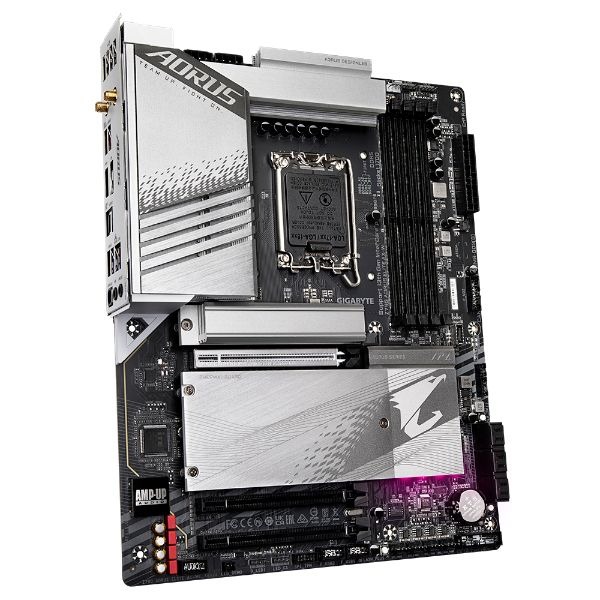

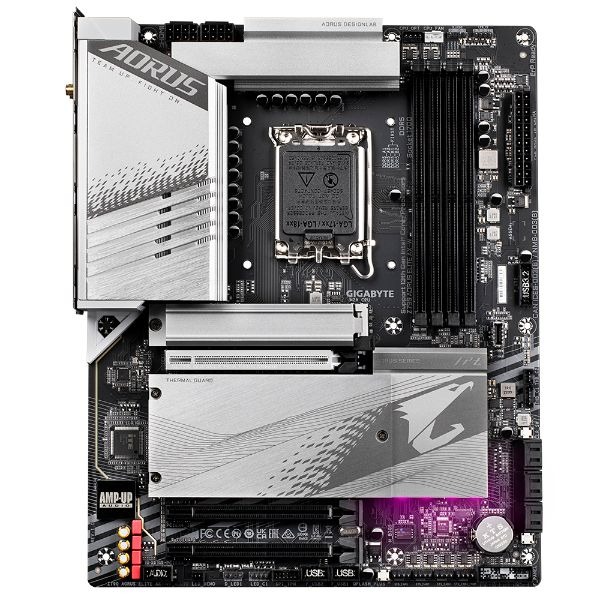

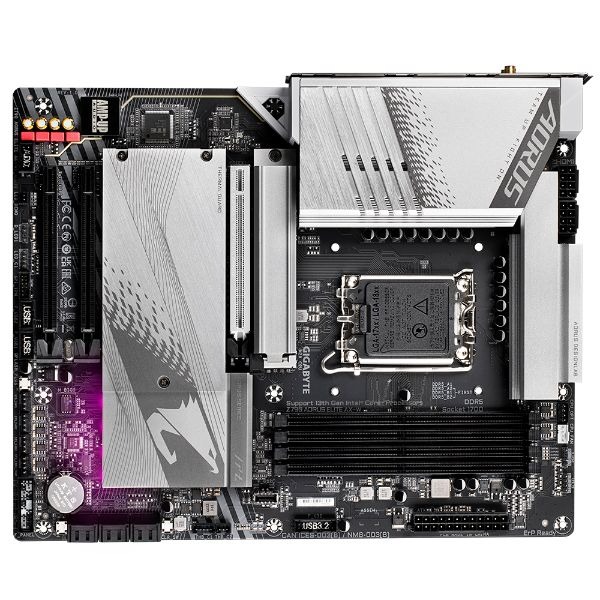

Gigabyte Z790 AORUS ELITE AX-W Intel LGA 1700 ATX Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Original price was: ₹53,000.00.₹27,999.00Current price is: ₹27,999.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Description
GIGABYTE Z790 AORUS ELITE AX-W LGA 1700(14th,13th,12th Gen) Intel Z790 X ATX Motherboard with DDR5, 4 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus
Performance
Twin Digital VRM design leverages 16 VCORE phases and 70A Power Stage to ensure electrical throughput that can handle Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 7600 MHz for enhanced multitasking and rendering performance.
Power Delivery
The Z790 AORUS ELITE AX-W features a twin 16+1+2 phases digital VRM solution with 70A Smart Power Stages. This ensures that even the most demanding processors can be powered without any problems. The motherboard also has a fully covered MOSFET heatsink and a 6mm heatpipe to ensure that the VRM remains cool under load.
Enhanced Thermal Design
Designed to maintain thermal performance and prevent system throttling, the AORUS ELITE AX-W’s fully covered MOSFET heat sink, M.2 Thermal Guard, 6mm heatpipe, 7.5 W/mK Thermal Pad, and 6-layer 2x copper PCB work together to ensure that onboard components are safe under heavy loads. Smart Fan 6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.
Networking
The Z790 AORUS ELITE AX-W features a 2.5GbE LAN port and Wi-Fi 6E with Ultra-high gain antenna. The 2.5GbE LAN port provides up to 2.5x faster speeds than standard Gigabit Ethernet ports. The Ultra-high gain antenna helps to improve signal strength and range.
Front Panel USB-C Connector
The USB 3.2 Gen 2 port has a throughput up to 10 Gb/s while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.
Personalization & Customization
With an array of RGB headers, you can use GIGABYTE’s RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room. UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile according to your needs. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode.
Ultra Durable
Sporting an easy DIY design, the AORUS ELITE AX-W provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch provides quick access to your M.2 storage drives and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor.
| Model | |
| Brand | GIGABYTE |
| Model | Z790 AORUS ELITE AX-W |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors |
| Chipsets | |
| Chipset | Intel Z790 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| PCI Express 4.0 x16 | 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Onboard Audio | |
| Audio Chipset | Realtek Audio CODEC High Definition Audio |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E AX211 – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | Bluetooth 5.3 |
| Rear Panel Ports | |

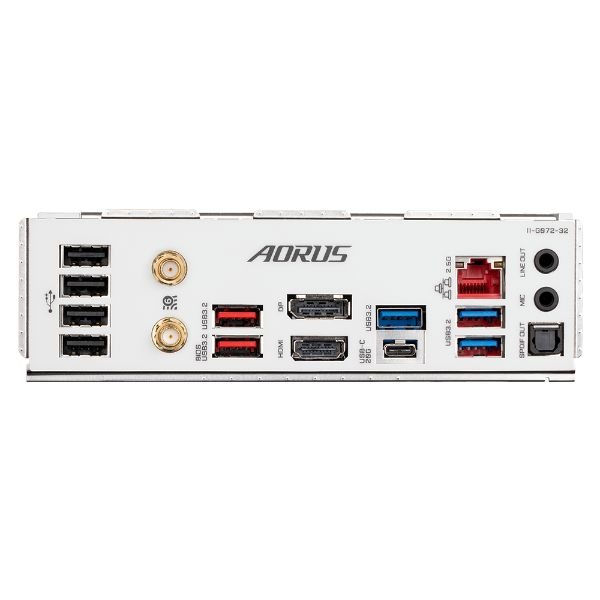

| Back I/O Ports | 1 x USB Type-C port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Windows Compatibility | |
| Windows 11 | Supported |
Additional information
| Weight | 2.10 kg |
|---|---|
| Dimensions | 24.4 × 30.5 × 3.5 cm |
| Brands | GIGABYTE |
| color | WHITE |
| Product Type | gaming |
| Chipset | Z790 |
| RAM type | DDR5 |
| Motherboard Series | Gigabyte Aorus |
| Motherboard Size | ATX |
| Platform | INTEL |
| Socket | LGA 1700 |
| Warranty | 3 Years |
| Ean Code | 4719331854799 |
