Gigabyte W880 AI TOP DDR5 Motherboard
Original price was: ₹165,999.00.₹55,910.00Current price is: ₹55,910.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Description

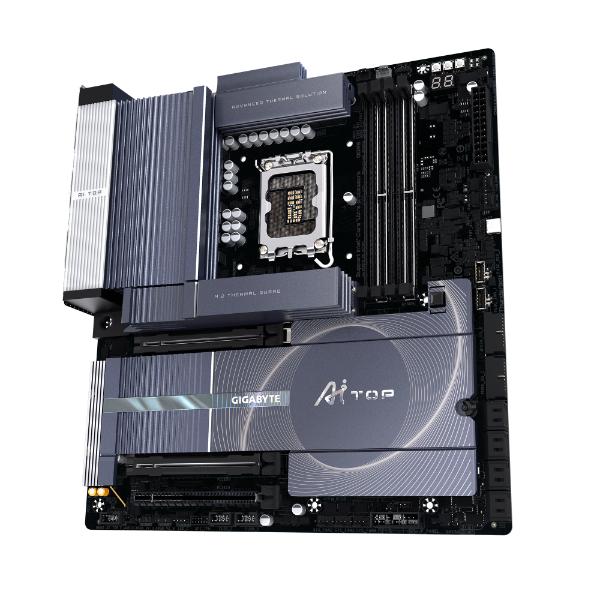

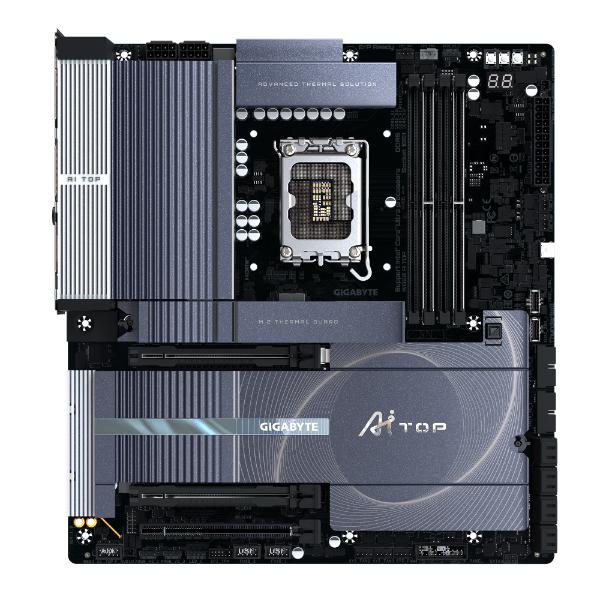

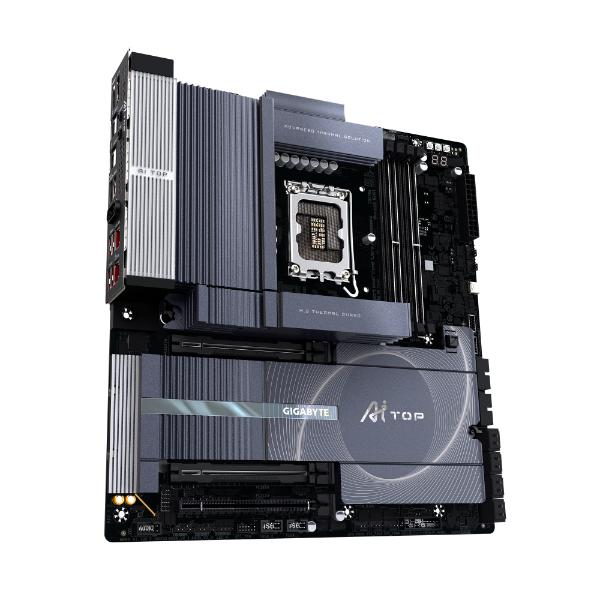

Gigabyte W880 AI TOP DDR5 Motherboard
The GIGABYTE W880 AI TOP is a premium E-ATX workstation motherboard built for next-generation Intel® Core™ Ultra Series 2 processors, offering extreme performance for AI computing, content creation, and professional workloads.
Powered by the Intel® W880 chipset, it delivers enterprise-grade reliability with ECC DDR5 memory support, dual 10GbE LAN, and Wi-Fi 7 BE200 for ultra-fast connectivity.
It also features Thunderbolt™ 5 for high-bandwidth data transfer, PCIe 5.0 expansion, and robust M.2 Gen5 storage support — making it an ideal foundation for AI inference, rendering, and heavy multitasking systems.
Designed with superior power delivery, ESS ES9260 audio, and GIGABYTE’s advanced thermal and BIOS features, it ensures ultimate stability and performance under demanding workloads.
| Specification | Details |
|---|---|
| CPU / Socket | LGA1851 socket, supports Intel® Core™ Ultra Processors (Series 2). L3 cache varies with CPU. |
| Chipset | Intel® W880 Express Chipset |
| Memory | 4 × DDR5 DIMM sockets; supports up to 256 GB (64 GB per DIMM); dual-channel architecture; supports ECC and non-ECC un-buffered memory; XMP support; supports DDR5 up to 9466 MT/s (OC). |
| Onboard Graphics | Integrated Intel® HD Graphics and Thunderbolt™ controllers; 2 × Thunderbolt™ 5 (USB4® Type-C®) ports supporting max resolution 7680×4320@60 Hz; 1 × Thunderbolt™ 4 (USB4® Type-C®) port supporting max resolution 5120×2880@60 Hz; 1 × HDMI port supporting max resolution 4096×2160@60 Hz. |
| Audio | ESS ES9260 CODEC (rear), Realtek® ALC897 CODEC (front), High Definition Audio, 2-channel output. |
| LAN | Dual Marvell® AQtion AQC113C 10 GbE LAN chips (supports 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps). |
| Wireless Communication | Intel® Wi-Fi 7 BE200, supports 802.11a/b/g/n/ac/ax/be; Bluetooth 5.4; 2.4/5/6 GHz bands; supports 11be 320 MHz standard (requires Windows 11 SV3). |
| Expansion Slots | 1 × PCIe 5.0 x16 (CPU); 1 × PCIe 5.0 x8 (CPU, shared with x16 slot); 1 × PCIe 4.0 x4 (Chipset); compatible with graphics or NVMe SSD. |
| Storage Interface | CPU: 1 × M.2 PCIe 5.0 x4/x2, 1 × M.2 PCIe 4.0 x4/x2; Chipset: 2 × M.2 PCIe 4.0 x4/x2; 8 × SATA 6 Gb/s (4 via Chipset + ASMedia® ASM1164); supports RAID for NVMe and SATA devices. |
| USB Ports | Thunderbolt™ 5 Controller: 2 × Thunderbolt™ 5 (USB Type-C®) on rear; Chipset: 1 × USB4 Type-C®, 1 × USB 3.2 Gen 2×2 Type-C®, 2 × USB 3.2 Gen 2 Type-A (red), 2 × USB 3.2 Gen 1, internal headers for USB 3.2 Gen 1, Gen 2, and USB 2.0. |
| Internal I/O Connectors | 24-pin ATX, 2 × 8-pin ATX 12V, CPU and system fan headers, RGB and addressable LED headers, USB 3.2 and USB 2.0 headers, power/reset buttons, TPM header, noise detection header, M.2 slots, SATA connectors, Thunderbolt™ 4 (USB4® Type-C®) port. |

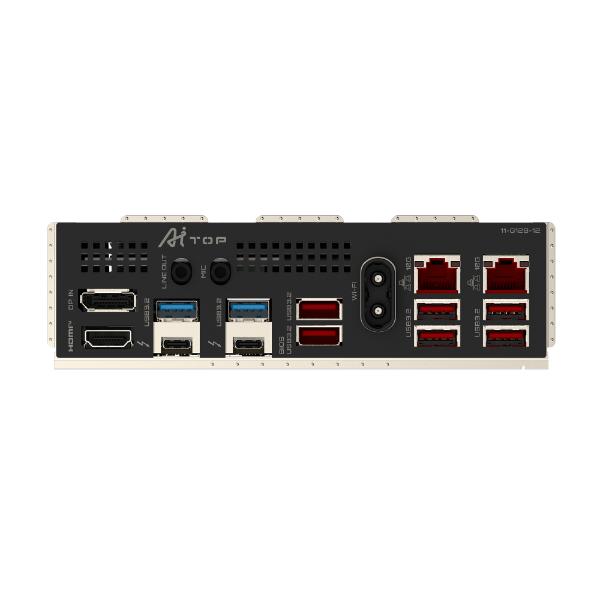

| Back Panel Connectors | 1 × DisplayPort In, 1 × HDMI, 2 × audio jacks, 2 × Thunderbolt™ 5 (USB Type-C®), 2 × USB 3.2 Gen 1, 6 × USB 3.2 Gen 2 Type-A (red), 2 × antenna connectors, 2 × RJ-45. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control, noise detection. |
| BIOS | AMI UEFI BIOS, 256 Mbit flash, supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software. |
| Operating System | Windows 11 64-bit supported. |
| Form Factor | E-ATX, 30.5 cm × 28.5 cm. |
Additional information
| Weight | 1.5 kg |
|---|---|
| Dimensions | 30.5 × 28.5 cm |
| Brands | GIGABYTE |
| RAM type | DDR5 |
| Motherboard Size | E-ATX |
| Socket | LGA 1851 |
| Chipset | W880 |
| Warranty | 3 Years |
