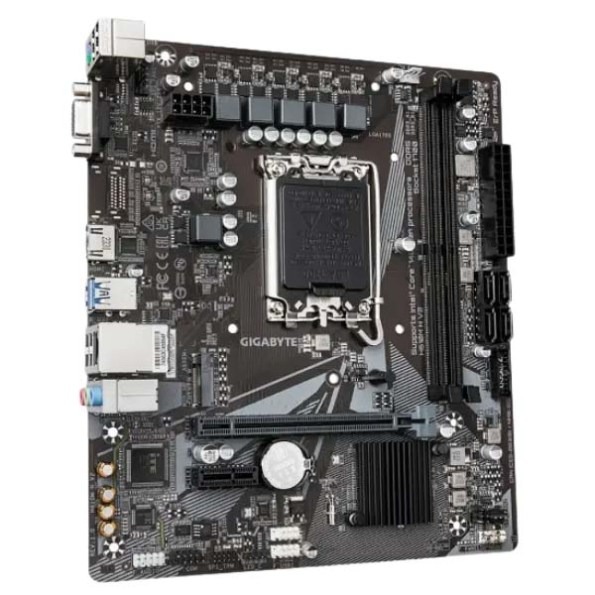

Gigabyte H610M H V2 (rev. 1.0) DDR5 Motherboard Supports Intel 12th, 13th & 14th Gen Processors

Gigabyte

Original price was: ₹15,500.00.Current price is: ₹6,480.00. (Inclusive of GST)

Add to wishlist
Compare
SKU: H610M H V2 Categories: , Tags: , , , , , , ,

Fast Shipping

100% Genuine Product

Whatsapp Support

Brand Warranty

Description

Gigabyte H610M H V2 (rev. 1.0) DDR5 Motherboard

Feature

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
  • 4+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design
* Actual support may vary by CPU.

4+1+1 Phases Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • 4+1+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation.
  • 8-pin Solid Pin CPU Power Connector.

XTREME MEMORY

GIGABYTE H610 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.

Support for DDR5 XMP Up to 5600 and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600 and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Unlock DDR5 Voltage

Programmable Mode

GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

  • GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
  • Transforms Native DDR5 memory module to Overclocked DDR5 memory
  • Increases DDR5 memory overclocking performance and capability
  • Supports all PMIC vendors for maximum compatibility

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

DDR5 Memory Upgrade

GIGABYTE BIOS offers pre-defined and retrievable profiles for users to get higher performance easily. The profiles are based on a database that is created by checking each memory IC and PMIC vendors to optimize the modules to unleash their full potential. This is a time saving feature to manually configure overclocked DDR5 memory kits.
  • Instantly upgrade memory performance
  • Overclock Native and XMP 3.0 DDR5 memory to higher frequency easily
  • No need to input dozens of memory parameters such as clock, voltage and timings
  • Built-in wide variety pre-tuned profiles database for different memory IC vendor

XMP 3.0 User Profile

Define and create your own SPD profile into Native and XMP 3.0 memory modules or apply the pre-tuned profiles to XMP 3.0 User Profile. Two user-defined profiles can be saved, loaded either locally or from/to an external storage device.

  • Two empty SPD profiles can be defined by users and carry to next computer
  • Transfer DDR5 XMP Booster profiles into XMP 3.0 User Profiles
  • Quick memory performance simulation based on user input clock and timing parameters
  • Profile save and load function to share your memory parameters online

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Headers & Sensors

Cooling Features

  • High Current Support

    Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

  • Precision Control

    Up to 7 temperature/fan speed control points for precise fan curve

  • Dual Curve Mode

    Slope/Stair dual mode for different user scenario

  • Fan Stop

    Fan can stop completely below users’ specified temperature point

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
* Photo for reference only.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.

APP CENTER

GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
BrandGigabyte
Form FactorMicro ATX Form Factor
CompaitabilityIntel
Number of Memory Slots2 x DDR5 DIMM
ChipsetINTEL
Maximum Memory Supported96 GB
Memory Type SupportedDDR5
Channel SupportedDual Channel
Expansion Slots1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Supported4 x SATA 6Gb/s
USB Ports4 x USB 2.0/1.1 ports, 4 x USB 2.0/1.1 ports on the back panel, 4 x USB 3.2 Gen 1 ports
I/O ControlleriTE® I/O Controller Chip
Internal I/O Connectors1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
OS SupportedSupport for Windows® 11 64-bit, Windows® 10 64-bit
Warranty3 Years
Additional information
Weight0.500 kg
Dimensions21.5 × 23 × 3.5 cm
BrandsGIGABYTE
colorBlack
Product TypeNormal
ChipsetH610
RAM typeDDR5
Motherboard SizemATX
Motherboard SeriesGigabyte Ultra Durable
SocketLGA 1700
Warranty3 Years
