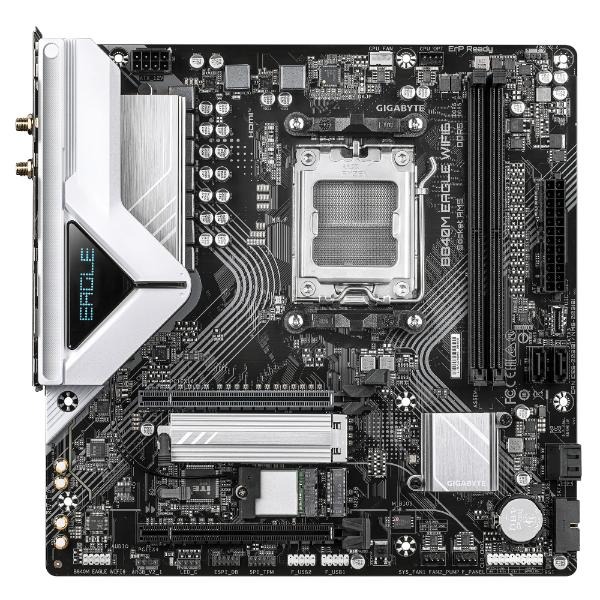

Gigabyte B840M Eagle WiFi 6 M-ATX AMD AM5 Motherboard
Original price was: ₹34,999.00.₹10,699.00Current price is: ₹10,699.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Gigabyte B840M Eagle WiFi 6 M-ATX AMD AM5 Motherboard LGA 1718
- X3D Turbo Mode ：Unleash new era gaming performance
- AMD Socket AM5 ：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital 5+2+2 phases VRM solution
- Dual Channel DDR5：2*DIMMs with AMD EXPO™Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-Latch ：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch ：M.2 heatsinks with screwless design
- Friendly UI ：Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage ：2*M.2 slots
- Efficient Thermal ：VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking ：2.5GbE LAN & Wi-Fi 6
- Extended Connectivity ：HDMI, Displayport
- PCIe UD Slot ：PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect
X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.
One-Click Acceleration :
Enhance Gaming FPS Performance with a single click.
Infinite Memory Performance
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
| Category | Details |
|---|---|
| CPU | AMD Socket AM5, support for:
(Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset | AMD B840 |
| Memory | Support for 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:
(Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6 RTL8851BE
(Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
| USB | CPU:
CPU+USB 2.0 Hub:
Chipset:
|
| Internal I/O Connectors |
|

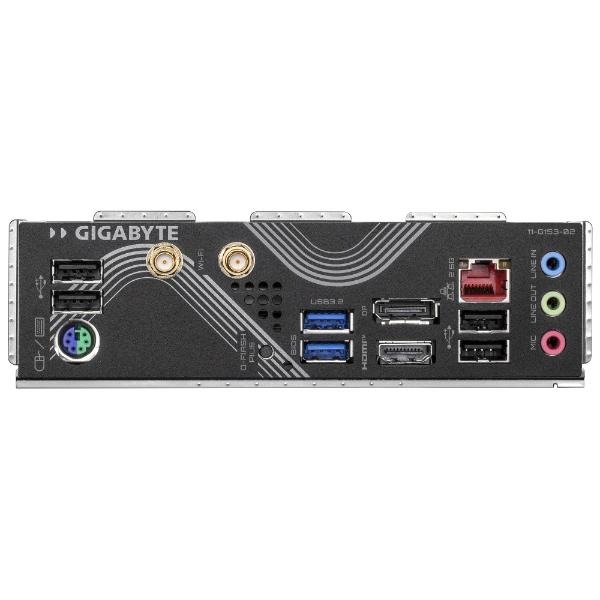

| Back Panel Connectors |
(Note) Actual support may vary by CPU. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
|
| Unique Features |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Bundled Software |
|
| Operating System |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Weight | 1.22 kg |
|---|---|
| Dimensions | 24.4 × 24.4 × 3.5 cm |
| Brands | GIGABYTE |
| color | Black |
| Product Type | Normal |
| Motherboard Size | mATX |
| Socket | AM5 |
| Warranty | 3 Years |
| Ean Code | 4711081912651 |
