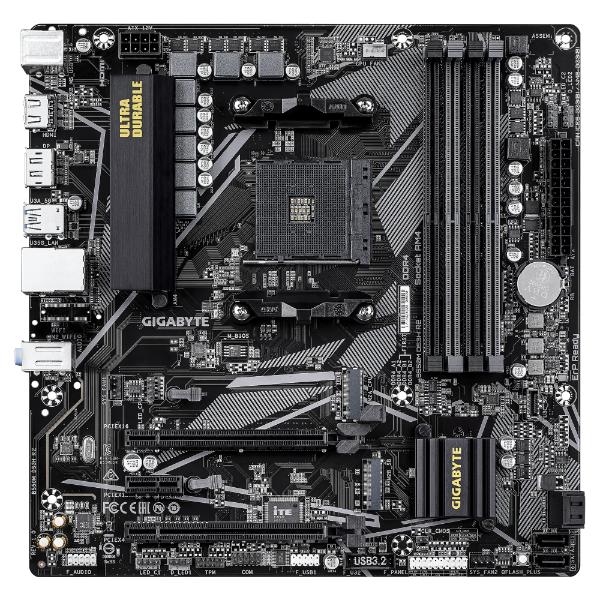

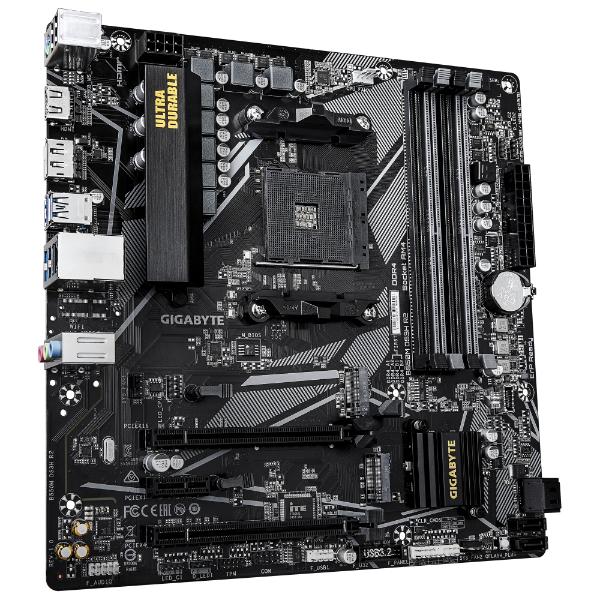

Gigabyte B550M DS3H R2 DDR4 Motherboard
Original price was: ₹12,999.00.₹8,620.00Current price is: ₹8,620.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Gigabyte B550M DS3H R2 DDR4 Motherboard
GIGABYTE B550 motherboards maximize your PC’s potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users’ computing behaviors
Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi
GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
‧ Lower temperature, smaller size, better thermal characteristics.
CONNECTIVITY
* Actual support may vary by CPU.
** Photo for reference only.
Realtek GbE LAN with Bandwidth Management
- High Current Support
Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control
Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode
Slope/Stair dual mode for different user scenario
- Fan Stop
Fan can stop completely below users’ specified temperature point
PWM/DC Fan Headers
Internal Temperature Sensors
Improve fan curve UI
Slope/Stair dual graph mode
Manual Input
EZ Tuning
Fan curve profile
With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.
With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* The external RGB LED strips and Addressable LED strips are not included with Motherboard purchase.
Individual control as you wish
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
| Specification | Details |
|---|---|
| Model | Gigabyte B550M DS3H R2 |
| Form Factor | Micro-ATX |
| CPU Socket | AMD Socket AM4 |
| Chipset | AMD B550 |
| Supported Processors | AMD Ryzen 5000 / 4000 / 3000 Series Processors |
| Memory Support | 4 × DDR4 DIMM slots (dual-channel) |
| Maximum Memory | Up to 128 GB total |
| Memory Speed (OC) | Supports up to DDR4-4733 (O.C.) |
| Expansion Slots | 1 × PCIe 4.0 ×16, 1 × PCIe 3.0 ×16 (runs at ×4), 1 × PCIe 3.0 ×1 |
| Storage Interfaces | 2 × M.2 slots (one supports PCIe 4.0/3.0), 4 × SATA 6 Gb/s ports |
| Networking | Gigabit Ethernet LAN |
| Graphics Outputs | HDMI and DisplayPort |
| Audio | Realtek Audio Codec, 7.1 Channel HD Audio |
| VRM / Power Design | 5+3 Phases Digital VRM Design |

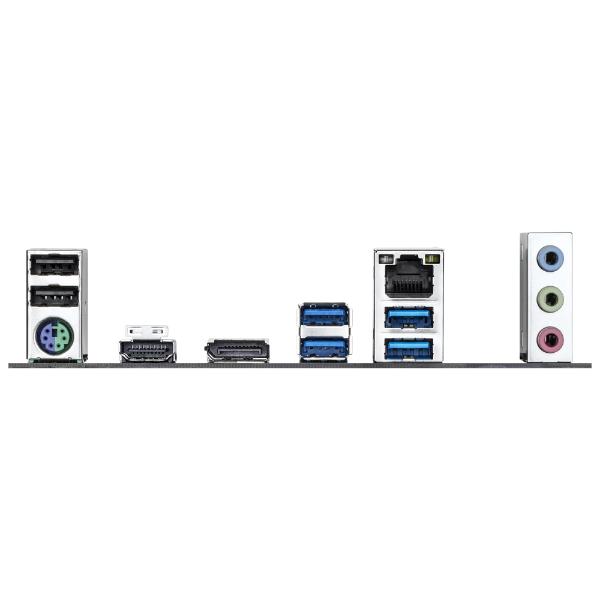

| USB Ports (Rear I/O) | 4 × USB 3.2 Gen 1, 2 × USB 2.0 |
| Internal Connectors | Front USB 3.2 Gen 1 header, USB 2.0 header, RGB & ARGB headers, Fan connectors |
| Cooling Features | Smart Fan 5 with multiple temperature sensors and hybrid fan headers |
| Dimensions (in cm) | 24.4 cm × 24.4 cm |
| Weight | Approx. 1.2 kg (packaged) |
| Weight | 1.02 kg |
|---|---|
| Dimensions | 24.4 × 24.4 × 1.5 cm |
| Brands | GIGABYTE |
| color | Black |
| Product Type | Normal |
| Socket | AM4 |
| Chipset | B550M |
| RAM type | DDR4 |
| Motherboard Size | mATX |
| Warranty | 3 Years |
