GAMDIAS Helios M1 650B 80 Plus Bronze SMPS
Feature
- 650W 80 Plus Bronze
- Deliver up to 85% Efficiency
- High Quality Capacitors Provide Superb Performance and Reliability
- Black Flat Cables
- 1 x (4+4P) EPS
- Compatible with ATX12V v2.4
- Support C6/C7 Power State
- Automatic Fan Speed Optimization
- APFC with PF Value of 0.99
- Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP
SMART, STABLE AND RELIABLE
The GAMDIAS HELIOS M1-650B features an 80 PLUS Bronze certification that guarantees 85% efficiency, and flat black cables for easy installation and cable management. It is also equipped with a 120mm hydraulic bearing smart fan that can adjust the fan speed according to temperature automatically and ensure low-noise operation.
80 PLUS BRONZE CERTIFIED
Certified with 80 PLUS Bronze, the HELIOS M1-650B delivers stable power output at up to 85% efficiency and reduces energy consumption.
SMART VENTILATION

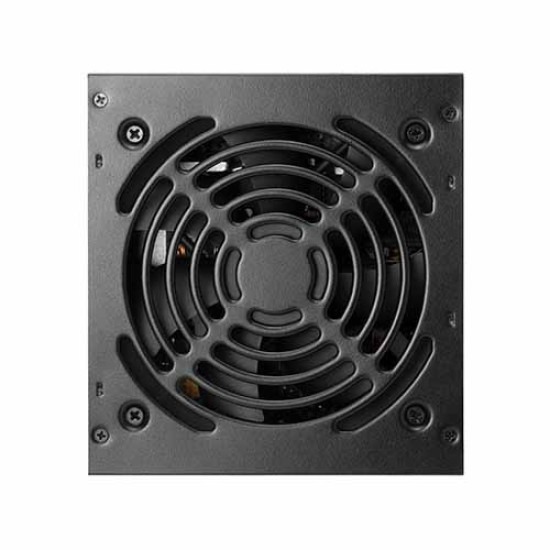

The power supply unit features automatic fan speed optimization, which allows the fan speed to be adjusted according to the detection of temperature and load. The 120mm hydraulic bearing fan ensures stable operation and longer lifespan.
BLACK FLAT CABLES
The flexible black cables are designed for easy cable installation, avoiding clutter, and increase the airflow within the case.
HEAVY-DUTY PROTECTION
The power supply unit maintains stable output voltage as well as offering multiple protections against short circuit, overload, overheating, low voltage and more.
| Category | Specification |
|---|---|
| Model | HELIOS M1-650B |
| Type | ATX12V v2.4 |
| Efficiency | Meets 80 PLUS Bronze Efficiency |
| Power Factor Correction | APFC (PF up to 0.99) |
| Support MB Sync | No |
| Dimensions (L×W×H) | 140 × 150 × 86 mm |
| Support C6/C7 Power State | Yes |
| AC Input | 100–240V / 5–10A / 47–63Hz |
| DC Output Rails | +3.3V / +5V / +12V / -12V / +5Vsb |
| Max Output Current | 18A / 18A / 48A / 0.4A / 2.5A |
| Max Output Power per Rail | 100W / 576W / 4.8W / 12.5W |
| Total Power | 650W |
| Protection Features | OVP / UVP / OPP / OCP / SCP |
| Main Power Connector | 1 × 20+4-pin |
| CPU Connector | 1 × 4+4-pin |
| PCI-E Connectors | 2 × 6+2-pin |
| SATA Connectors | 5 × (5-pin) |
| Molex Connectors | 3 × (4-pin) |
| Modular | Non-Modular |
| Flat Cable | Yes |
| Cooling System | 120 mm Hydraulic Bearing Fan |
| Silent Mode | No |
| Brands | Gamdias |
|---|---|
| color | Black |
| PSU Certification | Bronze |
| Modular | Non-Modular |
| Wattage | 650W |
| Warranty | 1 Year |
