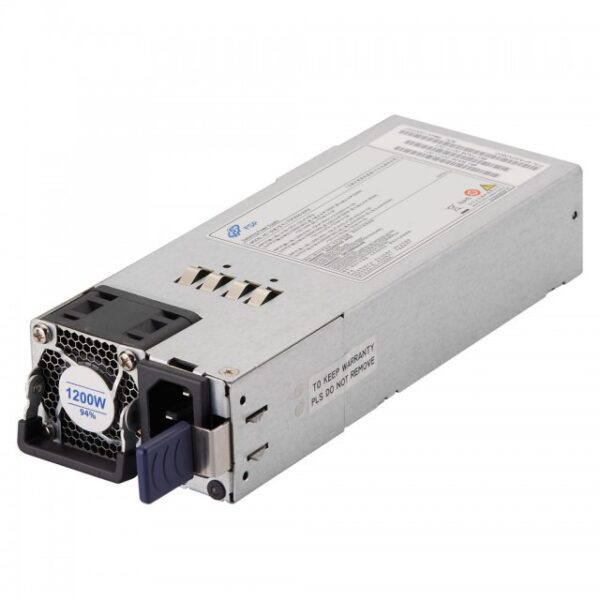

FSP 1200W CRPS PLATINUM POWER MODULE SMPS
FSP1200-20FM is a redundant power supply module base on CRPS 2.0 standard. The power supply comes to offer the total power capacity up to 1200 Watts, and provides PMbus features, which makes it to be able communicate with motherboard. In addition, the power supply is ideally the best choice for datacenter, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
| Specification | Details |
|---|---|
| Model Number | FSP1200-20FM |
| Product Type | CRPS 2.0 Redundant Power Supply Module |
| Maximum Output Power | 1200W |
| Efficiency Certification | 80 Plus Platinum |
| Form Factor | CRPS (Common Redundant Power Supply) |
| PMBus Support | PMBus 1.2 |
| Input Voltage | 90–264VAC |
| Input Frequency | 47–63Hz |
| Input Current | 8A @ 115VAC, 4A @ 230VAC |
| Main Output | +12V DC |
| +12V Output Current (100–127VAC) | 80.5A |
| +12V Output Current (200–240VAC) | 97.0A |
| +12V Standby Output | 3.0A |
| Hold-Up Time | 10ms @ 12V |
| MTBF | 250,000 Hours @ 45°C, 75% Load |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 5% to 90% RH (Non-Condensing) |
| Storage Humidity | 5% to 95% RH (Non-Condensing) |
| Operating Altitude | Up to 5,000m |
| Dimensions (L × W × H) | 185 × 73.5 × 39 mm |
| Protection Features | OCP, OVP, OTP, SCP |
| Cooling | Integrated High-Speed Fan |
| Applications | Servers, Data Centers, Storage Systems, Workstations, Industrial Controllers |
| Safety Certifications | CB 62368-1, CB 60950-1, CE, FCC, UL, BIS and others |
| Features | Hot-Swap Design, Low Ripple & Noise, High Reliability, Redundant PSU Support |
| Brands | FSP |
|---|---|
| PSU Certification | Platinum |
| Wattage | 1200W |
| Brand | FSP |
