Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold - Image 2
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold - Image 3
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold - Image 4
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold
Click to enlarge
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold - Image 2
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold - Image 3
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold - Image 4
Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold

Deepcool PN850M ATX 3.1 Power Supply 80 Plus Gold

Deepcool

Original price was: ₹14,999.00.Current price is: ₹8,893.00. (Inclusive of GST)

In stock

Add to wishlist
Add to compare
179 People watching this product now!
18 Items sold in last 12 hours
SKU: R-PN850M-FC0B-IN Categories: , Tags: , , , , ,

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Description

DeepCool PN850M ATX3.1 80 PLUS Gold Fully Modular 850W Power Supply, 120mm Dynamic FDB Fan, Compact Size, 10 Year Warranty

Deepcool PN850M ATX

NATIVE ATX3.1

FUTURE PROOF

With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The Deepcool PN850M ATX will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

GRACEFUL GOLD

Deepcool PN850M ATX 80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST

Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
12V-2X6
CABLE

PCI-E 5.1 POWER

Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2×6 cable, the PN850M provides up to 600W for modern GPUs.

SLEEVED CABLES

The PN850M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

DYNAMIC FDB FAN

The Deepcool PN850M ATX comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD

Due to the high quality of the parts utilized, the PN850M will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND

The PN850M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
No Load Operation
Surge & Inrush Protection

EXCELLENT COVERAGE

The PN850M is engineered and manufactured at such a high level that DeepCool is offering a lengthy 10 years of trouble-free limited warranty coverage.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

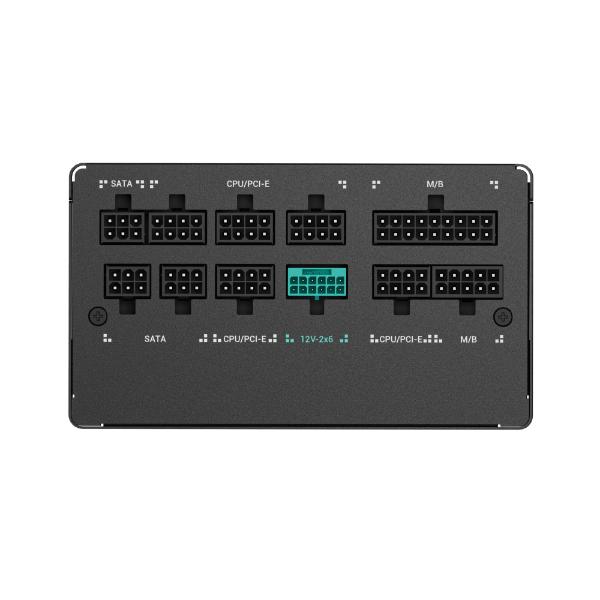

Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X2
PCI-E(6+2)Pin x 1
X3
12V-2×6(16Pin) x 1
X1
SATA x 4 + 4Pin Peripheral x 1
Additional information
Brands

DEEPCOOL
color

Black
Modular

Fully Modular
Product Type

Normal
PSU Certification

Gold
Wattage

850W
Warranty

10 Years
EAN / UPC Code

6933412719601
Specifications

Specifications

Type ATX12V V3.1
Product Dimensions 150×140×86mm (W x L x H)
Efficiency certification 80Plus Gold
Fan Size 120mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Japanese Bulk Capacitor
Power Good Signal 100-150ms
Hold Up Time ≥16ms(80% Load)
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature 0 – 40?
Regulatory CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH
Erp Regulation ErP 2014
Environment Protection WEEE/RoHS/Triman/P65
MTBF 100,000 Hours
P/N R-PN850M-FC0B-IN
