Description
Feature

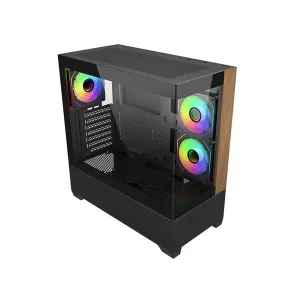

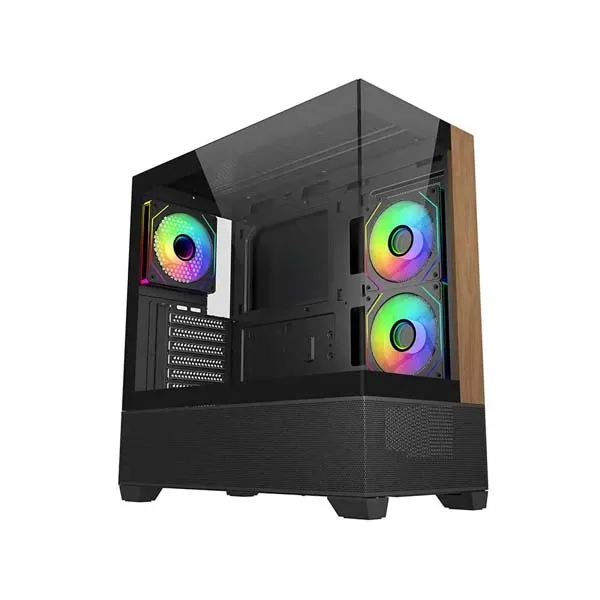

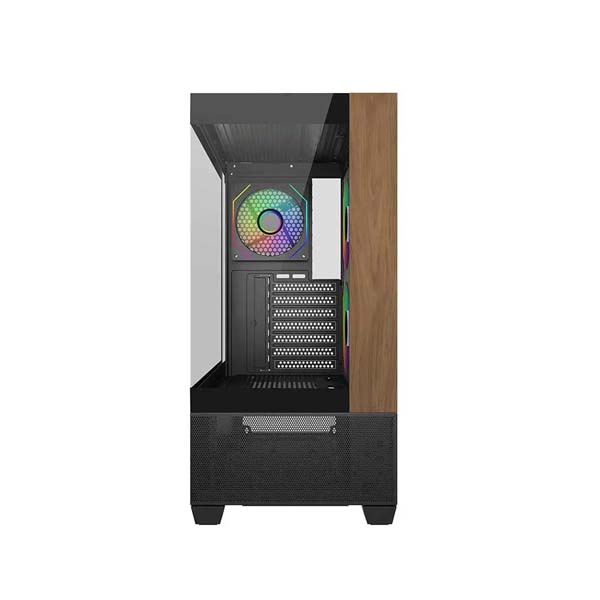

The Cooler Master Elite 690 embraces a clean, modern design, featuring dual tempered glass panels on the front and side to showcase premium components and RGB lighting. The front panel combines a natural wood-textured accent with a lower mesh intake, delivering both aesthetic warmth and effective airflow. With expansive ventilation on the top and bottom, the chassis supports versatile fan and radiator configurations to enable a powerful vertical cooling path. Whether building a high-performance showcase rig or a style-driven desktop setup, the Elite 690 delivers the perfect balance of function and form.
- The Cooler Master Elite 690 Wood brings together premium design and functionality in a compact mid-tower format. Featuring a tempered glass front panel fused with elegant wood accents, this cabinet blends aesthetic warmth with modern build capabilities, making it a standout choice for builders seeking form and function.
- Cooler Master Elite 690 Wood Micro ATX Mid Tower Cabinet Black case supports ATX, Micro-ATX, and ITX motherboards, offering 7 expansion slots and an internal volume of 42.93 liters to comfortably house a wide range of components. It accommodates up to 2 x 3.5″ HDDs and 2 x 2.5″ SSDs, ensuring solid storage capacity for everyday and enthusiast builds.
- Cooler Master Elite 690 Wood Micro ATX Mid Tower Cabinet Black terms of airflow, the Elite 690 Wood supports up to 10 fans, with mounts for 3 x 120mm or 2 x 140mm top fans, 2 x 120mm side fans, 3 x 120mm bottom fans, and 1 x 120mm rear fan. It comes pre-installed with 3 ARGB PWM fans—1 at the rear and 2 reverse-mounted fans on the side—providing vibrant lighting and efficient cooling out of the box.
- Cooler Master Elite 690 Wood Micro ATX Mid Tower Cabinet Black case is optimized for liquid cooling as well, supporting radiators up to 360mm on the top and bottom, and up to 240mm on the side mount. With 425mm GPU clearance, 170mm CPU cooler clearance, and 250mm PSU clearance, this cabinet is ready for powerful, high-performance setups.
- The top-mounted I/O panel features 1 x USB Type-C (20Gbps), 2 x USB 3.0 ports, and a 3.5mm combo audio jack, delivering seamless connectivity for your peripherals and devices.
- Cooler Master Elite 690 Wood Micro ATX Mid Tower Cabinet Black Built with a steel right panel and tempered glass left panel, this case balances durability with aesthetics. Backed by a 2-year warranty, the Cooler Master Elite 690 Wood is a uniquely crafted cabinet ideal for stylish gaming rigs and productivity builds alike.
Additional information
| Product Type |
Normal |
|---|---|
| color |
Black |
| Brands |
Cooler Master |
| Warranty |
2 Year |
| Motherboard Size |
mATX |
| Radiator Size |
360 MM |
| Case Form Factor |
Mid Tower |
Specifications
Specifications
| Product Name | Elite 690 Wood |
| Product Number | E690-KHNN-S00 |
| Color | Black |
| Front Panel | Tempered Glass + Wood |
| Side Panel (left) | Tempered Glass |
| Side Panel (right) | Steel |
| Dimensions (LxWxH) – Incl. Protrusions | 434 x 218 x 454mm |
| Dimensions (LxWxH) – Excl. Protrusions | 430 x 218 x 435mm |
| Volume (Liters Incl. Protrusions) | 42.93L |
| Motherboard Support | ATX / Micro-ATX / ITX |
| Expansion Slots | 7 |
| Drive Bays | |
| 5.25’’ ODD | N/A |
| 3.5’’ HDD | 1 (max 2) |
| 2.5’’ SSD | 1 (Max 2) |
| I/O Panel | |
| USB Ports | 1 x USB Type C 20Gbps / 2 x USB 3.0 |
| Audio In / Out 3.5 mm | 1 x 3.5mm Combo |
| Fan Support | |
| Top | 2 x 140mm / 3 x 120mm |
| Rear | 1 x 120mm |
| Side Mount | 2 x 120mm |
| Bottom | 3 x 120mm |
| Preinstalled Fan(s) | |
| Rear | 1 x 120mm ARGB PWM |
| Side Mount | 2 x 120mm ARGB PWM reverse fan |
| Radiator Support | |
| Top | 360 / 280 / 240 / 120mm |
| Bottom | 360 / 240 / 120mm |
| Side Mount | 240 / 120mm |
| Clearances | |
| CPU Cooler | 170mm |
| Power Supply | 250mm |
| Graphics Card | 425mm |
| Power Supply Support | ATX |
| Warranty | 2 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
