Description

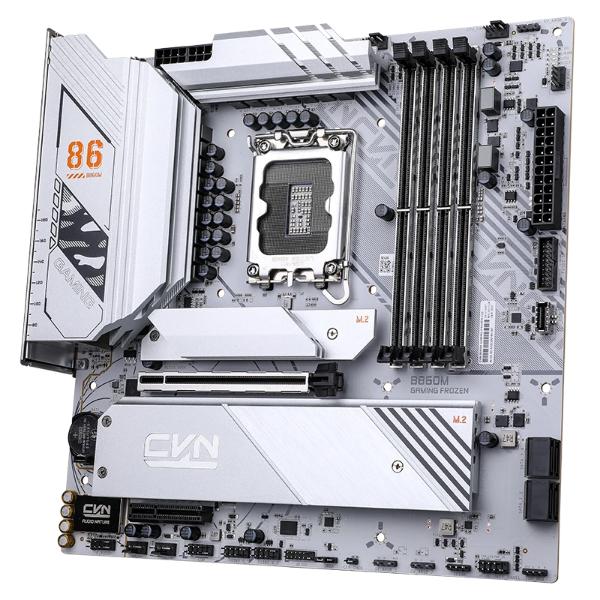

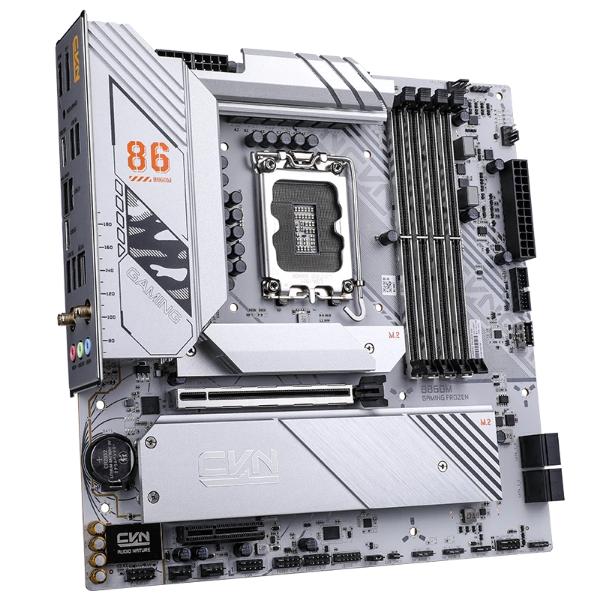

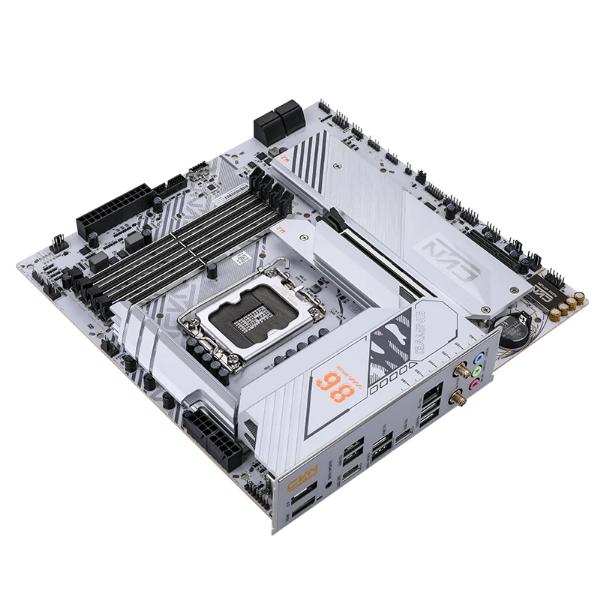

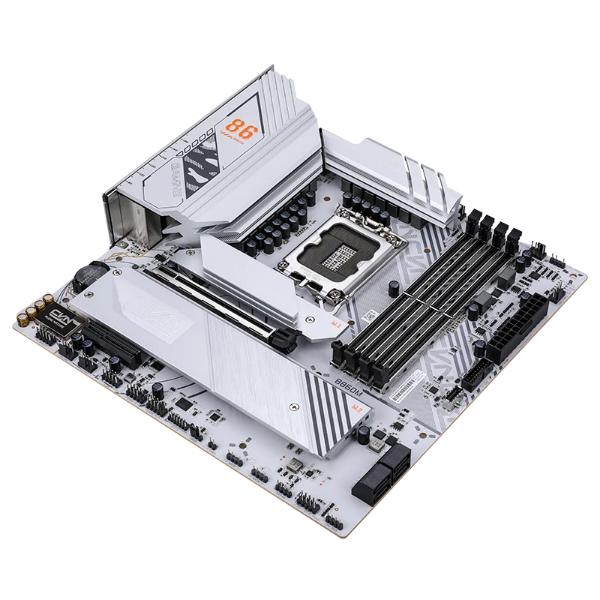

Colorful CVN B860M GAMING FROZEN V20 Intel mATX Motherboard
Feature Highlights:
CVN series exclusive customized white motherboard
CVN series customized frost heat dissipation armor, with full-cover condenser to enhance heat dissipation
Adopt 12+1+1+1 phase enhanced power supply design (Dr MOS 60A)
Provides 1 PCIe 5.0 x4 M.2 SSD slot and 2 PCIe 4.0 x4 M.2 SSD slots
Provides 1 USB 3.2 Gen 2×2 20Gbps Type-C high-speed rear interface
Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supports Bluetooth 5.2
Support iGame Center lighting control software, which can adjust the lighting effects of radiator, cooling fan and memory synchronously
I/O backplane supports one-click BIOS upgrade function
Six major protection technologies, more stable product operation
200 processes strictly tested, quality guaranteed
PCB atomization process fully upgraded
Specifications
| Model | CVN B860M GAMING FROZEN V20 |
|---|---|
| Product Series | CVN Series |
| Chipset | Intel B860 |
| Processor | Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard (*Please visit the Colorful official website http://www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory slots, supporting up to 192 GB of memory (a single slot can support a capacity of up to 48 GB) – Support DDR5-8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory – Support Intel® Extreme Memory Profile (XMP) memory technology – Support dual channel memory technology (* Please visit http://www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices – M.2_1 slot: support 2242/2260/2280 M.2 SSD (PCIe 5.0 x4, CPU channel) – M.2_2 slot: support 2242/2260/2280/22110 M.2 SSD (PCIe 4.0 x4, PCH channel) – M.2_3 slot: support 2242/2260/2280/22110 M.2 SSD (PCIe 4.0 x4, PCH channel) |
| Board I/O | Rear I/O: – 2×USB 2.0 interfaces – 4×USB 3.2 Gen 1 5Gbps Type-A interfaces – 1×USB 3.2 Gen 1 5Gbps Type-C interface – 1×USB 3.2 Gen 2×2 20Gbps Type-C interface – 1×DP 1.4 interface, Supports up to 8K 60Hz resolution – 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution – 1×2.5G network interface – 2×Wi-Fi 6 antenna interfaces – 3×Audio interfaces – 1×BIOS update button On board: – 2×USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces – 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces – 1×USB 3.2 Gen 2 Type-C slot can expand 1 USB 3.2 Gen 2 10Gbps Type-C interface – 1×CPU fan pin – 3×System fan pins – 1×Water cooling pump pin – 3×5V 3-pin ARGB pins – 1×12V 4-pin RGB pin – 1×Front audio pin – 1×Front panel pin – 1×Speaker pin – 1×COM port pin – 1×Clear CMOS jumper – 1×BIOS burner pin – 1×RGB light effect control jumper |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe 4.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control and Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX 245 x 245 mm |
Additional information
| Brands |
Colorful |
|---|---|
| Chipset |
B860 |
| Motherboard Series |
Colorful CVN |
| Motherboard Size |
mATX |
| Socket |
LGA 1851 |
| RAM type |
DDR5 |
| Warranty |
3 Years |
