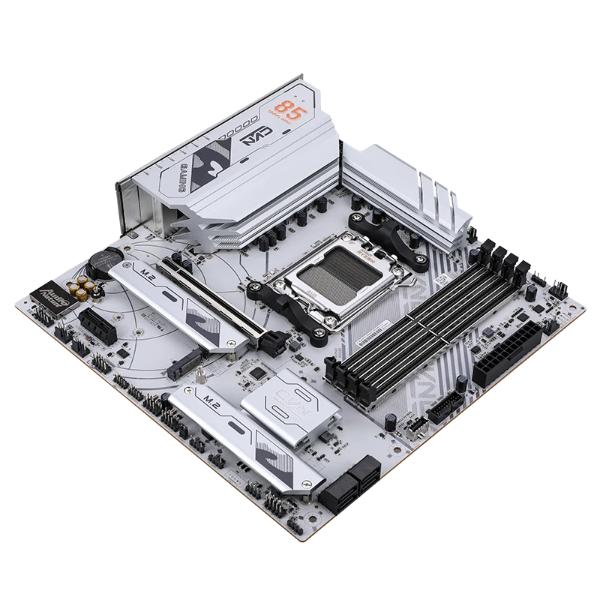

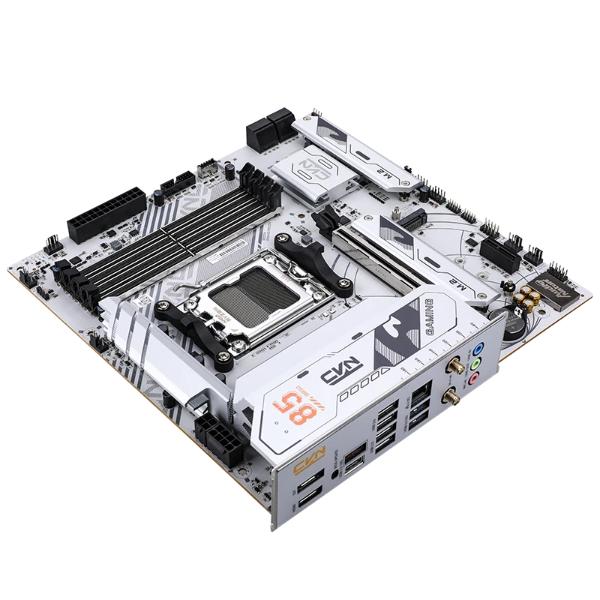

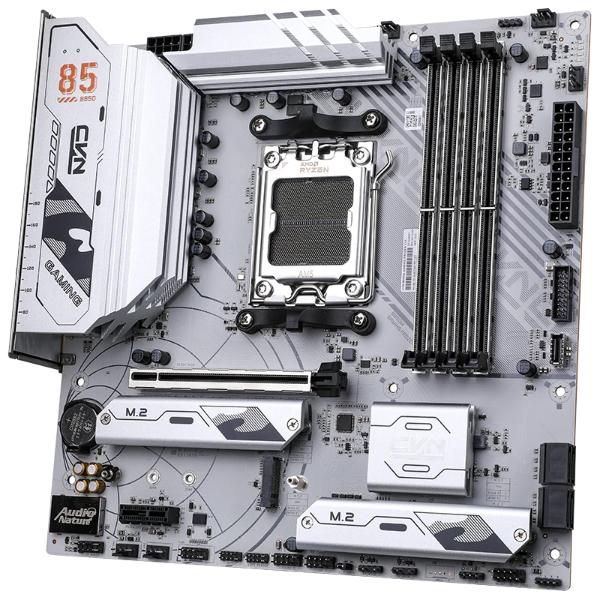

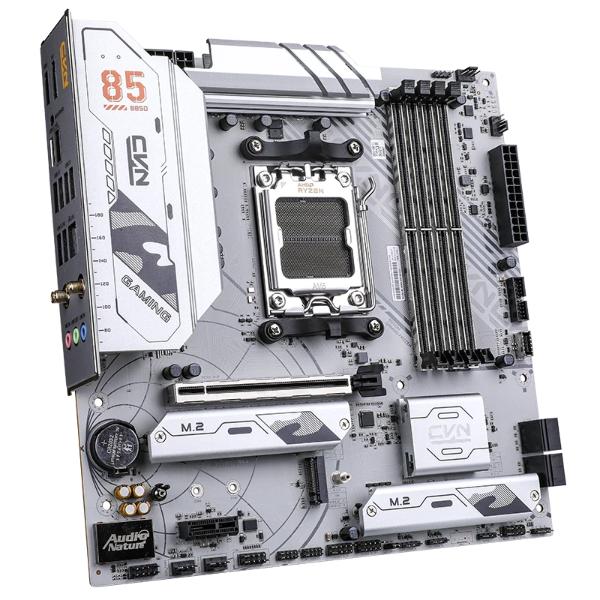

Colorful CVN B850M GAMING FROZEN V14 AMD AM5 mATX Motherboard
Original price was: ₹28,800.00.₹15,599.00Current price is: ₹15,599.00. (Inclusive of GST)
In stock
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Colorful CVN B850M GAMING FROZEN V14
Feature Highlights:
Exclusive custom white motherboard for CVN series
CVN series customized frost cooling armor, paired with fully covered condensing fins to enhance heat dissipation
Adopting a 10+2+1 phase enhanced power supply design (Dr MOS 60A)
Provide 2 PCIe 5.0 x4 M.2 SSD slots and 1 PCIe 4.0 x4 M.2 SSD slot
Provide 1 rear USB 3.2 5 Gbps Type-1 interface
Provide 1 rear USB 3.2 10 Gbps Type-1 interface
Provide 1 rear USB 3.2 Gen 2 10Gbps Type-C high-speed rear interface
Equipped with Realtek 2.5G high-speed wired network card and WiFi 6 wireless network card, supporting Bluetooth 5.2
Support iGame Center lighting effect control software, which can synchronously adjust the lighting effects of heat sinks, cooling fans, and memory
I/O backplane supports one click BIOS upgrade function
Six major protective technologies for more stable product operation
Strict testing of 200 processes ensures quality assurance
PCB atomization process fully upgraded
Specification
| Model | CVN B850M GAMING FROZEN V14 |
|---|---|
| Product Series | CVN series |
| Chipset | AMD B850 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory slots, supporting up to 192 GB memory (single slot supports up to 48 GB) -Supports DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz memory -Supports Extreme Memory Profile (XMP) memory technology -Supports EXtended Profiles for Overclocking (EXPO) Memory Technology -Supports dual-channel memory technology (*Please visit Colorful’s official website www.colorful.cn to check the latest memory compatibility list) |
| SATA Ports | 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0 and RAID 1 disk arrays with M.2 NVMe hard disk devices -M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) -M.2_2 slot: supports 2242/2260/2280 M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) -M.2_3 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) (*Whether PCIe 5.0 is supported depends on the CPU of the motherboard) |

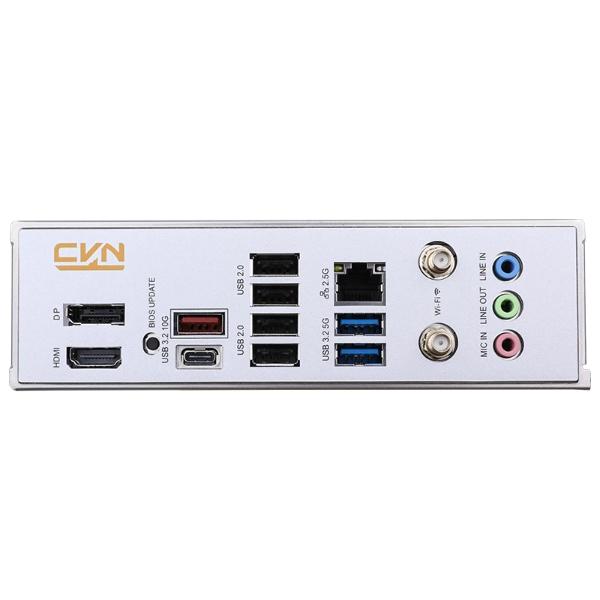

| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-C interface -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×2.5G network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) -1×BIOS update button On board : -2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 5Gbps Type-C interface -1×CPU fan pin -3×System fan pins -1×Water cooling pump pin -3×5V 3-pin ARGB pins -1×12V 4-pin RGB pin -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×Serial port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe 4.0 x1 slot |
| BIOS | 256M UEFI, supports multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8125BG 2.5Gbit network card, AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX 245mm x 245mm |
| Brands |
Colorful |
|---|---|
| Chipset |
B850 |
| Motherboard Series |
Colorful CVN |
| Motherboard Size |
mATX |
| Memory Series |
DDR5 |
| Warranty |
3 Years |
| Socket |
AM5 |
