Colorful BATTLE-AX B860M-GHA WIFI V20 Intel mATX Motherboard
Original price was: ₹24,300.00.₹16,610.00Current price is: ₹16,610.00. (Inclusive of GST)
162
People watching this product now!
20
Items sold in last 12 hours
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Description

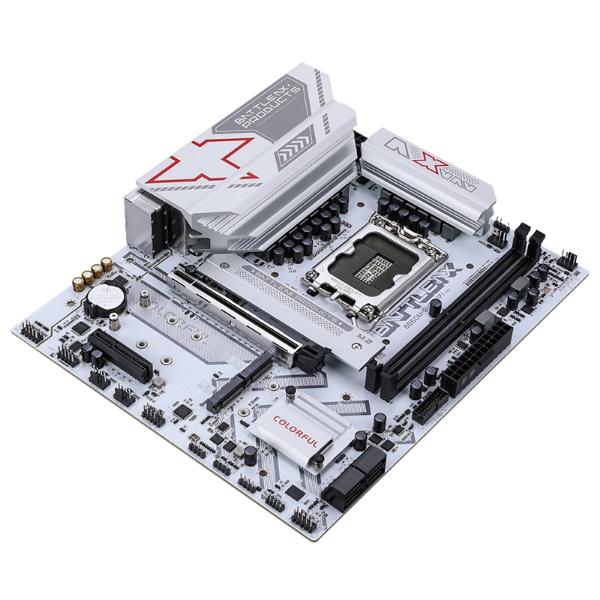

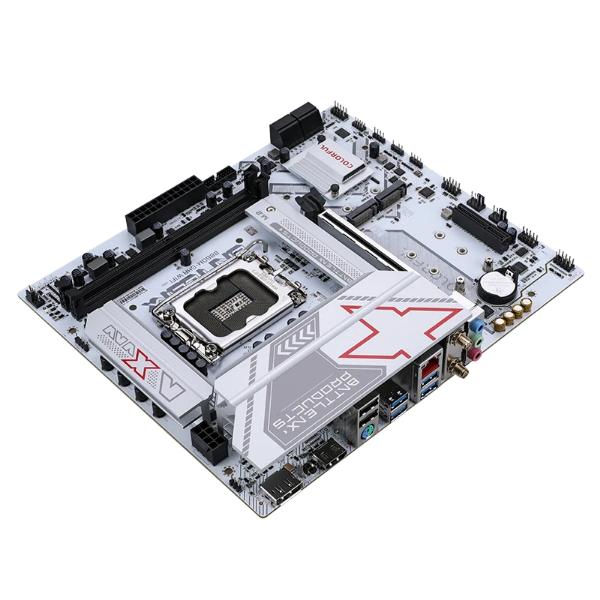

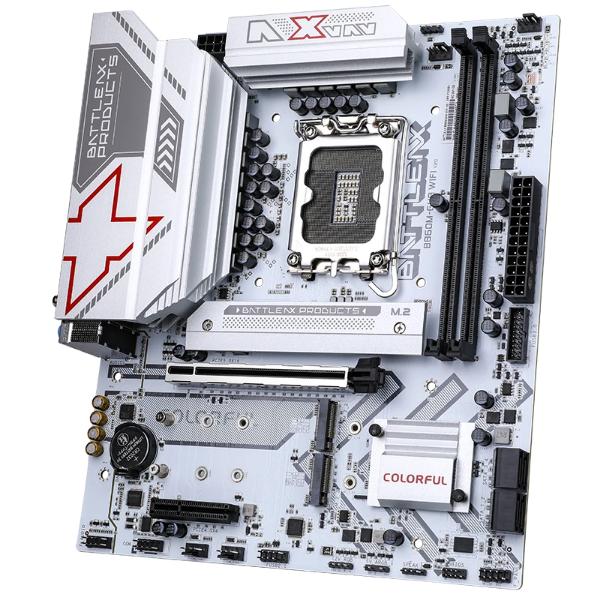

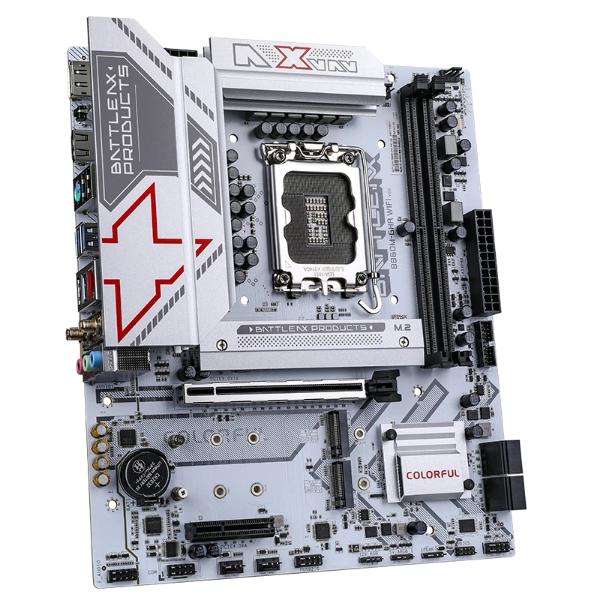

Colorful BATTLE-AX B860M-GHA WIFI V20 Intel mATX Motherboard
Feature Highlights:
BATTLE-AX series is equipped with customized frost cooling armor, with full-cover condenser for enhanced heat dissipation
Adopt 10+1+1+1 phase enhanced power supply design (Dr MOS 60A)
Provides 1 PCIe 5.0 x4 M.2 SSD slot and 2 PCIe 4.0 x4 M.2 SSD slots
Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supports Bluetooth 5.2
Support iGame Center lighting control software, which can adjust the lighting effects of radiator, cooling fan and memory synchronously
Six major protection technologies, more stable product operation
200 processes strictly tested, quality guaranteed
PCB atomization process fully upgraded
Specification
| Model | BATTLE-AX B860M-GHA WIFI V20 |
|---|---|
| Product Series | BATTLE-AX Series |
| Chipset | Intel B860 |
| Processor | Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard (*Please visit the Colorful official website http://www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR5 memory slots, supporting up to 96 GB of memory (a single slot can support a capacity of up to 48 GB) – Support DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory – Support Intel® Extreme Memory Profile (XMP) memory technology – Support dual channel memory technology (* Please visit http://www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices – M.2_1 slot: support 2242/2280 M.2 SSD (PCIe 5.0 x4, CPU channel) – M.2_2 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) – M.2_3 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |

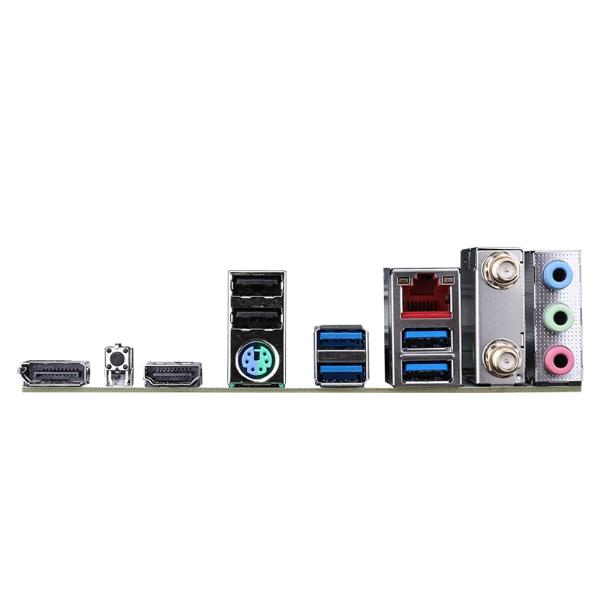

| Board I/O | Rear I/O: – 2×USB 2.0 interfaces – 4×USB 3.2 Gen 1 5Gbps Type-A interfaces – 1×PS/2 interface – 1×DP 1.4 interface, Supports up to 8K 60Hz resolution – 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution – 1×2.5G network interface – 2×Wi-Fi 6 antenna interfaces – 3×Audio interfaces – 1×CMOS clearing key On board: – 1×USB 2.0 pins can expand 2 USB 2.0 Type-A interfaces – 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces – 1×CPU fan pin – 2×System fan pins – 1×Water cooling pump pin – 2×5V 3-pin ARGB pins – 1×12V 4-pin RGB pin – 1×Front audio pin – 1×Front panel pin – 1×Speaker pin – 1×COM port pin – 1×BIOS burner pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe 4.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8125BG 2.5Gbit LAN, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels |
| Configuration | M-ATX 245 x 210 mm |
Additional information
| Brands |
Colorful |
|---|---|
| Chipset |
B860 |
| Motherboard Series |
Colorful Battle AX |
| Motherboard Size |
mATX |
| RAM type |
DDR5 |
| Socket |
LGA 1851 |
| Warranty |
3 Years |
