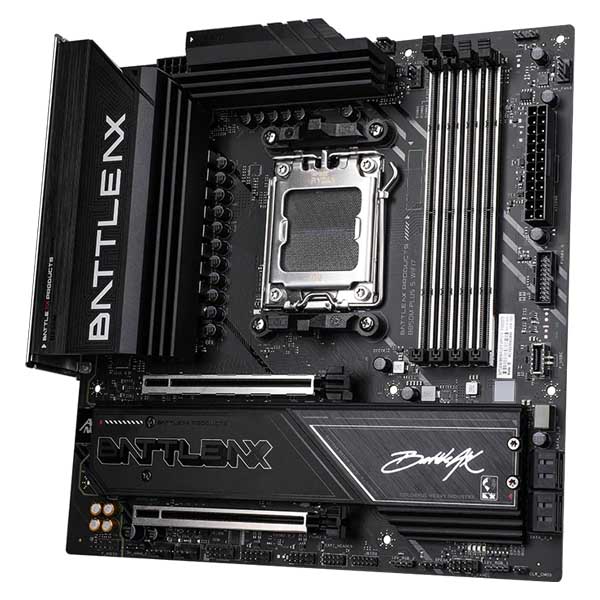

Colorful BATTLE-AX B850M-PLUS S WIFI7 V14 Motherboard
Original price was: ₹19,999.00.₹14,699.00Current price is: ₹14,699.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Description
Colorful BATTLE-AX B850M-PLUS S WIFI7 V14 Motherboard
Colorful BATTLE-AX series features custom frost cooling armor with a full-cover condenser for enhanced heat dissipation.
Adopts a 10+2+1 phase enhanced power design with F.C.C ferrite chokes (Dr MOS 55A).
Provides one PCIe 5.0 x4 M.2 SSD and one PCIe 4.0 x4 M.2 SSD slot.
Provides one USB 3.2 Gen 1 5Gbps Type-C and one USB 3.2 Gen 2 10Gbps Type-A high-speed rear port.
Equipped with a Realtek 5G high-speed wired network card and WiFi 7 wireless network card, and supports Bluetooth 5.4.
Supports iGame Center lighting control software for simultaneous adjustment of radiator, fan, and memory lighting.
The I/O backplane supports one-click BIOS upgrades.
Key Features
| Model | BATTLE-AX B850M-PLUS S WIFI7 V14 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | AMD B850 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory – Support Extreme Memory Profile (XMP) memory technology – Support EXtended Profiles for Overclocking (EXPO) memory technology – Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 10 disk arrays with SATA or M.2 NVMe hard disk devices -M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel) -M.2_2 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) (*Whether PCIe 5.0 is supported depends on the CPU of the motherboard) |
| Board I/O | Rear I/O : -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×USB 3.2 Gen 1 5Gbps Type-C interface -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 1.4 interface, supporting up to 4K 30Hz resolution -1×5G network interface -2×Wi-Fi 7 antenna interfaces -1× BIOS update button -3×Audio interfaces (audio input/audio output/microphone) On board : -1×CPU fan pin -3×System fan pins -1×Water cooling pump pin -2×USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A port -1 USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 Type-C port -2×5V 3-pin ARGB pins -2×12V 4-pin RGB pins -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specification) |
| BIOS | 256M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8126-CG 5Gbit network card, MT7925 WiFi 7 wireless network card, Bluetooth 5.4 – Wi-Fi functionality may vary depending on the operating system. – For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. – For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor’s website. – Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region. – Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer’s website for the latest instructions. |
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels |
| Configuration | M-ATX 244mm x 244mm |
