-32%
Colorful BATTLE-AX B760M-G WHITE WIFI D5 V20A Intel mATX Motherboard
Original price was: ₹18,900.00.₹12,920.00Current price is: ₹12,920.00. (Inclusive of GST)
Fast Shipping
100% Genuine Product
Whatsapp Support
Brand Warranty
Description

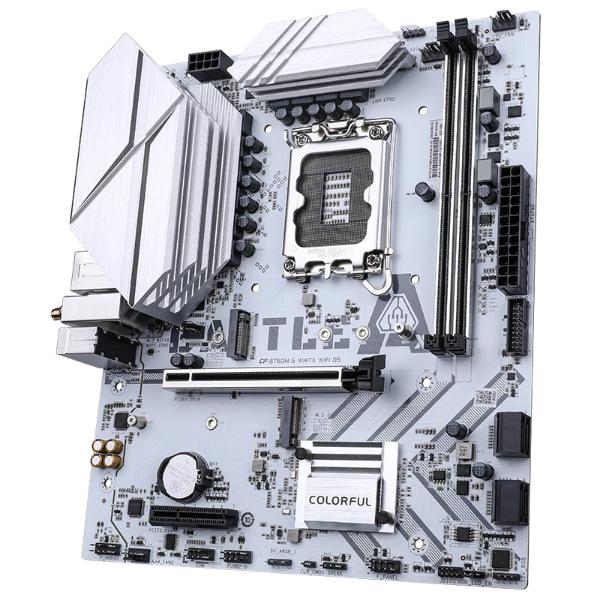

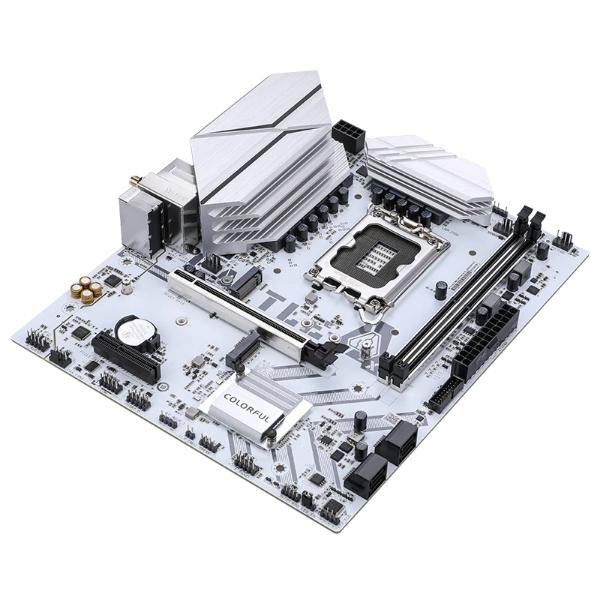

Colorful BATTLE-AX B760M-G WHITE WIFI D5 V20A Intel mATX Motherboard
Feature Highlights:
BATTLE-AX series exclusive customized white motherboard
Provide 2 xPCIe 4.0 x4 M.2 SSD slots，1 xPCle5.0x16 slot
Provide 4 xUSB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supporting Bluetooth 5.2
Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
Six protection technologies, more stable product operation
200 processes are strictly tested with guaranteed quality
PCB atomization process comprehensively upgraded
Specification
| Model | BATTLE-AX B760M-G WHITE WIFI D5 V20A |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory – Intel is supported ® Extreme Memory Profile (XMP) memory technology – supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with SATA hard disk devices – M.2_1 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) – M.2_2 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |

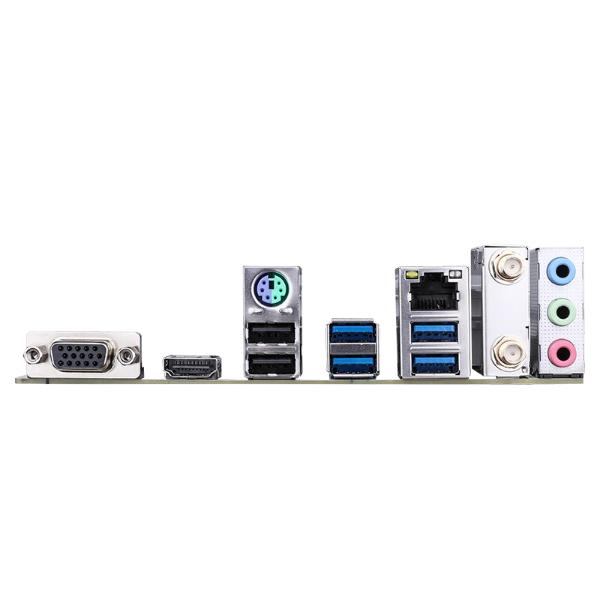

| Board I/O | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×2.5G network interface -2×Wi-Fi 6 antenna interfaces -3×Audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -2×System fan pins -1×Water cooling pump pin -1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces -2×5V 3-pin ARGB pins -1×12V 4-pin RGB pin – 1×Front audio pin – 1×Front panel pin – 1×Speaker pin – 1×Serial port pin – 1×Clear CMOS jumper – 1×BIOS burner pin – 1×RGB lighting control jumper |
| Expansion Slots | 1 PCIe 5.0 x16 slot 1 PCIe 3.0 x4 slot |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support scheduled startup, call startup |
| Hardware Monitor | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring |
| LAN | RTL8125BG 2.5Gbit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels |
| Configuration | M-ATX 245mm x 210mm |
