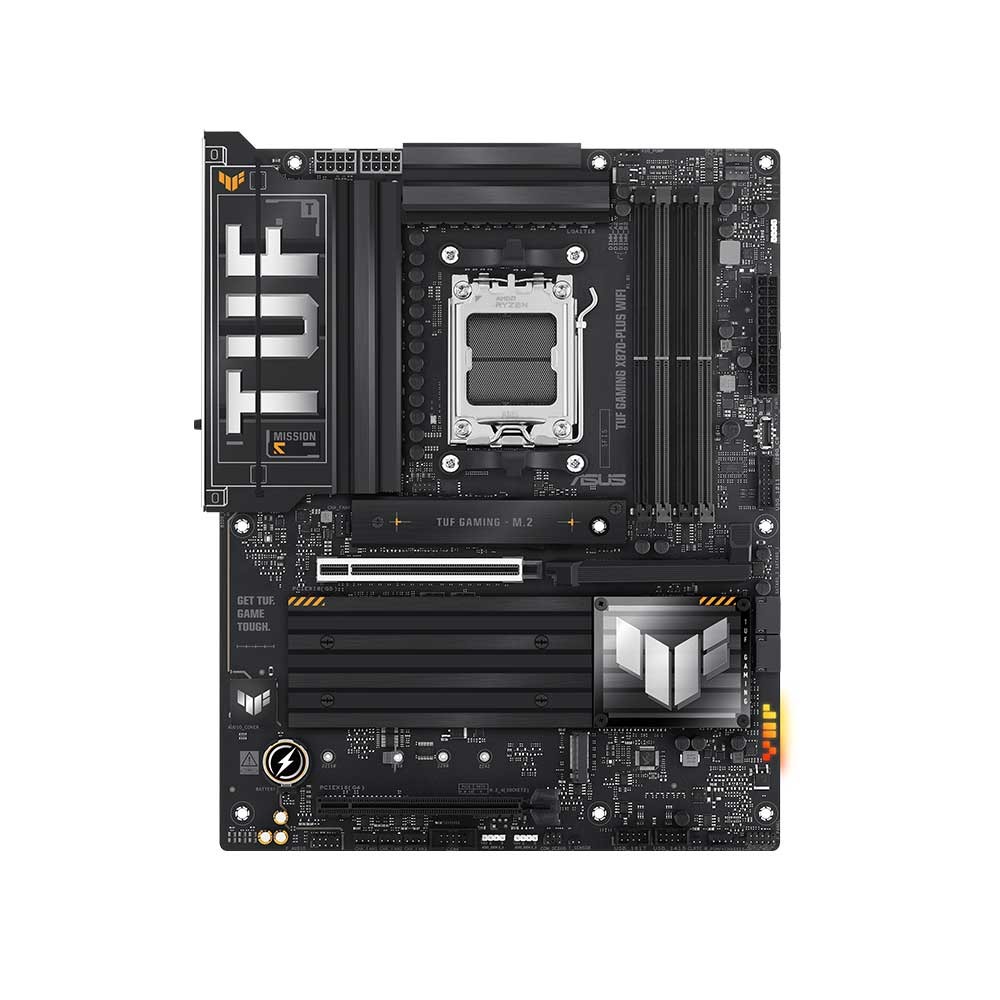

ASUS TUF GAMING X870-PLUS WiFi Motherboard

Feature

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
• Enhanced Power Solution: 16+2+1, 80A SPS power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, and AEMP to simplify setup and improve performance
• Overclocking Technologies: Dynamic OC Switcher, Core Flex and PBO Enhancement
• Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, with massive M.2 heatsinks
• Ultrafast Connectivity: Wi-Fi 7, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, dual USB4 (40Gbps) Type-C ports, front USB 20Gbps Type-C with PD Fast Charge Support
• Comprehensive Cooling: Enlarged VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
• DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, BIOS FlashBack button, Q-LED, Pre-mounted I/O shield, Q-Dashboard

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

AI Overclocking

Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II

ASUS TUF GAMING X870-PLUS WiFi Motherboard Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II

ASUS TUF GAMING X870-PLUS WiFi Motherboard Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

Intelligent

Overclocking

DYNAMIC OC SWITCHER

ASUS TUF GAMING X870-PLUS WiFi Motherboard Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.​

CORE FLEX

ASUS TUF GAMING X870-PLUS WiFi Motherboard Core Flex empowers you to smash limits farther than ever before by letting you control power and thermals in creative new ways. In its simplest form, you can set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current and temperature limits independently so that you can bend CPU performance to your will.

Intelligent

Intelligent Control

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

BIOS Q-Dashboard

ASUS TUF GAMING X870-PLUS WiFi Motherboard Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

ASUS DriverHub

ASUS TUF GAMING X870-PLUS WiFi Motherboard Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX

ASUS TUF GAMING X870-PLUS WiFi Motherboard Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

Power Saving

ASUS TUF GAMING X870-PLUS WiFi Motherboard Leverage all-around energy efficiency settings to optimize power consumption.

Armoury Crate

ASUS TUF GAMING X870-PLUS WiFi Motherboard Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Performance

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

• 16 Vcore Power (80A, SPS)
• 2 SOC Power (80A, SPS)
• 1 Misc Power (80A, DrMOS)

Eight Layered PCB design

Enhanced stability and overclocking.

This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

ProCool Power Connectors

Proprietary 8+8 pin connectors improve PSU connection.

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components

TUF chokes and capacitors offer rock-solid durability and stability.

TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Digi+VRM Control

Real-time voltage control.

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components

TUF chokes and capacitors offer rock-solid durability and stability.

TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Digi+VRM Control

Real-time voltage control.

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Performance

Memory & Storage

DRAM Overclocking Performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.

* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

DDR5 DOMINANCE

For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

M.2 PCIe 5.0 Support

This motherboard also features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

• Bandwidth (Gbps) PCIe 5.0 x4
• 128 PCIe 4.0 x4

  64 PCIe 3.0 x4

*Actual transmission speed will be lower than theoretical maximum speed.

Cooling

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Connectivity

Empowering Connection

This motherboard offers a versatile range of connectivity with PCIe 5.0, USB4^® 40Gbps and front USB 20Gbps Type-C^® connectors with Fast Charge support.

PCIe 5.0 for Graphics Card​

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

• Aggregate Bandwidth (Gbps) PCIe 3.0 x16
• 128 PCIe 4.0 x16

  256 PCIe 5.0 x16

USB4^® 40Gbps Type-C^® Port

ASUS TUF GAMING X870-PLUS WiFi Motherboard Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

Front USB 20Gbps Type-C^®

ASUS TUF GAMING X870-PLUS WiFi Motherboard This motherboard features a USB 20Gbps Type-C^® front panel connector for speedy data transfers of up to 20Gbps. And it offers Power Delivery (PD) 3.0 technology to provide up to 30W of quick charging.

Gaming

Ultrafast Networking

Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.

2.5Gb Ethernet

On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.​

WiFi 7

ASUS TUF GAMING X870-PLUS WiFi Motherboard WiFi 7 ensures stable connections and low latency.​

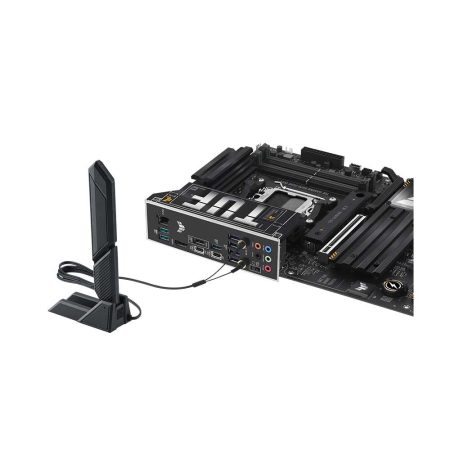

ASUS WiFi Q-Antenna

ASUS TUF GAMING X870-PLUS WiFi Motherboard ASUS WiFi Q-Antenna delivers up to 18% stronger wireless signal reception compared to the previous generation.

Realtek 7.1 Channel Audio

ALC1220P

ASUS TUF GAMING X870-PLUS WiFi Motherboard This motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

• Music Mode
• Movie Mode
• Game Mode
• Custom Audio

Lighting

Outshine The Competition

ASUS TUF GAMING X870-PLUS WiFi Motherboard ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

Addressable Gen 2 RGB Headers

ASUS TUF GAMING X870-PLUS WiFi Motherboard Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.
