Asus TUF Gaming B650 Plus WIFI Motherboard

Cooler By Design

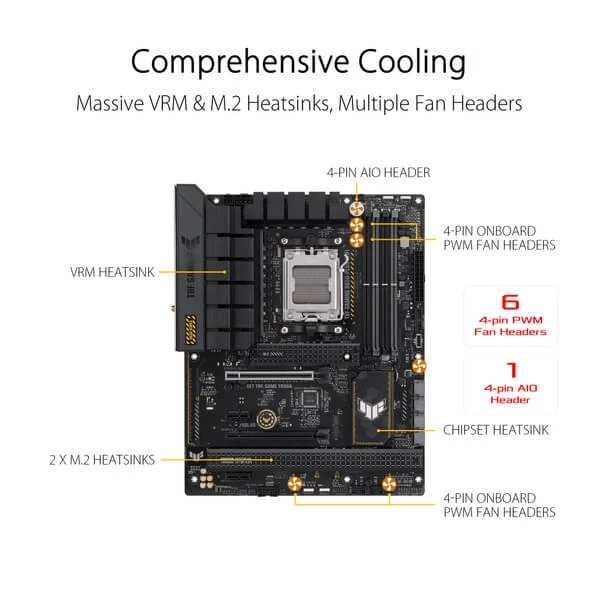

1. Enlarged VRM Heatsink

The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.

2. Optimized M.2 Heatsink Design

All M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.

DRAM Overclocking Performance

DDR5 OC 6400

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650 Plus motherboards, you can extract all of the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.

PCIe 5.0 Support

TUF GAMING B650 Plus motherboards also feature one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support for NVMe RAID configurations to take advantage of the latest available speeds.

*Actual transmission speed will be lower than theoretical maximum speed.

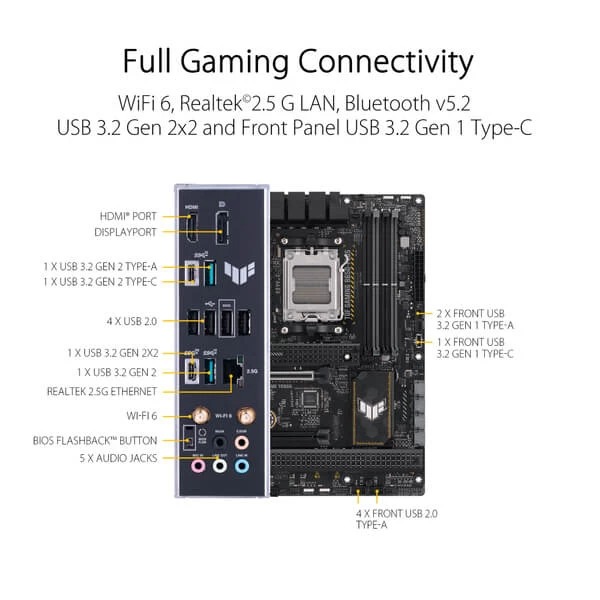

Connectivity

TUF-GAMING B650 Plus motherboards reach new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes three Type-C connections, and Thunderbolt (USB4) expands compatibility and bandwidth even further.

1. USB 3.2 Gen 2×2 Type-C

2. PCIe 5.0

3. Front USB3.2 Gen 1 Type-C

4. USB4 Support

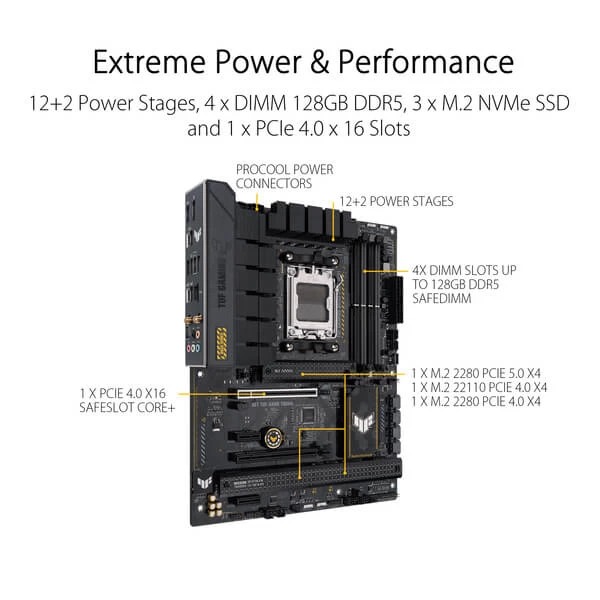

Teamed Power Stages

Asus TUF Gaming B650 Plus WIFI Motherboard 12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

ESD Guards

Asus TUF Gaming B650 Plus WIFI Motherboard ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.

WiFi 6

Asus TUF Gaming B650 Plus WIFI Motherboard the WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2 Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

Realtek 7.1 Surround Sound

The unique audio codec designed in close collaboration with Realtek for TUF GAMING B650 motherboards features an unprecedented 108 dB signal-to-noise ratio for the stereo line out and a 103dB SNR for the line in, providing pristine audio quality.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
