ASUS ROG Strix X870-A GAMING WiFi Motherboard

ASUS ROG STRIX X870-A GAMING WIFI AMD AM5 X870 ATX motherboard 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi 7, 4x M.2, PCIe 5.0, Q-Release Slim, USB4, AI OCing & Networking

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 Socket: Ready for AMD Ryzen™ 7000, 8000 and 9000 series desktop processors
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance
• ASUS ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
• Robust Power Solution: 16+2+2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Latest M.2 Support: Two onboard PCIe® 5.0 M.2 slots and two PCIe® 4.0 M.2 slots, all with substantial cooling solutions
• Abundant Connectivity: Dual USB4® Type-C ports, USB 20Gbps Type-C® front-panel connector, one USB 10Gbps port with PD 3.0 up to 30W and USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots

Elevate your build with the ROG Strix X870-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4^® ports, and WiFi 7, it’s the ultimate blend of style and performance.

Extreme Power & Performance

1. ProCool II Power Connectors
2. 16(90A)+ 2(90A)+ 2(80A) Power Stages
3. AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
4. DDR5 8000+ MT/s (OC)・ 4 x DIMM・ Dual Channel
5. EXPANSION SLOTS

   ・ 1 x PCIe 5.0 x16 SafeSlot [CPU]

   ・ 1 x PCIe 4.0 x16 Slots (x4) [Chipset]

6. 4 x M.2 Slots

   ・ 1 x M.2 22110 (PCIe 5.0 x4)

   ・ 1 x M.2 2280 (PCIe 5.0 x4)

   ・ 2 x M.2 2280 (PCIe 4.0 x4)

Comprehensive Cooling

1. VRM Heatsink
2. AIO Pump Header
3. 4 x M.2 Heatsinks
4. Chipset Heatsink

ASUS AI
INTELLIGENCE

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

Ai COOLING II

Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

*Features may vary by model.

PerformanceOVERCLOCKING

• Dynamic OC Switcher

  Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.



• Core Flex

  Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.



• PBO ENHANCEMENT

  AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.



PerformanceMEMORY

• DDR5 DOMINATION

  The Strix X870-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.



• AEMP

  ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.



PerformanceCOOLING

• M.2

  M.2 HEATSINKS, M.2 BACKPLATE



• VRM

  VRM HEATSINK ARRAY



• CPU

  CPU FAN HEADERS, AIO PUMP FAN HEADER



• CHASSIS

  4-PIN FAN HEADERS



leading Connectivity

• wifi7

  • 320MHz
  • 6GHzbands
  • 4096AQM
  • up to4.8Xultra-fast WiFi speeds

  Intel 2.5Gb Ethernet



• pcie 5.0

  Fully embracing the new standard, the Strix X870-A offers end-to-end PCIe 5.0 support.

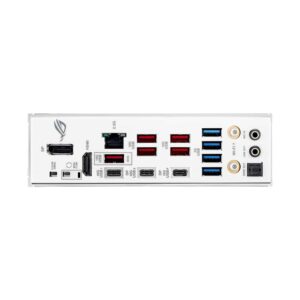

• USB PORTS

  DUAL USB4 PORTS

  USB 10Gbps
  with up to 30W PD Fast-charge

• Gaming Audio



BIOS

BIOS Q-DASHBOARD

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

UNDENIABLY ROG STRIX

The ROG Strix X870-A stands out with its striking white PCB, offering a fresh and modern aesthetic that seamlessly complements almost any system build. The matching metallic heatsinks enhance its clean, crisp look, while subtle RGB lighting on the I/O shroud allows you to either maintain a sleek, understated appearance or showcase a bold, luminous design.

OUTSHINE THE COMPETITION

ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING

When only the fastest will do, a Strix X870E/X870 motherboard delivers. With USB 4.0 onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe^® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Dare to Be Green

We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.

Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
