ASUS ROG MAXIMUS Z890 HERO Intel Z890 Chipset Motherboard
₹105,000.00 (Inclusive of GST)
73
People watching this product now!
15
Items sold in last 12 hours
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description

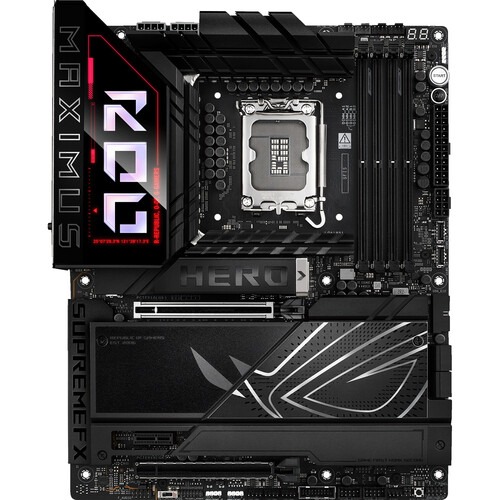

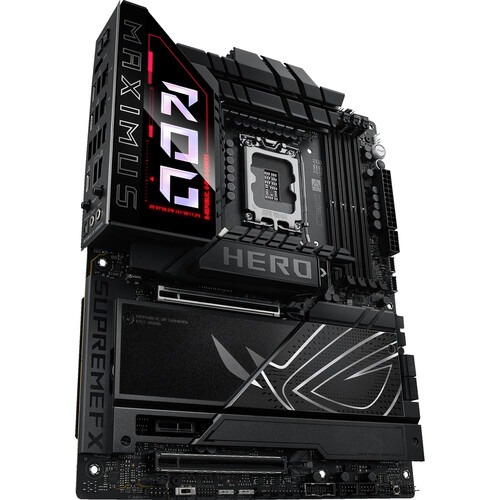

ASUS ROG Maximus Z890 Hero Intel® Z890 LGA 1851 ATX Motherboard, Advanced AI PC-Ready, 22+2+1+2 Stages, DDR5, WiFi 7, 3X PCIe® 5.0 M.2, Thunderbolt™ 4, USB Type-C®, AI Overclocking/Cooling/Networking
Feature
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 1851 Socket: Ready for Intel Core Ultra Processors (series 2)
- Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
- Exclusive Overclocking & Memory Technologies: NitroPath DRAM Technology, NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
- Robust Power Solution: 22(110A)+2(90A)+1(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
- Latest M.2 Support: Three onboard PCIe 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 Power Boosts, all with substantial cooling solutions
- Abundant Connectivity: Dual Thunderbolt 4 USB Type-C ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet
- DIY Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Install up to three M.2 PCIe 5.0 SSDs alongside three PCIe 4.0 drives to store your games library, applications, and multimedia files. Four SATA III connectors area also available. The four DDR5 DIMM slots support up to 192GB. With one PCIe 5.0 x16 slot, a PCIe 4.0 x16 (x4 mode) slot, and PCIe 4.0 x1 slot, you can install powerful graphics cards and other compatible expansions.

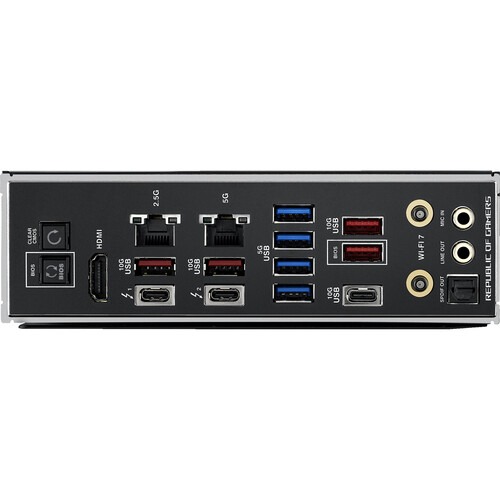

ASUS ROG MAXIMUS Z890 HERO rear panel features two Thunderbolt 4 ports that can transfer up to 40 Gb/s with compatible devices or connect a USB-C compatible 8K displays. There is also one 10 Gb/s USB-C and four USB-A ports and four USB-A 3.2 Gen 1 ports that work with 5 Gb/s compatible devices. Internal headers allow you to connect front panel 20 Gb/s and 10 Gb/s USB-C ports. Built-in Wi-Fi 7 (802.11be) support and a 5 Gb/s Ethernet port provide you with connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 is required to take advantage of all this motherboard’s features.
Performance
AI Equipped
Leveraging Artificial Intelligence, the ASUS ROG MAXIMUS Z890 HERO can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without compromising thermal capabilities. You can ask the ASUS AI Adviser questions about optimizing your system’s performance and finding out more about its features.
Easy Overclocking
ASUS ROG MAXIMUS Z890 HERO differential-sensing circuit and delicate IC simplify overclocking and tuning by allowing you to accurately track voltages.
Enhanced Power Solution
Equipped with 22(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II connectors, MicroFine alloy chokes, and durable capacitors, this motherboard delivers stable power throughout the entire motherboard, maintaining electrical volume whether you are performing simple tasks or operating at full power during resource-demanding processes.
M.2 PowerBoost
ROG M.2 PowerBoost technology helps ensure that every onboard M.2 device operates simultaneously at optimal performance.
DIMM Fit
ASUS ROG MAXIMUS Z890 HERO ASUS-exclusive BIOS feature analyzes individual memory modules to optimize performance and pinpoint potential issues.
DIMM Flex
ASUS ROG MAXIMUS Z890 HERO DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
Comprehensive Cooling
ASUS ROG MAXIMUS Z890 HERO VRM heat sink works with highly conductive thermal pads and a chipset heat sink to efficiently dissipate heat. M.2 heat sinks and dedicated backplates help to ensure optimal SSD performance during sustained workloads.
Gaming Audio
SupremeFX 7.1 Surround Sound
ROG SupremeFX audio technology delivers pristine audio with a 110 dB signal-to-noise ratio on the line-in jack. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS ES9219 Quad DAC capable of reaching -114dB THD+N on the front-panel output. ASUS ROG MAXIMUS Z890 HERO combined system allows for end-to-end 32-bit, 384 kHz resolution playback that conveys the dynamics of each audio track.
Dolby Atmos
With the addition of height channels, Dolby Atmos surround sound creates an immersive audio experiences by providing the sensation of sound coming from above, below, and around the listener.
DIY Friendly
Easy M.2 Installation
ASUS M.2 Q-Release, Q-Slide and Q-Latch technologies allow you to quickly install or remove M.2 SSDs without the need for tools or screws.
PCIe Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
Q-Antenna
With Q-Antenna, attaching a Wi-Fi antenna to your PC is a snap. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place.
Q-LED
ASUS ROG MAXIMUS Z890 HERO on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components are functioning normally during startup. It can also alert them when memory modules have not been properly installed.
Troubleshooting
ASUS ROG MAXIMUS Z890 HERO built-in start button and Q-Code LEDs help you quickly identify problems.
Clear CMOS and BIOS FlashBack
Clear the CMOS at the touch of a button to help remove data corruption from the chip. BIOS FlashBack makes BIOS updates easy. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack port, and press a button. No CPU or memory needed.
Software Utilities
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
TurboV Core
Accessed via ASUS DriverHub, TurboV Core delivers intuitive CPU tuning that can unleash performance for overclocking enthusiasts. No need to enter the BIOS. You can modify settings directly from within Windows and apply them without needing to reboot.
Thunderbolt Share
ASUS ROG MAXIMUS Z890 HERO enhance your multitasking by connecting up to two Thunderbolt compatible computers together. Seamlessly share screens, keyboards, mice, storage and files between them with the speed of Thunderbolt technology.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
HWINFO
ASUS ROG MAXIMUS Z890 HERO comprehensive diagnostic tool provides detailed information about hardware components and real-time system monitoring.
AIDA64 Extreme
ASUS ROG MAXIMUS Z890 HERO AIDA64 Extreme tool provides detailed information about the hardware components and software, performs benchmark tests, and helps prevent possible hardware issues. A 60-day trial subscription is included.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
Play in Style
Aura Sync
Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.
Addressable Gen 2 RGB headers
ASUS ROG MAXIMUS Z890 HERO three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.
Additional information
| Brands |
ASUS |
|---|---|
| color |
Black |
| Chipset |
Z890 |
| Socket |
LGA 1851 |
| Motherboard Size |
ATX |
| Memory Series |
DDR5 |
| Warranty |
3 Years |
| EAN / UPC Code |
4711387747223 |
Specifications
Specifications
| Model | ROG MAXIMUS Z890 HERO |
| CPU | Support Intel® Core™ Ultra Processors (Series 2) , LGA1851* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* | |
| Dual channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP) memory module | |
| Supports DIMM Flex | |
| NitroPath DRAM Technology | |
| DIMM FIT | |
| ASUS Enhanced Memory Profile III (AEMP III) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x HDMI™ port** |
| 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates | |
| ** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. | |
| *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. | |
| **** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. | |
| ***** VGA resolution support depends on processors’ or graphic cards’ resolution. | |
| ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. | |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2)* |
| 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)** | |
| Intel® Z890 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x1 slot | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. | |
| To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
| Storage | Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® Core™ Ultra Processors (Series 2) * | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| Intel® Z890 Chipset | |
| M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. | |
| * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 | |
| ** When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run x8 only. | |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| 1 x Realtek 5Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2×2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. | |
| For Windows 10, only Wi-Fi 6 is supported. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. | |
| USB | Rear USB (Total 11 ports) |
| 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) | |
| 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| Front USB (Total 10 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)** | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| * USB Type-C® power delivery output: max. 5V/3A | |
| ** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* |
| Impedance sense for front and rear headphone outputs | |
| Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 110 dB SNR recording input | |
| Supports up to 32-Bit/384 kHz playback on front panel” | |
| Audio Features | |
| SupremeFX Shielding Technology | |
| ESS® ES9219 QUAD DAC | |
| Gold-plated audio jacks | |
| Rear optical S/PDIF out port | |
| Premium audio capacitors | |
| * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. | |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® ports |
| 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 1 x HDMI™ port | |
| 1 x Wi-Fi module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 1 x Realtek 5Gb Ethernet port | |
| 2 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| 1 x W_PUMP+ headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connectors | |
| 1 x 8-pin PCIe Power connector | |
| Storage Related | |
| 6 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| 1 x SlimSAS connector | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C® ) | |
| 1 x USB 10Gps connector (supports USB Type-C® ) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Alteration PCIe mode switch | |
| 1 x FlexKey button | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x ReTry button | |
| 1 x Start button | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt™ (USB4®) header | |
| Special Features | Extreme OC Kit |
| FlexKey button | |
| ReTry button | |
| Start button | |
| Extreme Engine Digi+ | |
| 10K Black metallic capacitors | |
| MicroFine alloy choke | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| M.2 Q-Release | |
| M.2 Q-Slide | |
| Q-Release Slim (with PCIe SafeSlot) | |
| Q-Antenna | |
| Q-Code | |
| Q-Connector | |
| Q-Dashboard | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | |
| M.2 heatsink backplate | |
| M.2 heatsink | |
| Metal backplate | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| Clear CMOS button | |
| CPU Socket lever protector | |
| ProCool II | |
| Pre-mounted I/O shield | |
| SafeSlot | |
| SafeDIMM | |
| Aura Sync | |
| Addressable Gen 2 header(s) | |
| ROG M.2 PowerBoost | |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | |
| Support: up to 60W fast charging and USB Wattage Watcher* | |
| Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| Compatible with PD3.0 and PPS | |
| * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported. | |
| Software Features | ROG Exclusive Software |
| ROG CPU-Z | |
| Dolby Atmos | |
| Polymo Lighting II | |
| Internet Security (1-year full version) | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| AIDA64 Extreme (1 year full version) | |
| Aura Creator | |
| Aura Sync | |
| Xpert 4 (with AI Cooling II) | |
| GameFirst | |
| Power Saving | |
| Hwinfo | |
| ASUS AI Advisor | |
| ASUS DriverHub | |
| ASUS GlideX | |
| Thunderbolt™ Share | |
| USB Wattage Watcher | |
| TurboV Core | |
| Adobe Creative Cloud (Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| NPU Boost | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash | |
| ASUS UEFI BIOS EZ Mode | |
| ASUS MyHotkey | |
| FlexKey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |
| Accessories | Cables |
| 1 x ARGB RGB extension cable | |
| 4 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x DDR5 fan holder | |
| 1 x Thermal pad for M.2 22110 | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package | |
| 3 x M.2 Q-Slide packages | |
| 1 x ROG stickers | |
| 6 x M.2 rubber packages | |
| 1 x ROG thank you card | |
| 1 x ROG Bottle Opener | |
| Installation Media | |
| 1 x USB drive with utilities and drivers | |
| Documentation | |
| 1 x Quick start guide | |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Related Product
MSI X870 GAMING PLUS Wi-Fi Motherboard
Original price was: ₹47,999.00.₹24,000.00Current price is: ₹24,000.00. (Inclusive of GST)
Gigabyte X870 Gaming WIFI6 Motherboard
₹21,299.00 (Inclusive of GST)
ASRock X870E Taichi Lite DDR5 EATX Motherboard
₹43,899.00 (Inclusive of GST)
MSI MPG X870E Edge TI WIFI AM5 ATX Motherboard
₹37,899.00 (Inclusive of GST)
Gigabyte X870E Aorus Pro AM5 ATX Motherboard
₹35,295.00 (Inclusive of GST)
ASUS ROG CROSSHAIR X870E HERO Motherboard
₹65,899.00 (Inclusive of GST)
Gigabyte X870E AORUS MASTER AM5 ATX DDR5 Motherboard
₹54,399.00 (Inclusive of GST)
Reviews
Clear filtersThere are no reviews yet.
