ASUS ROG MAXIMUS Z890 HERO Intel Z890 Chipset Motherboard
₹105,000.00 (Inclusive of GST)
ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
₹120,000.00 (Inclusive of GST)
ASUS ROG MAXIMUS Z890 HERO BTF LGA 1851 ATX Motherboard
₹118,000.00 (Inclusive of GST)
56
People watching this product now!
17
Items sold in last 12 hours
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
Description
The ASUS ROG MAXIMUS Z890 HERO BTF features hidden connectors for motherboard power, graphics card power, USB ports and fan cables, enabling an ultra-clean build for your Intel® Core™ Ultra (Series 2) rig. Like the standard ASUS ROG MAXIMUS Z890 HERO BTF, it also boasts ASUS-exclusive AI-enhanced tuning, DIY-friendly innovations, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology that enables advanced memory overclocking headroom and stability. Meanwhile, Polymo Lighting II elevates your overall system aesthetic.
Advanced BTF Design
With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.
GRAPHICS CARD HIGH-POWER SLOT
ASUS ROG MAXIMUS Z890 HERO BTF graphics card high-power slot stands ready to supply all the wattage that a BTF graphics card needs. This special design can deliver up to 600 watts through the motherboard itself, eliminating the need for visible 8-pin or 16-pin power cables on the front.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
NPU BOOST
ASUS ROG MAXIMUS Z890 HERO BTF integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Maximus Z890 Hero BTF*.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
M.2 SLOTS WITHROG M.2 POWERBOOST
ASUS ROG MAXIMUS Z890 HERO BTF features ROG M.2 PowerBoost, which enables all M.2 devices to operate simultaneously at optimal performance.
PCIE 5.0 EXPANSION SLOT
ASUS ROG MAXIMUS Z890 HERO BTF primary PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim fully supports next-gen graphics cards.
BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
Additional information
| Brands |
ASUS |
|---|---|
| Chipset |
Z890 |
| color |
Black |
| Motherboard Series |
Asus ROG |
| Motherboard Size |
E-ATX |
| Memory Series |
DDR5 |
| Platform |
INTEL |
| Socket |
LGA 1851 |
| Warranty |
3 Years |
| EAN / UPC Code |
4711387847602 |
Specifications
Specifications
| Component | Details |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) on LGA1851 socket. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0. |
| Chipset | Intel® Z890 Chipset. |
| Memory | 4 x DIMM slots, max. 256GB, DDR5. Supports up to 9200+MT/s (OC). Dual-channel architecture. |
| Graphics | 1 x HDMI™ port (max 8K@60Hz with DSC). 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) supporting DisplayPort. Graphics vary by CPU. |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU), and 1 x PCIe 4.0 x4 slot, 1 x PCIe 4.0 x1 slot (from Chipset). Note: PCIe 5.0 x16 slot runs at x8 mode when certain M.2 slots are enabled. |
| Storage | 6 x M.2 slots (4 x from CPU, 2 x from Chipset) and 4 x SATA 6Gb/s ports. Supports PCIe 5.0 x4 and PCIe 4.0 x4 modes for M.2. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet and 1 x Realtek 5Gb Ethernet. |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) with 2×2 antenna, supporting 2.4/5/6GHz bands. Bluetooth® v5.4. |
| USB | Rear: 2 x Thunderbolt™ 4 (Type-C), 5 x USB 10Gbps (4 x Type-A, 1 x Type-C), 4 x USB 5Gbps (Type-A). Front: 1 x USB 20Gbps (Type-C with up to 60W PD/QC4+), 1 x USB 10Gbps (Type-C), 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports). |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 with ESS® ES9219 QUAD DAC. Supports impedance sense and spatial audio via front panel. |

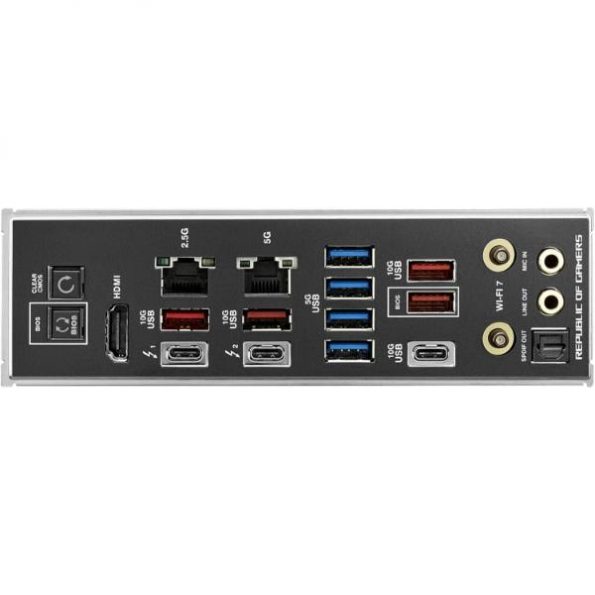

| Back Panel I/O | 2 x Thunderbolt™ 4 (USB Type-C®), 5 x USB 10Gbps, 4 x USB 5Gbps, 1 x HDMI™, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet, 1 x Realtek 5Gb Ethernet, audio jacks, S/PDIF out, BIOS FlashBack™, Clear CMOS button. |
| Internal I/O | Numerous headers for fans, power, M.2 slots, SATA, USB, and miscellaneous features like Addressable Gen 2 headers and a Start button. |
| Special Features | Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design (M.2 Q-Latch, Q-Code, Q-LED, etc.), ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, ROG M.2 PowerBoost. |
| Software Features | ROG Exclusive Software (CPU-Z, Dolby Atmos), ASUS Exclusive Software (Armoury Crate with AIDA64, Aura Creator, etc.), ASUS AI Advisor, Thunderbolt™ Share, and more. |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS. |
| Operating System | Windows 11 (22H2 & later). |
| Form Factor | ATX Form Factor (12 inch x 9.6 inch). |
