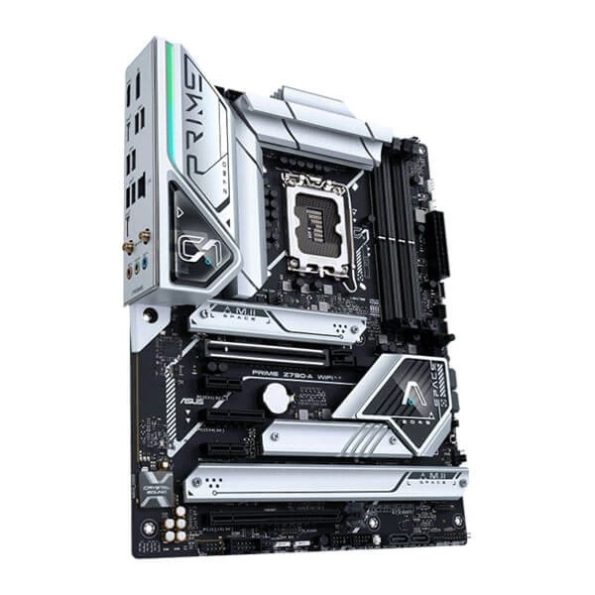

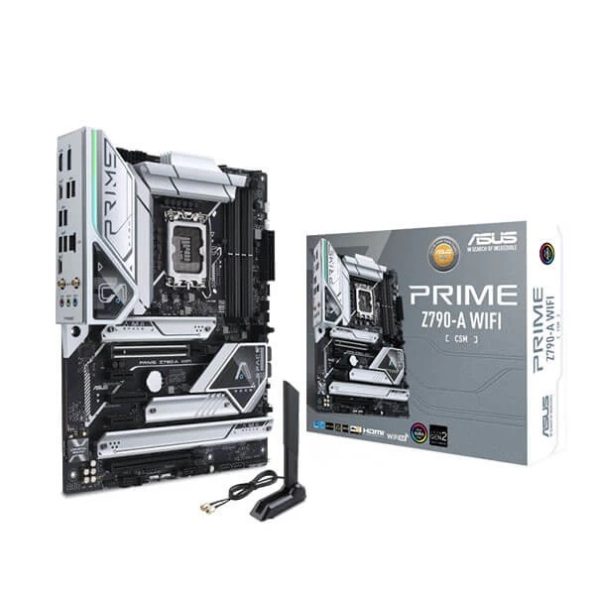

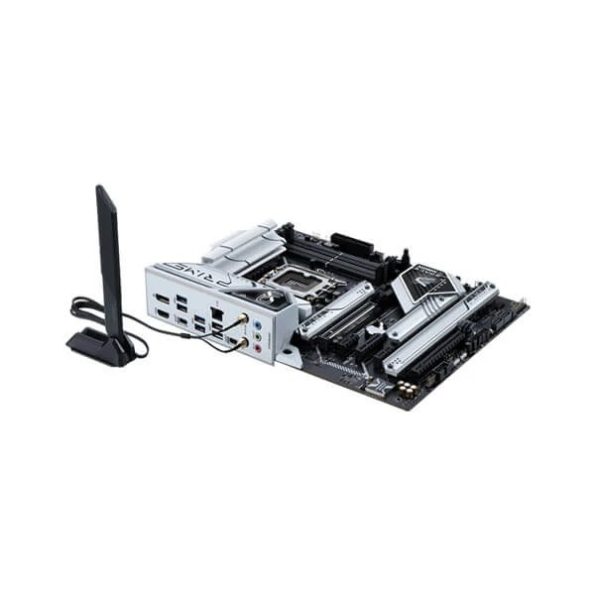

Asus Prime Z790-A WIFI CSM Motherboard Supports Intel 12th, 13th & 14th Gen Processors

AI Cooling ll

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

COOLING

Asus Prime Z790-A WIFI CSM Motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsinks

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.

Removable captive screws reduce risk of drops or loss during heatsink removal.

VRM Heatsinks and Thermal Pads

Asus Prime Z790-A WIFI CSM Motherboard extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel processors. The Asus Prime Z790-A WIFI CSM Motherboard is geared to cater to the demands of these high-core-count CPUs.

1. ProCool Connectors

Proprietary connectors augment the motherboard’s link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

2. 14 + 1 Teamed Power Stages

14 + 1 power stages combine high-side and low-side MOSFETS and drivers into packages rated for 50 amperes each, delivering power, efficiency, stability and performance to latest Intel processors.

AEMP II for Ultimate DDR5 Performance

Asus Prime Z790-A WIFI CSM Motherboard Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

Three M.2 Slots (up to 64 Gbps)

Asus Prime Z790-A WIFI CSM Motherboard offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

*Actual transmission speeds will be lower than the theoretical maximum speed.

PCIe 5.0 Slot

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.

Thunderbolt 4 (USB4 compliant)

Asus Prime Z790-A WIFI CSM Motherboard features USB4 support via a Thunderbolt (USB4) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

WiFi 6E

Asus Prime Z790-A WIFI CSM Motherboard Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
