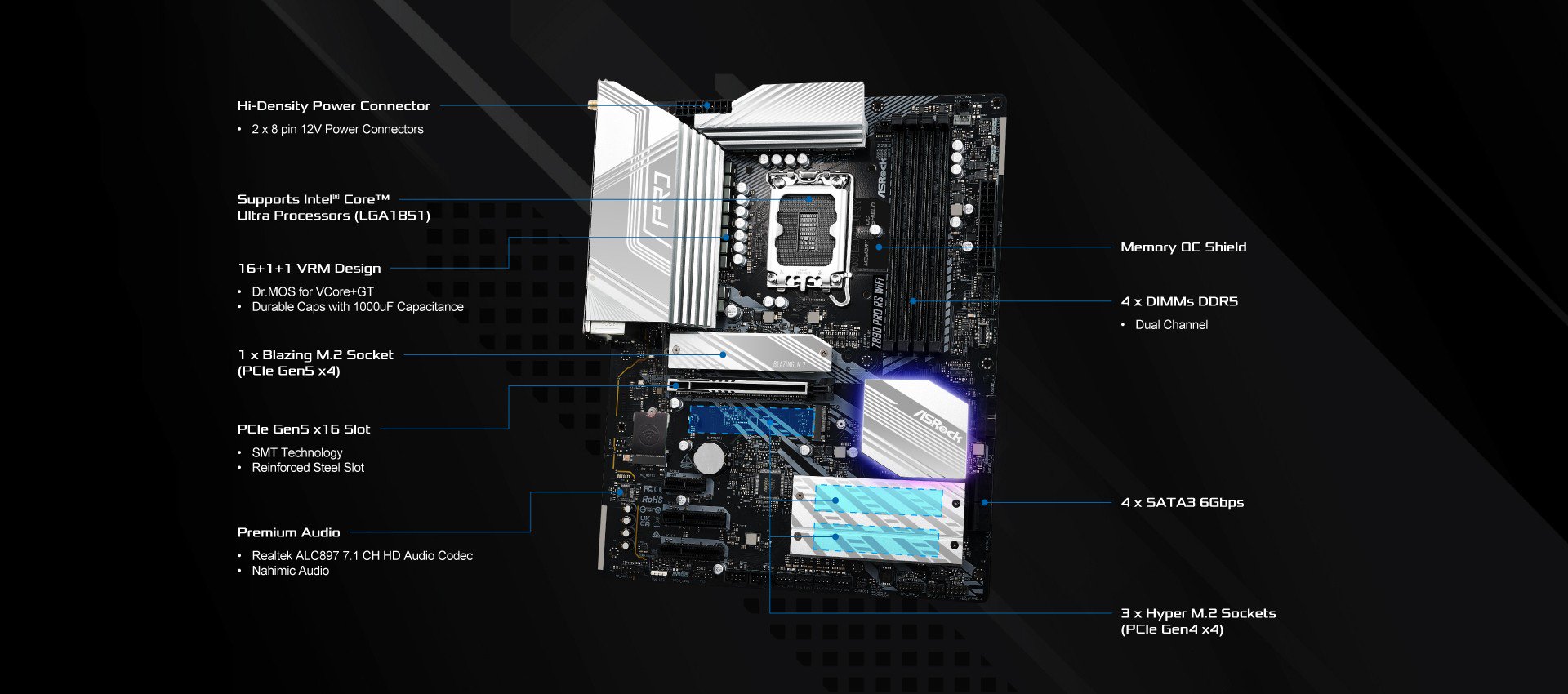

ASROCK Z890 Pro RS WIFI DDR5 LGA 1851 Intel Z890 SATA 6Gb/s ATX Motherboard

ASRock Z890 Pro RS WiFi 6E Intel Core Ultra LGA1851 RL-ILM ATX Motherboard DDR5 8666 MHz 256 GB Thunderbolt M.2

Feature

• ASRock Supports Intel^® Core™ Ultra Processors (Series 2)(LGA1851)
• 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
• 4 x DDR5 DIMMs
  Supports Dual Channel, up to 9066+ (OC)
• 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
• Graphics Output Options: 1 HDMI, 1 DisplayPort,
• 2 Thunderbolt™ 4 Type-C
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3
  1 Blazing M.2 (PCIe Gen5 x4)
  2 Hyper M.2 (PCIe Gen4 x4)
  1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
• 2 Thunderbolt™ 4 Type-C (Rear)
  1 USB 3.2 Gen2x2 Type-C (Front),
  1 USB 3.2 Gen2 Type-A (Rear),
  6 USB 3.2 Gen1 (2 Rear, 4 Front),
  8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11axe Wi-Fi 6E + Bluetooth
• Supports BIOS Flashback, Memory OC Shield, M.2 Bottom Heatsink

Optimized VRM Design

ASROCK Z890 Pro RS WIFI Durable Cap with 1000uF Capacitance

ASROCK Z890 Pro RS WIFI The durable capacitors with 1000uF capacitance offers several benefits:

●Higher Capacitance: ASROCK Z890 Pro RS WIFI Greater charge storage for better support under high loads.
●Lower Ripple: ASROCK Z890 Pro RS WIFI Reduced power output fluctuations, improving quality.
●More Stable Output Current: ASROCK Z890 Pro RS WIFI Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: ASROCK Z890 Pro RS WIFI Increased reliability and consistent performance.

Dr. MOS

ASROCK Z890 Pro RS WIFI Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Hi-Density Power Connector

ASROCK Z890 Pro RS WIFI CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.

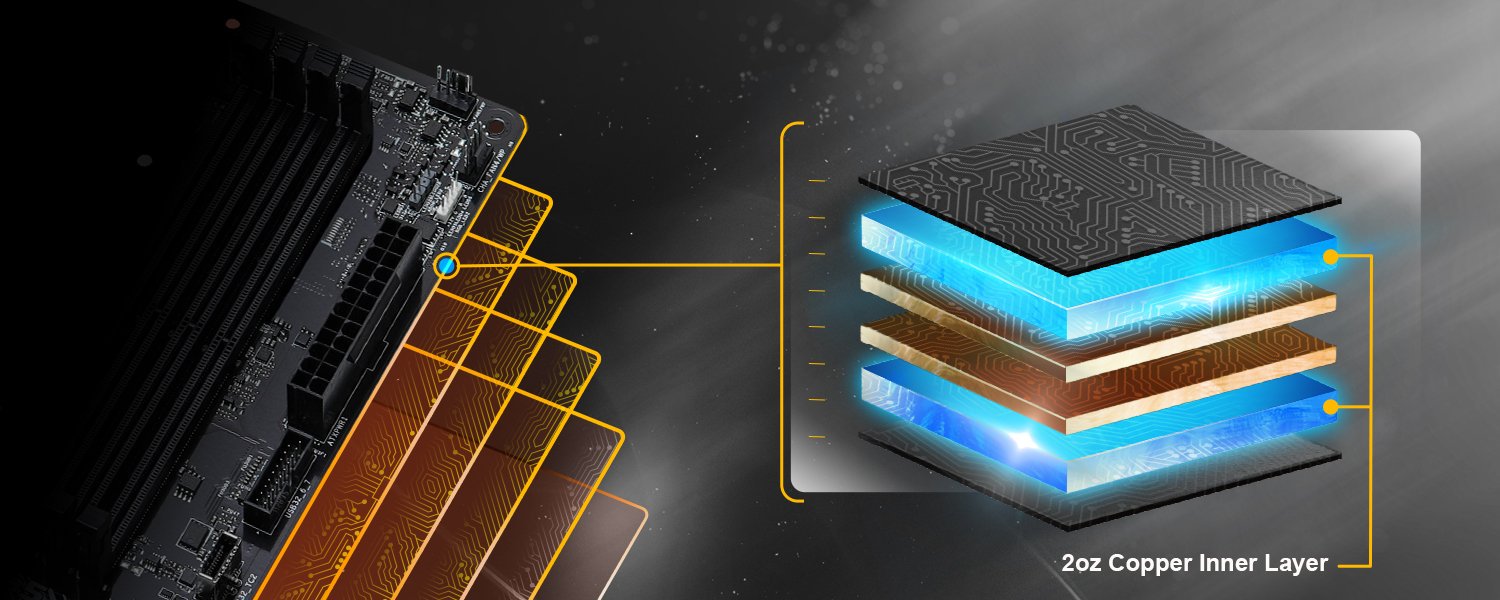

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

PCIe Gen5 Blazing M.2

The Blazing M.2 of ASROCK Z890 Pro RS WIFI DDR5 Intel Motherboard accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

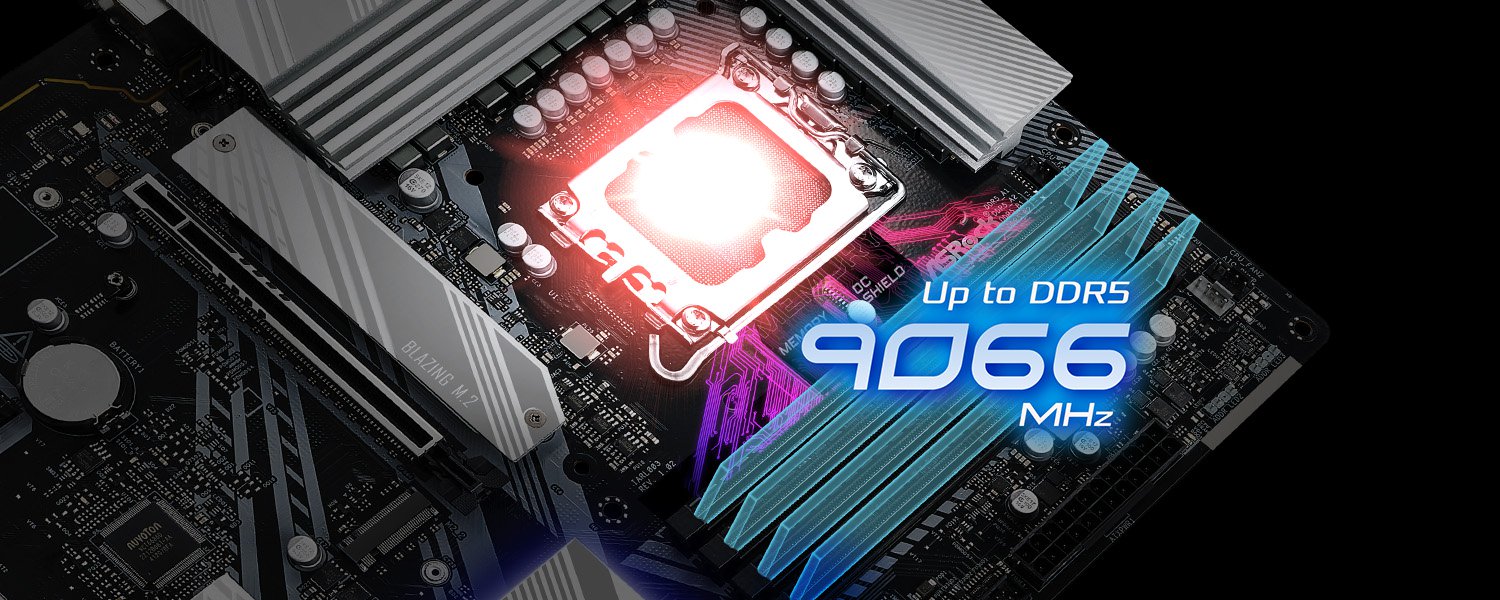

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Memory OC Shield

ASRock’s exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.

DIY Friendly Design

The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.

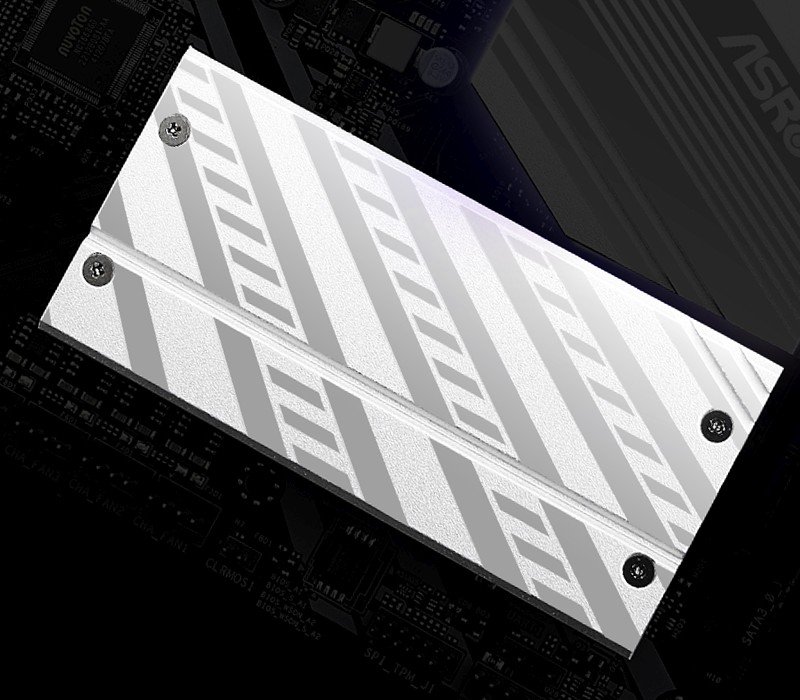

Enlarged M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance

Intelligent Cooling Design

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks

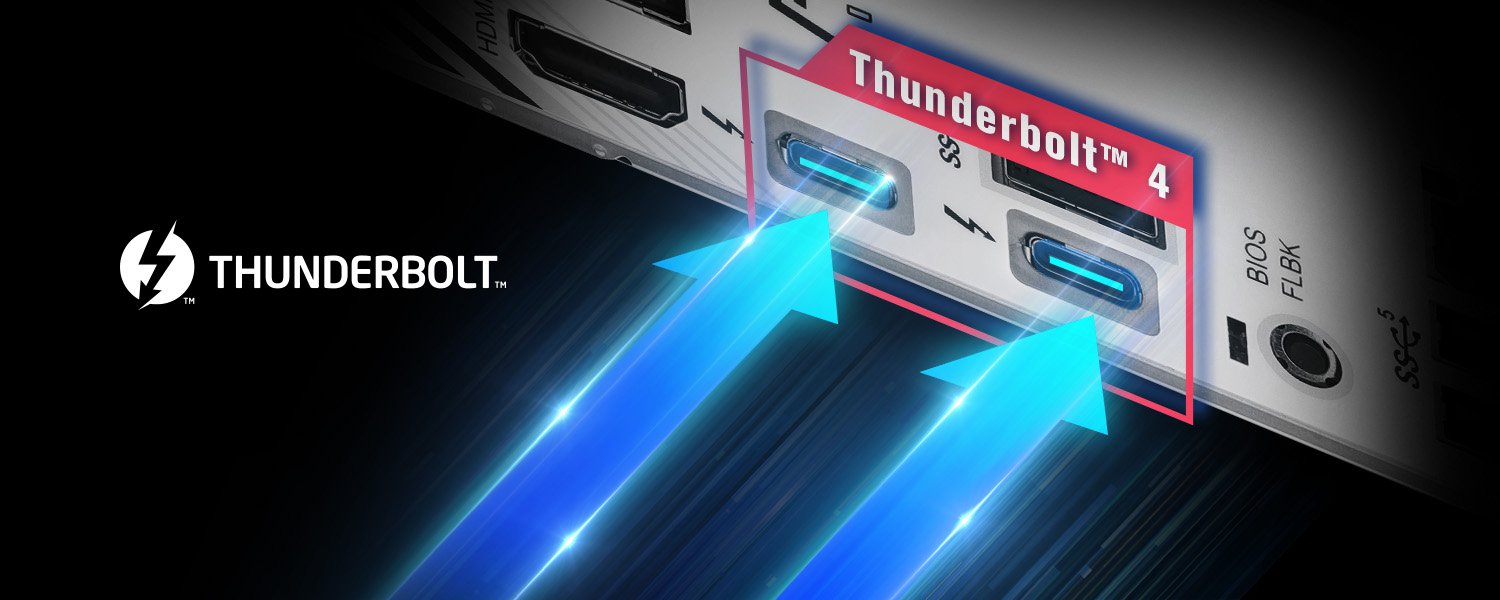

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
