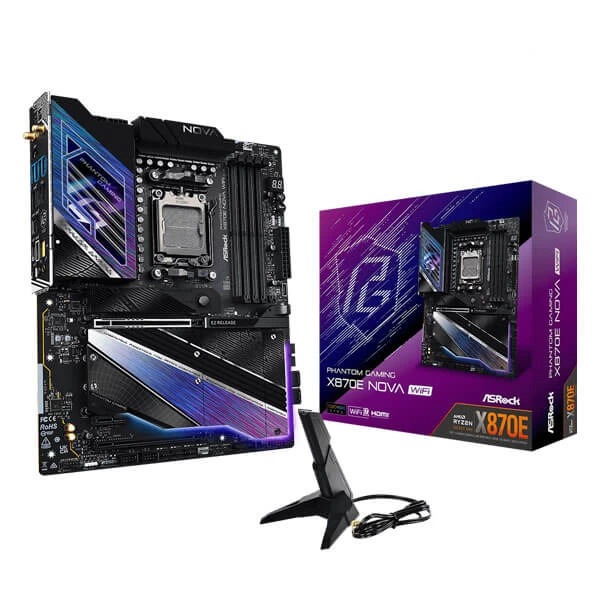

ASRock Phantom Gaming X870E Nova WiFi AM5 ATX Motherboard

Feature

• Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
• 20+2+1 Phase Power Design, 110A SPS for VCore+SOC
• 4 x DDR5 DIMMs Supports Dual Channel, up to 8200+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 USB4 Type-C, 1 HDMI
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
• 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 5 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 (3 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front)
• 5Gbps LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance.

20+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

PREMIUM PCB SOLUTION

Server Grade Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

<img class="image desktop lazy entered loading" src="data:;base64,” alt=”Server Grade Low Loss PCB” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/ServerGradeLowLossPCB-X870E%20Nova%20WiFi.jpg” />

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

<img class="image desktop lazy entered loading" src="data:;base64,” alt=”DDR5 XMP & EXPO Support” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/DDR5EXPOXMP-X870E%20Nova%20WiFi.jpg” />

High Speed M.2 Solution

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Enlarged M.2 Heatsink

XXL M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Intelligent Cooling Design

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Advanced Thermal Design

Equipped with XXL aluminum heatsinks that cover the VRM, PCH, and M.2 areas, providing enhanced heat dissipation for stable operation and optimal performance.

<img class="image desktop lazy entered loading" src="data:;base64,” alt=”Advanced Thermal Design” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/CompositeHeatsink-X870E%20Nova%20WiFi.jpg” />

Wi-Fi 7 802.11be

Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.

Enhanced USB4 Type-C

USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.

<img class="image desktop lazy entered loading exited" src="data:;base64,” alt=”Enhanced USB4 Type-C” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/EnhancedUSB4TypeC-X870E%20Nova%20WiFi.jpg” />

Optimized 5 Gb/s LAN

ASRock’s 5Gb/s LAN Connector features an exclusive, patent-pending design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.

<img class="image desktop lazy entered loading exited" src="data:;base64,” alt=”Realtek 5G LAN” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/Realtek5GLAN.jpg” />

More than USB Transfer Speed

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

<img class="image desktop lazy entered loading exited" src="data:;base64,” alt=”Front Panel USB 3.2 Gen2x2 Type-C Header” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/FrontUSB3.2Gen2x2TypeC-Refresh.jpg” />

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

<img class="image desktop lazy entered loading exited" src="data:;base64,” alt=”Audio That Matters” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/NahimicAudio-Refresh.jpg” />

Stylish Design

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

<img class="image desktop sycColor lazy entered loading exited" src="data:;base64,” alt=”POLYCHROME RGB” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/POLYRGBLED-X870E%20Nova%20WiFi.jpg” />

Deluxe Accessories

ARGB Splitter Cable

The ARGB Splitter Cable enables easy management of multiple ARGB devices through a single controller. With its splitting capability, it streamlines your lighting setup for a unified and dynamic aesthetic.

<img class="image desktop lazy entered loading exited" src="data:;base64,” alt=”ARGB Splitter Cable” data-ll-status=”entered” data-lazy-src=”https://pg.asrock.com/mb/features/ARGBSplitter-Refresh.jpg” />

Reinforced Steel Slot
[PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
