ASRock B760M PG Sonic WIFI Motherboard

ASRock B760M PG Sonic WIFI Motherboard

Feature

• Supports 14th Gen, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• 12+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
• Graphics Output Options: HDMI, DisplayPort, eDP
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
• 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front)-1 USB 3.2 Gen2 Type-A (Rear)-6 USB 3.2 Gen1 (4 Rear, 2 Front)-6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN,
• 802.11ax (WiFi 6E) + Bluetooth
• Supports ASRock Auto Driver Installer

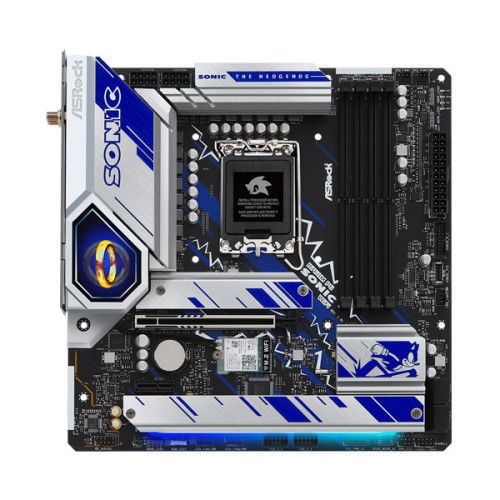

ASRock B760M PG SONIC WiFi is built using a 6 Layer PCB for excellent thermal control, better signal routing and extending DDR5 overclocking potential. 12+1+1 Dr.MOS CPU power phases ensures Velocity Boost states are always stable, maximizing potential out-the-box CPU performance. Generous heatsink coverage for VRM, M.2 SSDs and PCH is adorned in the SONIC design, with fun, eye-catching graphics.

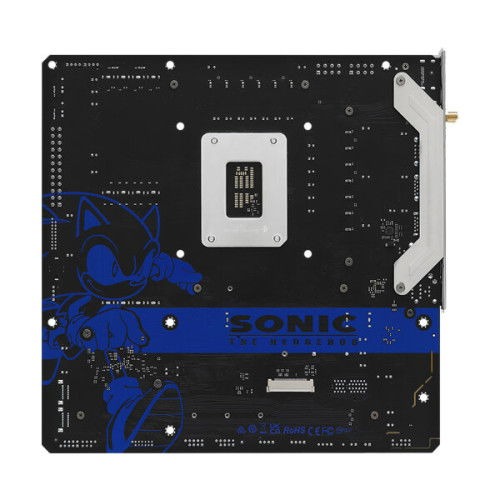

ASRock B760M PG SONIC WiFi, an officially licensed motherboard featuring SEGA’s Sonic the Hedgehog. A 16-bit spinning ring emblazons the rear IO cover, while on the rear side you’ll even catch a glimpse of Sonic mid-run. The ASRock motherboard is co-launched to celebrate the release of SEGA’s new Sonic Frontiers game.Designed to bring back epic memories of catching rings in Green Hill Zone, the motherboard echoes Sonic’s lightning speed with its fast blue and silver shards and Sonic silhouette.

Effectiveness and Uniqueness

Provides stability and unique features enhancing effectiveness.

12+1+1 Phase Design With Dr.MOS

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers as well.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for gaming.
